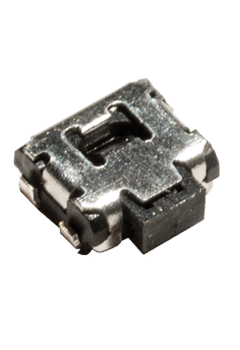

C&K COMPONENTS Y97NS27B5ABFP Microminiature SMT Switch
The C&K PTS 840 series microminiature SMT side-actuated switch offers a compact solution for various applications, including nomad devices, remote controls, and personal health diagnostics. Its small footprint and front PIP leads provide excellent shear resistance, while the ESD pin option enhances protection against electrostatic discharge. The switch is suitable for infrared reflow soldering and is available in tape and reel packaging for automated assembly. The easy build-a-switch concept allows for customization to meet specific design requirements.
C&K COMPONENTS Y97NS27B5ABFP Microminiature SMT Switch Specifications:
- maximum_voltage: 12 VDC
- maximum_current_dc: 50 mA
- dielectric_strength: 250 VA C (1mn)
- contact_resistance: ≤ 500 mΩ
- insulation_resistance: ≥ 100 MΩ
- bounce_time: ≤ 10 ms
- contact_arrangement: 1 make contact = SPST N.O.
- terminals: G and front PIP types for SMT
- travel: 0.2mm + 0.2mm / -0.1 mm
- life: 100,000 cycles
- operating_temperature: -40˚C to 85˚C
- soldering: Infrared Reflow Soldering in accordance with IEC61760-1
- packaging: In reels of 3,500 pieces Dimensions of reels according to EIA 481B External diameter 330 mm
- footprint: 3.5 x 3.55 mm
