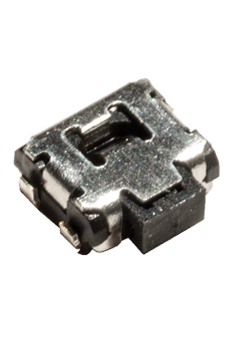

C&K COMPONENTS Y97NS28B2ABFP Microminiature SMT Switch
The C&K PTS 840 series microminiature SMT side-actuated switch is designed for applications demanding a small footprint and reliable performance. Its compact size, combined with features like ESD protection and front PIP lead options, makes it suitable for nomad devices, remote controls, and personal health diagnostics. The switch offers momentary action with a travel of 0.2mm and a life of 100,000 cycles. Available with various actuation forces and lead configurations to meet specific design requirements. Consult C&K Components for custom switch specifications.
C&K COMPONENTS Y97NS28B2ABFP Microminiature SMT Switch Specifications:
- maximum_voltage: 12 VDC
- maximum_current_dc: 50 mA
- dielectric_strength: 250 VA C (1mn)
- contact_resistance: ≤ 500 mΩ
- insulation_resistance: ≥ 100 MΩ
- bounce_time: ≤ 10 ms
- function: momentary action
- contact_arrangement: 1 make contact = SPST N.O.
- terminals: G and front PIP types for SMT
- travel: 0.2mm + 0.2mm / -0.1 mm
- life: 100,000 cycles
- operating_temperature: -40˚C to 85˚C
- soldering: Infrared Reflow Soldering in accordance with IEC61760-1
- packaging: In reels of 3,500 pieces, External diameter 330 mm
