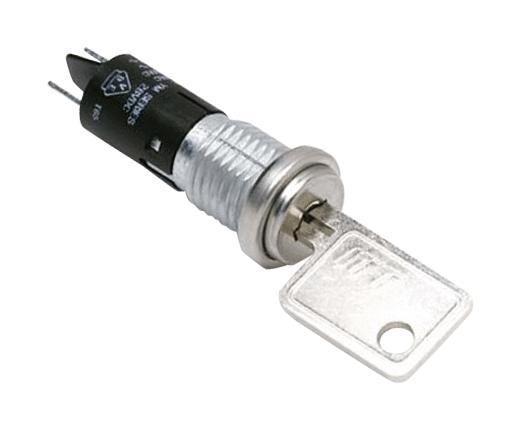

C&K COMPONENTS YM06132C2WCNQ Miniature Locking Switch
The YM Series 4 Tumbler Miniature Switchlocks are versatile locking switches designed for industrial and equipment applications. Crafted from zinc alloy with stainless steel or black facing options, these switchlocks feature a 90° indexing mechanism with single bitted tumbler locks and integral detent. Available with silver or gold contact materials, they support various termination types including quick connect and wire lead. Rated for 4 AMPS at 125 V AC, these switchlocks ensure secure locking and reliable electrical performance for panels, machinery, and control systems, with dimensions suitable for panel mounting and compatibility with RoHS standards.
C&K COMPONENTS YM06132C2WCNQ Miniature Locking Switch Specifications:
- Contact Rating: 4 AMPS @ 125 V AC or 28 V DC; 2 AMPS @ 250 V AC (UL/CSA)
- Electrical Life: 10,000 cycles at full load
- Contact Resistance: Below 10 mΩ, initial @ 2-4 VDC, 100 mA
- Insulation Resistance: 10^9 Ω minimum
- Dielectric Strength: 1,000 Vrms minimum at sea level
- Indexing: 90°, 2 positions
- Materials: Lock - Zinc alloy with stainless steel or black facing; Keys - Nickel plated brass; Housing - Nylon UL 94V-2
- Contacts & Terminals: Copper, silver plated, or gold over nickel plated copper
- Mounting Nut: Brass, bright zinc plated, suitable for panel thickness up to 7.62 mm
- Operating Temp: -55°C to +105°C
- Standards: RoHS compliant, UL, CSA, VDE rated
- Dimensions: Panel hole diameter 0.72 inches (18 mm), overall size compatible with panel mounting, with standard nut
Buy the Ck Switches YM Series 4 Tumbler Miniature Locking Switch for Industrial Applications
Order the YM Series 4 Tumbler Miniature Locking Switchs online today to secure your control panels and machinery with proven durability and safety standards. These switches offer versatile locking options, rated for 4 Amps at 125 V AC, suitable for industrial equipment. Easy to install with panel mounting compatibility, they feature high electrical life and compliant materials. Whether for automation, control systems, or safety features, experience rapid delivery, trusted quality, and superior performance by purchasing online now.
Buy Ck Switches YM Series 4 Tumbler Locking Switchs now and ensure reliable locking and electrical performance for your industrial control needs.
