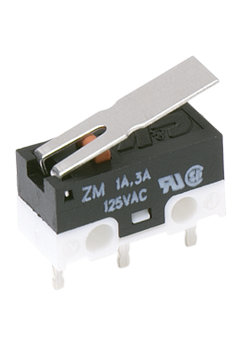

C&K COMPONENTS ZMCHM9T23L Subminiature Snap-acting Switch
This compact subminiature snap-acting switch offers reliable switching performance with a long electrical and mechanical life, ideal for PCB detection, communication devices, and security systems. Constructed with nylon and silver alloy contacts, it supports a wide operating temperature range from -30°C to 85°C and features various terminal options. Its high insulation resistance and dielectric strength ensure safety and durability in electronic and control applications. The switch provides precise actuation with operating forces of 150 grams for Cu and 90 grams for CH, making it suitable for space-constrained environments.
C&K COMPONENTS ZMCHM9T23L Subminiature Snap-acting Switch Specifications:
- Contact Rating: F7: 3A @ 125 VAC, M9: 0.2A @ 60 VDC
- Electrical Life: 10,000 Cycles @ 3A
- Insulation Resistance: 100 M ohm min
- Dielectric Strength: 1000 Vrms
- Operating Temperature: -30°C to 85°C
- Operating Force: Cu: 150 grams, CH: 90 grams
- Materials: Cover, Actuator Button, and Case made of Nylon 6/6; Spring made of SUS; Movable Blade and Contacts of Silver alloy or gold plated
- Actuator options include leaf and simulated roller with specific force requirements
- Terminations include PC Thru-hole, with and without retention features
- Dimensions vary but support precise compact mounting for electronic devices
Buy the Buy Industry-Standard Subminiature Snap-acting Switch Part Number ZMCHM9T23L Online
Purchase the reliable subminiature switch ZMCHM9T23L online today. This compact switch offers long electrical life, high insulation resistance, and versatile terminal options, making it perfect for PCB detection, communication devices, and security systems. Built with durable materials like nylon and silver alloy contacts, it operates across a wide temperature range from -30°C to 85°C. Perfect for tight spaces, it provides consistent actuation force and electrical performance for efficient control and switching in electronic applications.
Order your Industry-Standard Series ZMCHM9T23L compact switch today and ensure dependable operation in space-constrained electronic projects.
Frequently Asked Questions
Where can I buy C&K COMPONENTS ZMCHM9T23L?
You can click on the BUY or RFQ button to purchase ZMCHM9T23L from an authorized C&K COMPONENTS distributor.
How do I troubleshoot issues or seek technical support for part ZMCHM9T23L?
You can download the ZMCHM9T23L datasheet or visit the C&K COMPONENTS website for support.
Who is the manufacturer of ZMCHM9T23L?
C&K COMPONENTS
