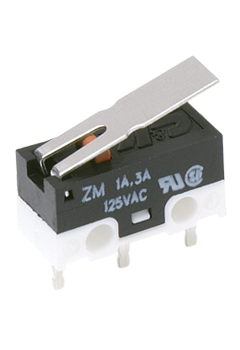

C&K COMPONENTS ZMCHM9T23R Subminiature Snap Switch
This subminiature snap-acting switch offers reliable and precise switching performance in compact electronic and control applications. It features a quick actuation mechanism, long electrical and mechanical life, and various terminal and actuator options. Suitable for PCB detection, communication devices, testing equipment, and security systems, it operates between -30°C and 85°C. Made with durable materials including nylon covers and SUS springs, it supports a range of electrical ratings up to 3A at 125 VAC and 0.2A at 60 VDC, ensuring dependable functionality in space-constrained environments.
C&K COMPONENTS ZMCHM9T23R Subminiature Snap Switch Specifications:
- CONTACT RATING: F7: 3A @ 125 VAC, M9: 0.2A @ 60 VDC
- ELECTRICAL LIFE: 10,000 Cycles @ 3A
- INSULATION RESISTANCE: 100 M ohm min.
- DIELECTRIC STRENGTH: 1000 Vrms
- OPERATING TEMPERATURE: -30°C to 85°C
- OPERATING FORCE: Cu: 150 grams, CH: 90 grams
- Materials: Cover, actuator button, case: Nylon 6/6; spring: SUS; movable blade: BeCu; contacts: Silver alloy (gold plated option); terminals: Brass - Ag plated
- Dimensions: Dimensions vary with options, typical length approximately 15 mm, width approximately 6.8 mm, height approximately 4 mm
- Mounting: PC Thru-hole, with retention options available
- Certification: UL Listed, RoHS compliant
Buy the CK Components ZMCHM9T23R – Reliable Subminiature Switch for Industrial Applications
Enhance your electronic projects with the reliable and compact subminiature snap switch. Designed for precision and long life, it supports PCB detection, communication, and security systems. With a rated load up to 3A at 125 VAC and 0.2A at 60 VDC, its durable construction ensures dependable operation in space-constrained environments. Easy to install with PC Thru-hole terminals and various actuator options, this switch guarantees consistent performance over thousands of cycles, making it a valuable component for automation and control applications. Purchase online today for fast delivery and quality assurance.
Order your CK Components Series ZMCHM9T23R today and get dependable performance for your electronic control systems with space-saving design and durable materials.
Frequently Asked Questions
Where can I buy C&K COMPONENTS ZMCHM9T23R?
You can click on the BUY or RFQ button to purchase ZMCHM9T23R from an authorized C&K COMPONENTS distributor.
How do I troubleshoot issues or seek technical support for part ZMCHM9T23R?
You can download the ZMCHM9T23R datasheet or visit the C&K COMPONENTS website for support.
Who is the manufacturer of ZMCHM9T23R?
C&K COMPONENTS
