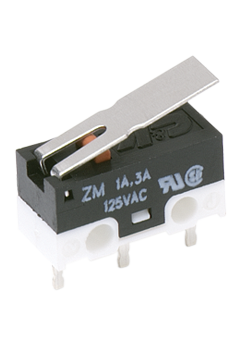

C&K COMPONENTS ZMCJM9L0R Subminiature Snap Switch
This subminiature snap-acting switch offers reliable and precise operation with a compact design ideal for space-limited applications. It features a snap-acting mechanism, long electrical and mechanical life, and versatile PCB terminals and actuators. Suitable for PCB detection, communication devices, testing equipment, security, alarm systems, and consumer electronics, it operates efficiently within a temperature range of -30°C to 85°C. Constructed with nylon, spring steel, and silver alloy contacts, it ensures durability and consistent switching performance in demanding environments.
C&K COMPONENTS ZMCJM9L0R Subminiature Snap Switch Specifications:
- Contact Rating: F7: 3A @ 125 VAC, M9: 0.2A @ 60 VDC
- Electrical Life: 10,000 Cycles @ 3A
- Insulation Resistance: 100 M ohm min.
- Dielectric Strength: 1000 Vrms
- Operating Temperature: -30°C to 85°C
- Operating Force: Cu: 150 grams, CH: 90 grams
- Material: Cover, Actuator Button, Case: Nylon 6/6
- Spring: SUS, Movable Blade: BeCu
- Contacts: Silver alloy (M9 optional gold plated)
- Terminals: Brass - Ag plated
- Actuator options: Leaf, Roller, Pin plunger
- Mounting: PC Thru-hole, with or without retention feature
- Dimensions: approximately 0.6 x 0.6 inch (15 mm x 15 mm), height varies with actuator
- RoHS compliant
Buy the CUI Devices ZM Series - Reliable Snap-acting Switch for Industrial Applications
Order the CUI Devices ZM Series subminiature snap-acting switch today for precise, reliable switching in compact spaces. Ideal for PCB detection, security, alarm, and consumer electronics, this switch offers long life, diverse actuator options, and RoHS compliance. Its quick response and durability make it perfect for demanding applications. Purchase online now and enhance your project’s reliability with this high-quality, space-saving, and versatile switch designed for a wide range of industrial and electronic systems.
Buy CUI Devices ZM Series snap-acting switch now and experience unmatched reliability and performance in your automation and control systems.
Frequently Asked Questions
Where can I buy C&K COMPONENTS ZMCJM9L0R?
You can click on the BUY or RFQ button to purchase ZMCJM9L0R from an authorized C&K COMPONENTS distributor.
How do I troubleshoot issues or seek technical support for part ZMCJM9L0R?
You can download the ZMCJM9L0R datasheet or visit the C&K COMPONENTS website for support.
Who is the manufacturer of ZMCJM9L0R?
C&K COMPONENTS
