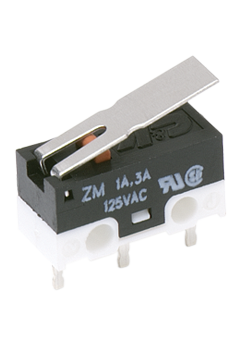

C&K COMPONENTS ZMCJM9P0K Snap-acting Switch
This compact subminiature snap-acting switch provides reliable circuit control with a quick response mechanism. Made from durable nylon and metal components, it offers long electrical and mechanical life, making it ideal for limited space applications in communication devices, testing equipment, and security systems. With a contact rating of up to 3A at 125 VAC and 0.2A at 60 VDC, it features high insulation resistance and dielectric strength. Suitable for PCB mounting with various actuator options, this switch is RoHS compliant and constructed for consistent performance in industrial and electronic applications.
C&K COMPONENTS ZMCJM9P0K Snap-acting Switch Specifications:
- Contact Rating: F7: 3A @ 125 VAC, M9: 0.2A @ 60 VDC
- Electrical Life: 10,000 Cycles @ 3A
- Insulation Resistance: 100 M ohm min.
- Dielectric Strength: 1000 Vrms
- Operating Temperature: -30°C to 85°C
- Operating Force: Cu: 150 grams, CH: 90 grams
- Material: Cover, actuator button, and case made from Nylon 6/6
- Spring: SUS (stainless steel)
- Movable Blade: BeCu (beryllium copper)
- Contacts: Silver alloy (gold plated for M9 option)
- Terminals: Brass - Ag plated
- Dimensions: Compact size suitable for PCB mounting with standard dimensions shown in the catalog
Buy the Innovative ZM Series – Reliable Snap-acting Switch for Industrial Applications
Purchase the ZM Series snap-acting switch online today for dependable performance in industrial and electronic applications. Designed for compact spaces, this switch offers long-lasting electrical and mechanical life, various actuator options, and RoHS compliance. Perfect for PCB detection, communication devices, testing, security systems, and consumer electronics, it ensures high insulation resistance and dielectric strength. Built with durable nylon and metal components, it guarantees precise control and reliable switching in demanding environments. Order now to benefit from quick delivery and excellent quality.
Get ZM Series subminiature snap switch today—built for precision, durability, and versatile PCB mounting in demanding electronic environments.
