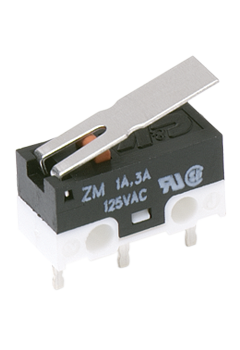

C&K COMPONENTS ZMCJM9T13L Subminiature Snap-acting Switch
This subminiature snap-acting switch delivers reliable toggle operations with a compact design, ideal for automation, control panels, and electronics. It features a robust nylon case and actuator, with options for different actuator styles including leaf and simulated roller. The switch offers a contact rating of 3A at 125 VAC or 0.2A at 60 VDC, with an electrical life cycle of 10,000 cycles. Operating temperature ranges from -30°C to 85°C, making it suitable for diverse industrial and electronic applications requiring precise, dependable switching in limited space.
C&K COMPONENTS ZMCJM9T13L Subminiature Snap-acting Switch Specifications:
- Contact Rating: 3A @ 125 VAC, 0.2A @ 60 VDC
- Electrical Life: 10,000 Cycles
- Insulation Resistance: 100 M ohm min.
- Dielectric Strength: 1000 Vrms
- Operating Temperature: -30°C to 85°C
- Operating Force: Cu 150 grams, CH 90 grams
- Materials: Cover, actuator button, and case made of Nylon 6/6; Spring made of SUS; Movable blade of BeCu; Contacts of Silver alloy or gold plated option
- Actuator options include: Pin plunger, leaf, and simulated roller
- Mounting: PC Thru-hole, with retention options
- RoHS compliant / compatible
Buy the ElectroSwitch Subminiature Snap-acting Switch – Reliable Switches for Industrial Applications
Purchase the ElectroSwitch ZM M9T13L subminiature snap-acting switch online now to benefit from high-quality, reliable switching in compact design. Perfect for automation, electronic devices, and control systems, this switch features a rugged nylon case and versatile actuator options. Rated for 3A at 125 VAC or 0.2A at 60 VDC, it ensures long-lasting performance with a cycle life of 10,000. Easily installable via PC Thru-hole mounting, it meets RoHS standards and is suitable for demanding industrial and consumer electronic use. Add this dependable switch to your project today!
Order your ElectroSwitch Series ZM M9T13L subminiature snap-acting switch today and ensure precise, dependable switching performance even in space-constrained environments.
Frequently Asked Questions
Where can I buy C&K COMPONENTS ZMCJM9T13L?
You can click on the BUY or RFQ button to purchase ZMCJM9T13L from an authorized C&K COMPONENTS distributor.
How do I troubleshoot issues or seek technical support for part ZMCJM9T13L?
You can download the ZMCJM9T13L datasheet or visit the C&K COMPONENTS website for support.
Who is the manufacturer of ZMCJM9T13L?
C&K COMPONENTS
