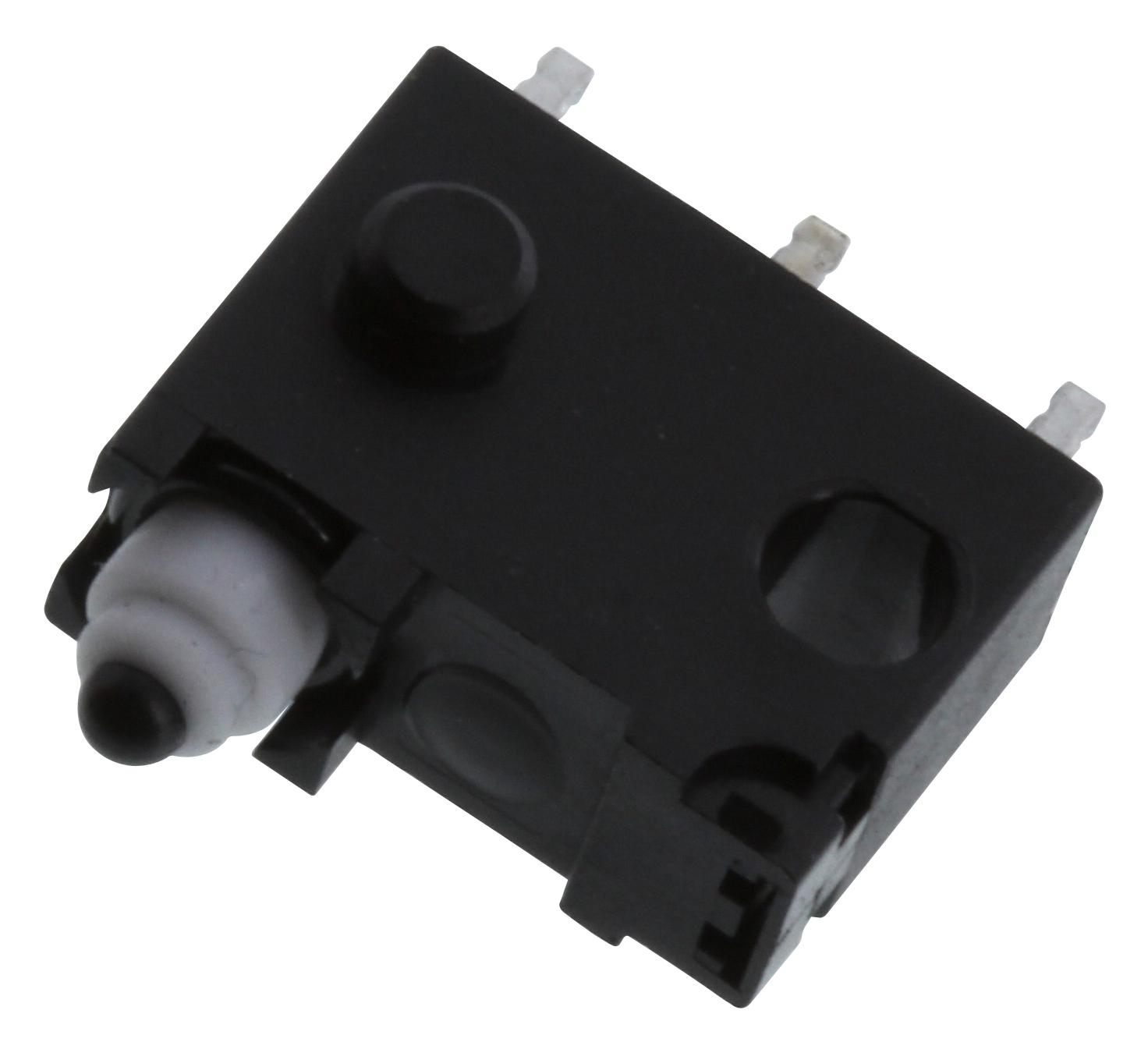

C&K COMPONENTS ZMW00AP00PCAA Subminiature Snap-acting Switches
The ZMW Series consists of subminiature snap-acting switches that feature a compact design, high durability, and reliable performance ideal for industrial, automotive, and home appliance applications. These switches provide long mechanical life, IP67 ingress protection when potted, and RoHS compliance. Available with various actuation types and terminal options, they accommodate a range of circuit ratings up to 100mA 30VDC. Designed for silent actuation and insulation, these switches are suitable for demanding environments requiring precise switching in limited space.
C&K COMPONENTS ZMW00AP00PCAA Subminiature Snap-acting Switches Specifications:
- Contact Rating: 100mA 30VDC @ 300,000 cycles min.
- Mechanical Life: 500,000 cycles min.
- Insulation Resistance: 100 M ohm min.
- Dielectric Strength: Min. 600VAC (50-60Hz)/minute
- Operating Temperature: -40°C to 85°C
- Operating Force: 150 gf max.
- Case Material: Nylon
- Cover Material: PBT
- Actuator Button: POM
- Movable Contacts: Silver alloy or gold plated
- Stationary Contacts: Silver alloy or gold plated
- Terminals: Brass, silver plated
- Ingress Protection: IP67 when potted, standalone switch with full IP67 protection for wire version
- Sealing: Appropriate for harsh environments, with special sealing options available
- Actuator Types: Plunger, lever, quick connect
- Terminations: Pin plunger, thru-hole, wire leads out bottom, right, or left side
- Certification: RoHS compliant
- Built-in self-cleaning contact design reduces pollution, ensuring durable and reliable switching performance.
Buy the Buy CKSwitches ZMW Series Subminiature Snap-acting Switches Part Number ZMW00AP00PCAA Online
Discover the CKSwitches ZMW Series subminiature snap-acting switches, engineered for durability and precision. Featuring IP67 ingress protection, silent actuation, and multiple terminal options, these switches cater to industrial, automotive, and home appliance applications. With a mechanical life of over 500,000 cycles and RoHS compliance, they ensure long-lasting, reliable performance in harsh conditions. Easy to install with various actuator and termination options, these switches are your ideal choice for demanding environments needing compact, high-quality switching solutions.
Get CKSwitches ZMW00AP00PCAA today—built for high reliability, IP67 protection, and silent actuation perfect for industrial and automotive environments.
Frequently Asked Questions
Where can I buy C&K COMPONENTS ZMW00AP00PCAA?
You can click on the BUY or RFQ button to purchase ZMW00AP00PCAA from an authorized C&K COMPONENTS distributor.
How do I troubleshoot issues or seek technical support for part ZMW00AP00PCAA?
You can download the ZMW00AP00PCAA datasheet or visit the C&K COMPONENTS website for support.
Who is the manufacturer of ZMW00AP00PCAA?
C&K COMPONENTS
