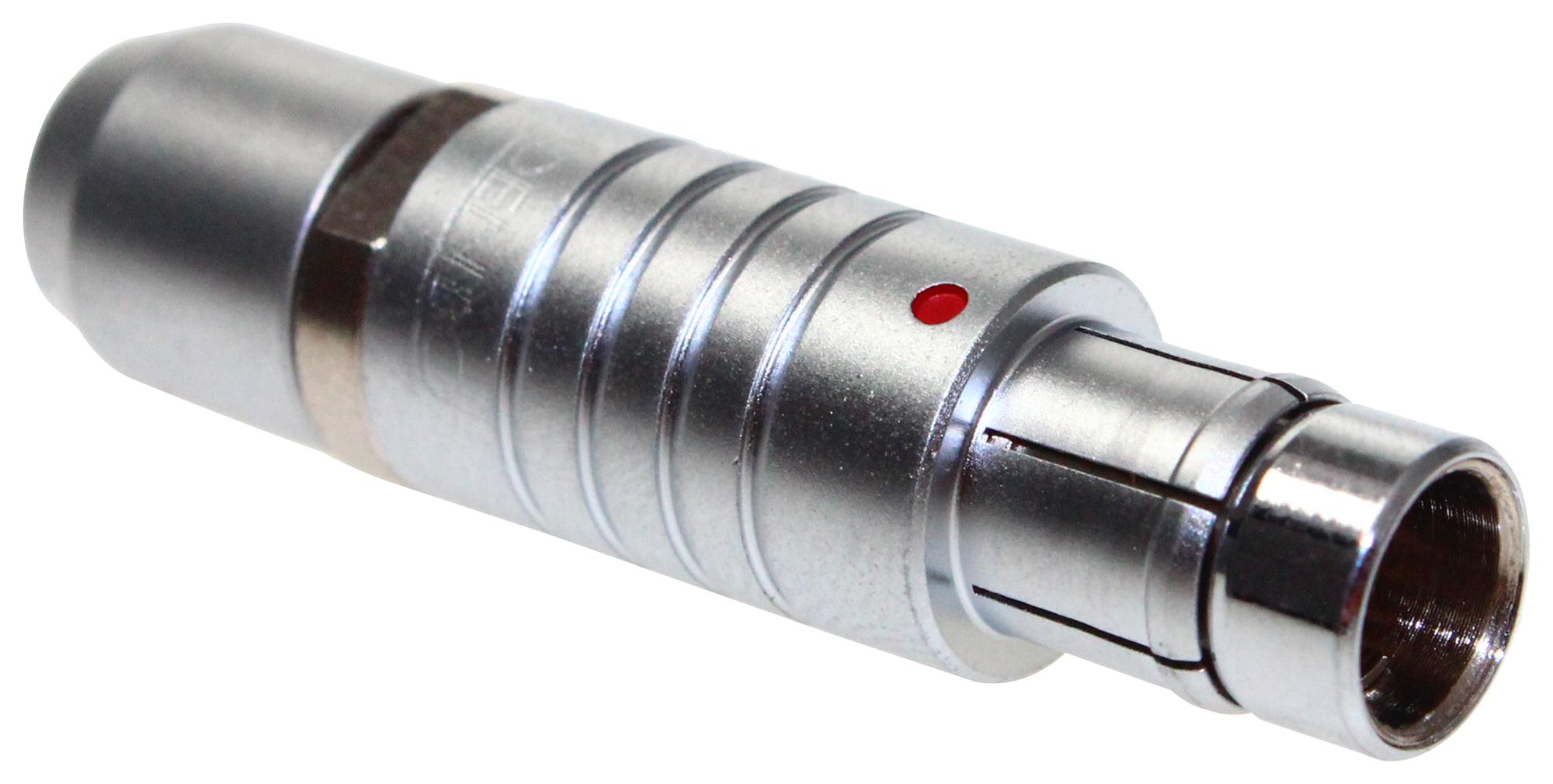

CAMDENBOSS CCA1P1A04 Multipole Connector
The multipole connector features a cable-mounted straight plug with a brass housing that is nickel-plated for corrosion resistance. It has a solder-type contact with a diameter of 0.7mm, gold-plated brass contacts, and a PPS insulator. Designed for robust applications, it withstands humidity up to 95% at 60°C, vibration levels of 15g, and shock resistance of 100g. It offers a maximum voltage of 1200V (AC) and 1700V (DC), supports 5.5A current, and is rated IP68 for dust and water protection. Suitable for demanding industrial environments, ensuring reliable connections with over 5000 mating cycles.
CAMDENBOSS CCA1P1A04 Multipole Connector Specifications:
- Shell Style/Model: Cable mounted straight plug
- Housing Material: Brass, nickel-plated
- Contact Type: Solder type
- Contact Diameter: 0.7mm
- Contacts: Brass, gold-plated
- Insulator: PPS
- Max Diameter: 9.79mm
- Humidity (max): 95% at 60°C
- Vibration Resistance: 15g (10 Hz-2000 Hz)
- Shock Resistance: 100g (6 ms)
- Vtest (contact-shell): 1200V (AC), 1700V (DC)
- Vtest (contact-contact): 1200V (AC), 1800V (DC)
- Rated Current: 5.5A
- Rated Voltage: 200V
- Shielding (min): 75 dB at 10 MHz, 40 dB at 1 GHz
- Mechanical Operation: 5000 mating cycles
- IP Rating: IP68
Buy the Buy CA DENBOSS Multipole Connectors Part Number CCA1P1A04 Online
Purchase the CA DENBOSS multipole connector online for reliable, high-performance connections in industrial settings. Featuring a brass housing, gold-plated brass contacts, and a PPS insulator, this connector supports up to 5.5A and 200V withstanding harsh conditions such as humidity, vibration, and shock. Its IP68 rating guarantees protection against dust and water, making it suitable for demanding applications. Over 5000 mating cycles ensure long-lasting performance, making it the preferred choice for engineers seeking durability and dependable connection solutions in automation and machinery.
Get CA DENBOSS CCA1P1A04 today—built for durability in industrial environments with high vibration and shock resistance.
Frequently Asked Questions
Where can I buy CAMDENBOSS CCA1P1A04?
You can click on the BUY or RFQ button to purchase CCA1P1A04 from an authorized CAMDENBOSS distributor.
How do I troubleshoot issues or seek technical support for part CCA1P1A04?
You can download the CCA1P1A04 datasheet or visit the CAMDENBOSS website for support.
Who is the manufacturer of CCA1P1A04?
CAMDENBOSS
