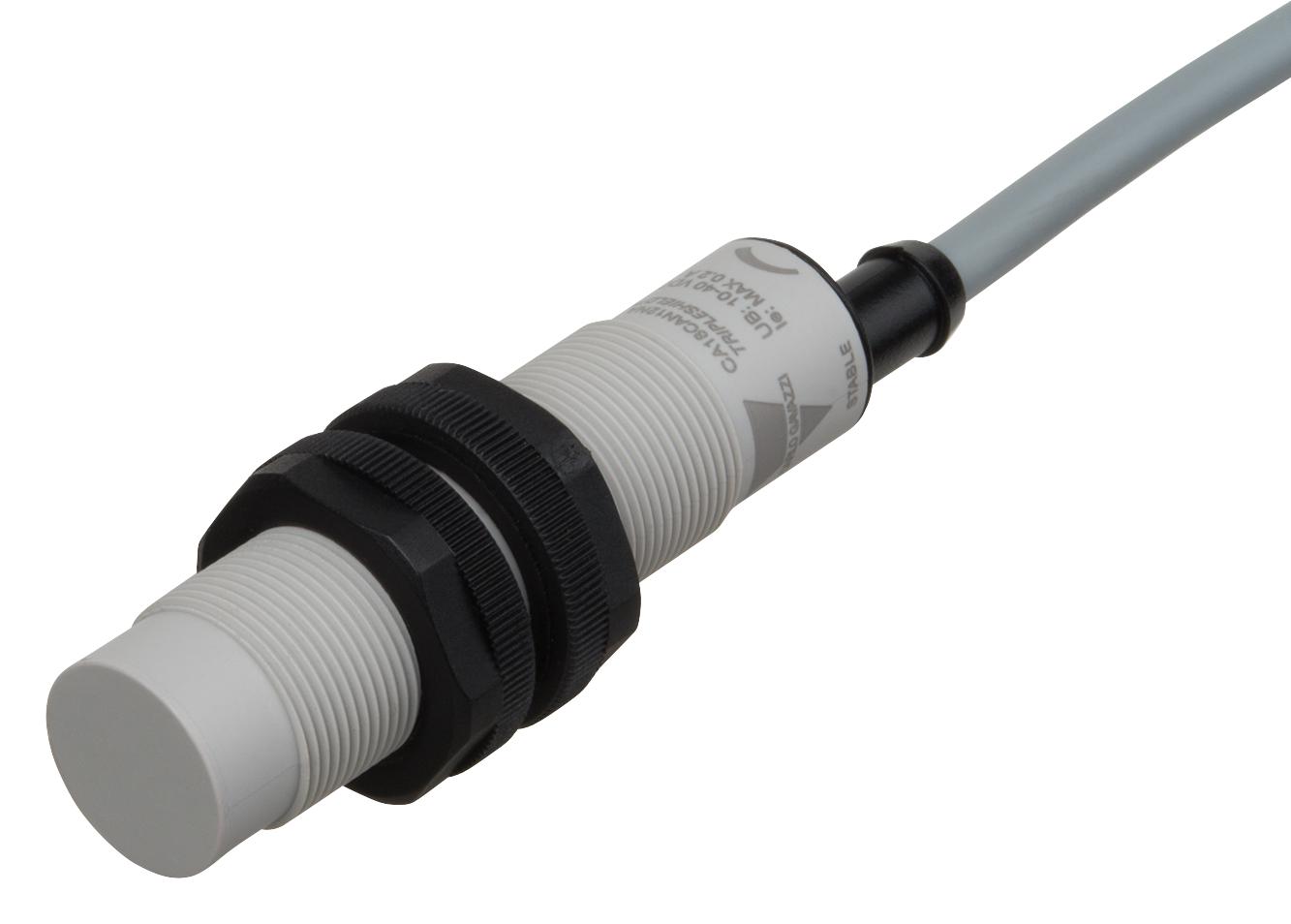

CARLO GAVAZZI CA18CAN12BPA2IO Capacitive Proximity Sensor
The CA18CAN12BPA2IO is a high-performance capacitive proximity sensor featuring IO-Link communication, suitable for detecting solid or liquid targets in industrial environments. It offers adjustable sensing distances of 8 mm in flush or 12 mm non-flush mounting, with enhanced immunity to electromagnetic interference thanks to TRIPLESHIELD™ technology. The sensor is IP69K rated, ECOLAB approved for cleaning, and can be configured for various detection modes, including single point, two point, and window, with digital or analog outputs. It supports easy customization, logging functions, and advanced parameter settings via IO-Link, making it ideal for manufacturing, food, and material handling applications.
CARLO GAVAZZI CA18CAN12BPA2IO Capacitive Proximity Sensor Specifications:
- Housing Material: PBT, grey, 30% glass-reinforced
- Detection Distance: 8 mm flush, 12 mm non-flush
- Mounting Thread: M18 x 1, length 47mm non-flush, 55mm flush
- Sensing Face: Ceramic, with IP69K sealing
- Input Voltage: 10-40 VDC, ripple included
- Supply Current: ≤20 mA no load
- Ingress Protection: IP69K, IP67, IP68/60 min
- Shock & Vibration Resistance: 30 G, 10-150 Hz, 1mm /15G
- Temperature Range: -30°C to +85°C operating, -40°C to +85°C storage
- Operation Frequency: 50 Hz
- Response Time: OFF-ON <10 ms, ON-OFF 10 ms
- Housing Rating: IP69K for high-pressure washdowns
- Electrical Connections: 2m, 4-wire PVC cable, or M12 plug
- Approval: ECOLAB, UL, CE, IP69K certified
- Outputs: PNP, NPN, Push-Pull, configurable via IO-Link
- Functionality: Adjustable sensing distance, hysteresis, detection modes, logging, timer functions
- Enclosure Standards: EN60947-5-2, EN60947-1
Buy the Buy Carlo Gavazzi Capacitive Proximity Sensors Part Number CA18CAN12BPA2IO Online
Purchase the Carlo Gavazzi CA18CAN12BPA2IO capacitive proximity sensor online today to benefit from advanced detection capabilities, IP69K durability for washdown environments, and flexible IO-Link configuration for tailored industrial solutions. Designed for detection of solid and liquid targets, this sensor ensures accurate operation in manufacturing, material handling, and food processing applications. With a rugged housing, electromagnetic immunity, and integrated logging functions, it provides dependable performance, easy installation, and seamless integration into your automation system. Improve efficiency and reliability with this robust capacitive sensor.
Order your Carlo Gavazzi SeriesCA18CAN12BPA2IO high-precision capacitive sensor today and enhance your industrial detection systems with reliable performance and customizable features.
