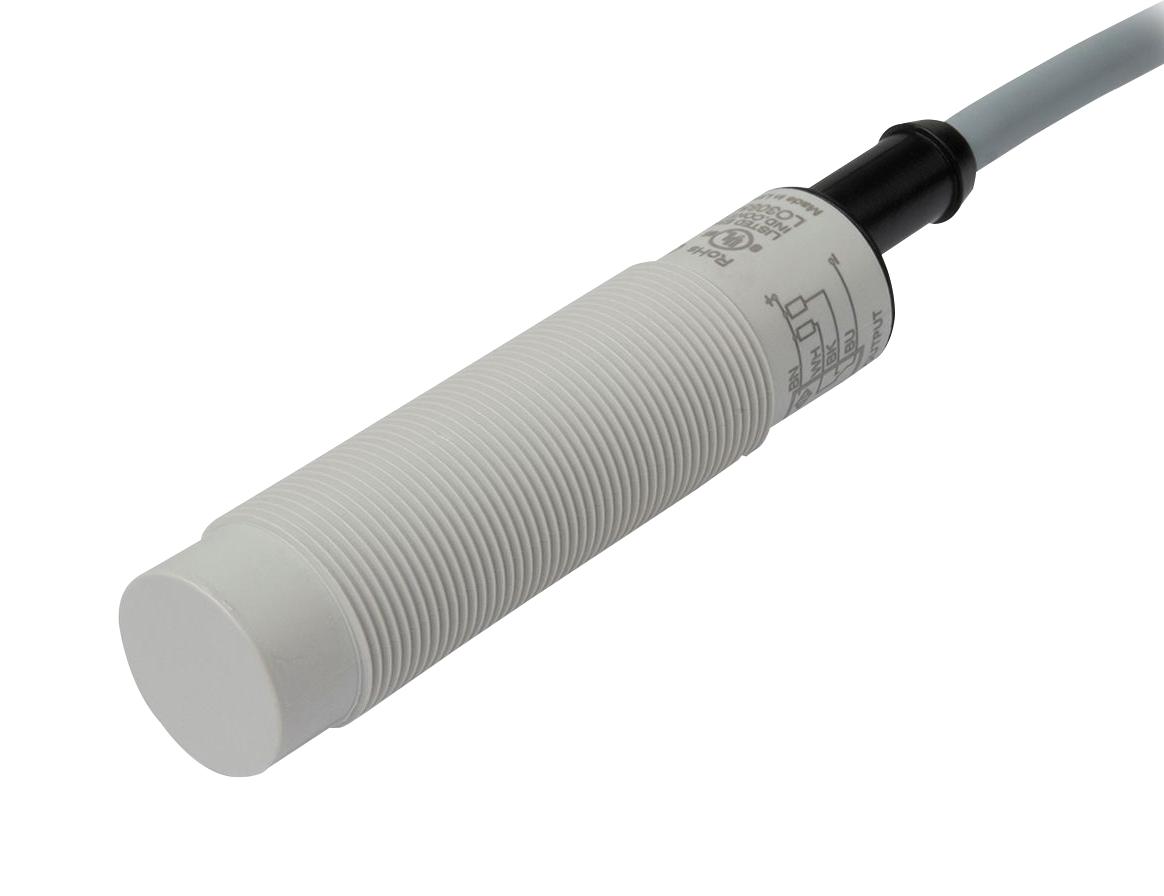

CARLO GAVAZZI CA18CAN12PA Capacitive Proximity Sensor
The CA18CAN12PA is a capacitive proximity switch equipped with advanced 4th Generation TRIPLESHIELD™ technology, providing enhanced immunity against electromagnetic interference, humidity, and dust. It features a sensing distance adjustable between 3 to 15 mm without flush mounting, with protection against short circuits, transients, and reverse polarity. The sensor offers dust and humidity compensation, along with dust and temperature alarm outputs that warn when cleaning or cooling are needed. The device includes LED indicators for power, target detection, and stability status, and is housed in an IP69K rated enclosure approved by ECOLAB for cleaning and disinfection agents. It also supports a DC 200mA, PNP, normally open or normally closed output, and connects via an M12 connector. Suitable for sensing and instrumentation applications.
CARLO GAVAZZI CA18CAN12PA Capacitive Proximity Sensor Specifications:
- Housing Material: PBT, grey, 30% glass reinforced
- Housing Diameter: 18 mm
- Detection Range: 3 to 15 mm (non-flush mounting), 2 to 10 mm (flush mounting)
- Protection: IP69K, IP67, IP68, NEMA 1, 2, 4, 4X, 5, 6, 6P, 12
- Rated Operational Voltage: 10-40 VDC (ripple included)
- Output: DC 200 mA, NPN or PNP, NO and NC
- Response Time: <10 ms
- Operating Temperature: -30°C to +85°C
- Sensing Principle: Capacitive, influenced by dielectric constant
- Alarm Outputs: Dust and Temperature alarm (60°C ± 5°C)
- Connection Type: M12 connector or cable, 4 x 0.34 mm²
- Protection Features: Short-circuit, transient, reverse polarity
- Certifications: ECOLAB, cULus
- Weight: 150g (cable version), 75g (plug version)
Buy the Buy Carlo Gavazzi Capacitive Proximity Part Number CA18CAN12PA Online
Purchase the Carlo Gavazzi CA18CAN12PA capacitive proximity sensor online today and ensure precise detection with up to 15mm adjustable range. Featuring advanced TRIPLESHIELD™ technology, it offers superior immunity from electromagnetic interference, dust, and humidity, making it perfect for demanding industrial environments. The IP69K rated housing allows use in high-pressure washdowns and disinfection processes. With dust and temperature alarms, LED indicators, and durable construction, this sensor ensures reliable performance and easy installation. Order now to upgrade your sensing and automation projects with confidence.
Order your Carlo Gavazzi SeriesCA18CAN12PA capacitive proximity sensor today and enhance your industrial sensing reliability with advanced immunity features.
