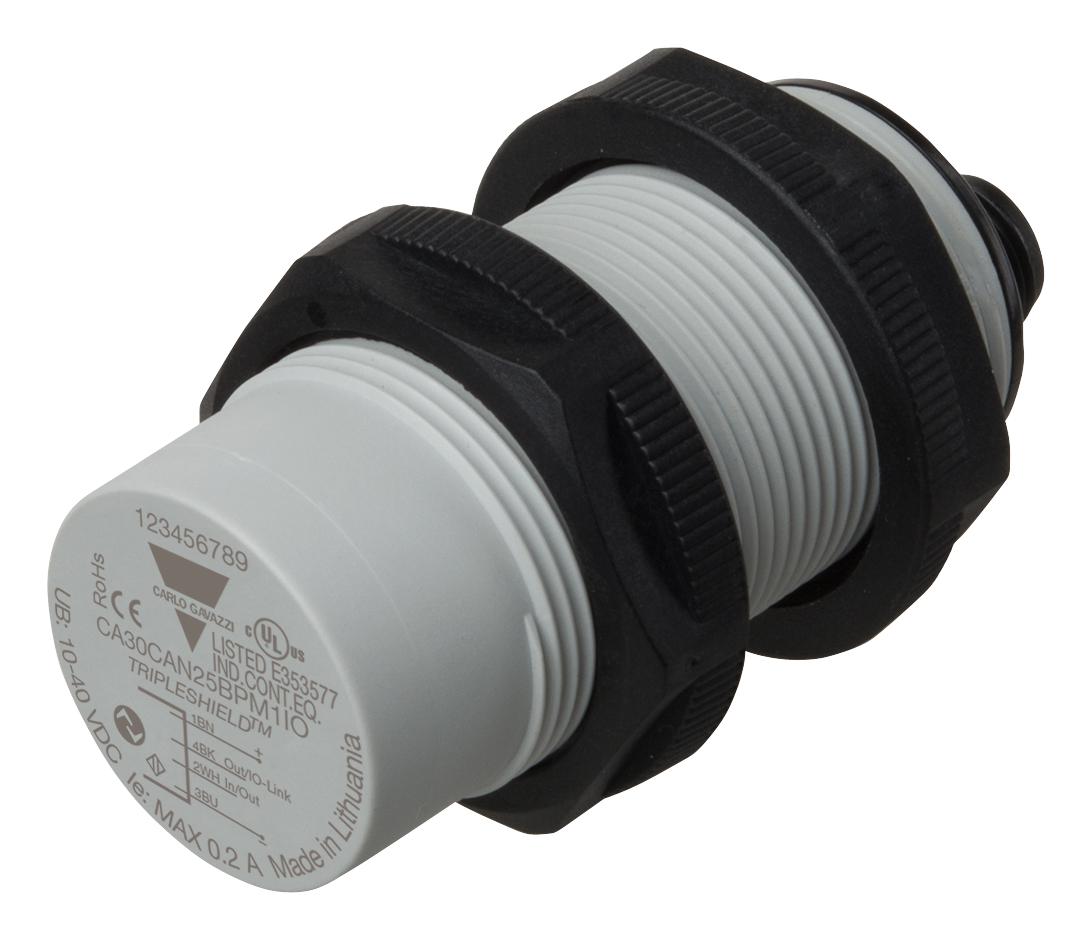

CARLO GAVAZZI CA30CAN25BPM1IO Capacitive Proximity Sensor
The CA30CAN25BPM1IO is a high-performance capacitive proximity sensor with IO-Link communication, designed for accurate detection of solid and liquid targets. It features a robust IP69K housing, suitable for demanding industrial environments including food, beverage, and material handling. Leveraging TRIPLESHIELD™ technology for enhanced EMI immunity and dust/wash-down resistance, it offers configurable sensing modes, adjustable parameters, and logging functions. Ideal for applications requiring precise level detection, density measurement, and flexible customization for OEM needs, ensuring reliable operation in harsh conditions.
CARLO GAVAZZI CA30CAN25BPM1IO Capacitive Proximity Sensor Specifications:
- Detection distance: 16 mm (flush), 25 mm (non-flush)
- Housing material: PBT, grey, 30% glass reinforced
- Cable length: 2 m, 4-wire PVC, grey, oil proof
- Connection: M12 x 1, 4-pin male connector
- Housing dimensions: M30 x 1.5 thread, 45.5 mm (non-flush), 59.5 mm (flush)
- Weight: 190 g (cable), 106 g (plug)
- Power supply: 10-40 VDC, ripple 510%
- Output: configurable as NPN, PNP, Push-Pull, external input
- Protection: IP67, IP68/60 min, IP69K, UL, ECOLAB approved
- Operational temperature: -30°C to +85°C
- Max. sensing face temp: 120°C
- Response time: <10 ms (OFF-ON), <10 ms (ON-OFF)
- Vibration: 10-150 Hz, 1 mm / 15G
- Shock: 30 G/11 ms
- Pollution degree: 3
- Overvoltage category: II
- Humidity: suitable for industrial conditions
- EMC: EN 60947-5-2, EN 60947-1, IEC 61000-4-2-4-8
Buy the Gavazzi Series CA30 Capacitive Sensor: CA30CAN25BPM1IO
Enhance your industrial detection capabilities with the Gavazzi Series CA30 capacitive proximity sensor, CA30CAN25BPM1IO. Featuring IP69K protection, TRIPLESHIELD™ EMI immunity, and configurable IO-Link communication, it suits applications such as liquid level detection, pellet density measurement, and many more in harsh environments. Its robust housing, flexible sensing modes, and logging functions ensure precise, reliable operation. Purchase online now to benefit from quick delivery and integrate cutting-edge sensing technology into your manufacturing processes effortlessly.
Order your Gavazzi Series CA30 capacitive sensor CA30CAN25BPM1IO today and equip your industrial setup with reliable detection and advanced IO-Link features.
Frequently Asked Questions
Where can I buy CARLO GAVAZZI CA30CAN25BPM1IO?
You can click on the BUY or RFQ button to purchase CA30CAN25BPM1IO from an authorized CARLO GAVAZZI distributor.
How do I troubleshoot issues or seek technical support for part CA30CAN25BPM1IO?
You can download the CA30CAN25BPM1IO datasheet or visit the CARLO GAVAZZI website for support.
Who is the manufacturer of CA30CAN25BPM1IO?
CARLO GAVAZZI
