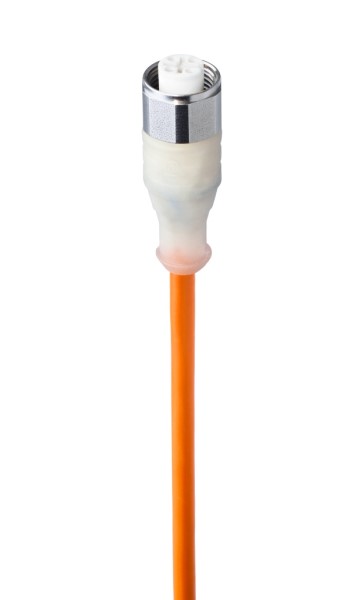

CARLO GAVAZZI CONB14NFSP5W IP69K Connector Cable
The CARLO GAVAZZI CONB14NF-SP5W connector is a highly robust IP69K connection cable engineered for demanding industrial applications. Specifically designed for use in washdown environments such as food & beverage, chemical, and pharmaceutical industries, it adheres to high Ecolab standards and boasts UL certification. The connector's construction provides excellent resistance to aggressive chemicals and cleaning agents, ensuring long-term reliability even under harsh conditions. Available in straight or angled versions with or without LED indicators, the CONB14NF-SP5W offers flexibility for various integration needs. Its IP69K protection class and UL-certified temperature rating of up to 90°C further contribute to its durability and suitability for critical applications.
CARLO GAVAZZI CONB14NFSP5W IP69K Connector Cable Specifications:
- rated_operating_voltage: 250 V ac/dc (30V UL)
- led_versions: 30 VDC
- output_current: ≤ 4 A
- contact_resistance: ≤ 5 mΩ
- contact_material: Cu/Sn
- coating: Cu/Au
- contact_bearer_material: PP white
- temperature_range: -40° to +105°C (90°C UL)
- degree_of_protection: IP69K
- o_ring_sealing: EPDM
- rated_impulse_voltage: 2.5 kV
- insulation_resistance: > 10ˆ9 Ohm
- moulded_body_material: PP white
- union_locking_nut: V4A
- tightening_torque: 0.5 Nm
- connection_cable: TPE orange
- wire_cross_section: 4 x 0.25 mm2
- weight_2m_version: approx 63 g
- weight_5m_version: approx 109g
- pollution_degree: 3
- overvoltage_category: lll
- insulation_group: l
- led_color_power: Green LED
- led_color_output: 1 Yellow LED
- cable_type: TPE
