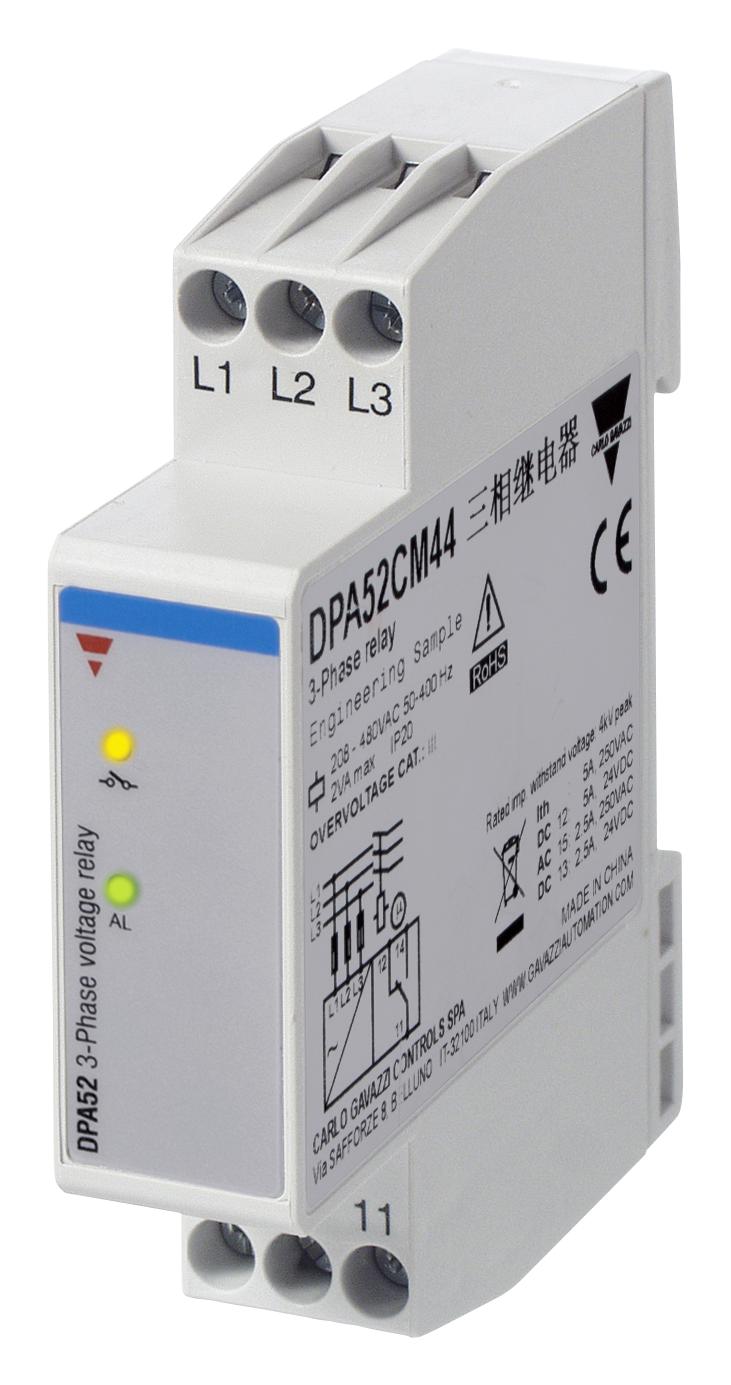

CARLO GAVAZZI DPA52CM44 Three-Phase Power Monitor
The DPA52 is a three-phase monitoring relay designed to ensure correct phase sequence and phase presence in power systems from 208V to 480V. It automatically adapts without settings, providing reliable detection of phase loss and sequence errors, even with regenerated voltages. Equipped with visual indicators including bi-color alarm LEDs and a relay output, it facilitates easy status monitoring. Its compact DIN-rail enclosure and wide measurement range make it ideal for industrial, HVAC, and motor applications, guaranteeing safe, stable power supply management with minimal wiring complexity.
CARLO GAVAZZI DPA52CM44 Three-Phase Power Monitor Specifications:
- Voltage Range: 208V -40% to 480V +30% (125V to 624V)
- Frequency Range: 45Hz to 65Hz
- Power Consumption: <2VA
- Protection Grade: IP20
- Housing Color: RAL7035
- Dimensions: 81mm H x 67.2mm D x 17.5mm W
- Material: Nylon
- Relay Contact Rating: 5A @ 250V AC (AC1), 2.5A @ 250V AC (AC15), 5A @ 24V DC (DC12), 2.5A @ 24V DC (DC13)
- Input Voltage: 125V - 624V, fixed thresholds with hysteresis of 2%
- Reaction Time: 200ms
- Operating Temp: -20°C to 60°C
- Humidity: 5%-95%
- Vibration and Shock Resistance: IEC standards Class 1
- Approval: CE, UL, CSA compliant
- Insulation: 2.5KV rms, 4KV impulse
- Output: SPDT relay with change-over contacts
- Wire Size: AWG30 to AWG13
Buy the Gavazzi Series DPA52 Three-Phase Monitoring Relay: DPA52CM44
Purchase the Gavazzi DPA52CM44 three-phase power monitoring relay online today and ensure your industrial systems operate safely and efficiently. This compact, IP20-rated device automatically detects phase loss and incorrect phase sequence, providing visual alerts through bi-color LEDs and relay outputs. Its wide voltage range of 125 to 624V and configurable thresholds make it suitable for HVAC, motor control, and industrial applications. Easy to install on DIN rails, this relay boosts operational safety while minimizing wiring complexity.
Get Gavazzi DPA52CM44 today—built for precise phase detection and reliable industrial power monitoring.
Frequently Asked Questions
Where can I buy CARLO GAVAZZI DPA52CM44?
You can click on the BUY or RFQ button to purchase DPA52CM44 from an authorized CARLO GAVAZZI distributor.
How do I troubleshoot issues or seek technical support for part DPA52CM44?
You can download the DPA52CM44 datasheet or visit the CARLO GAVAZZI website for support.
Who is the manufacturer of DPA52CM44?
CARLO GAVAZZI
