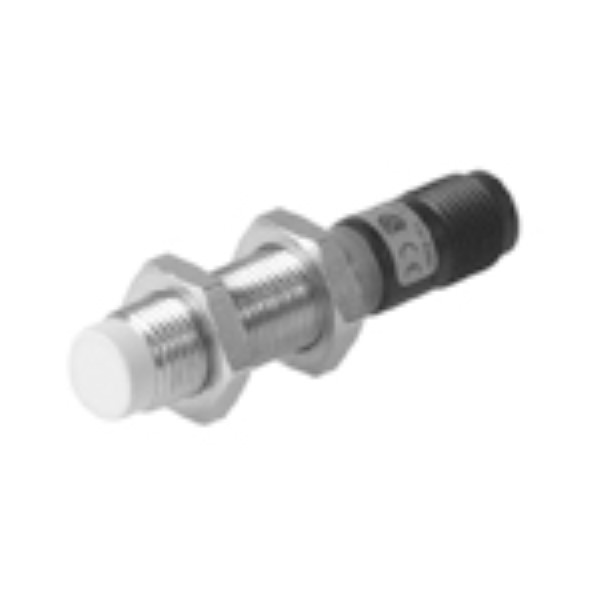

CARLO GAVAZZI EI1204NPOSS1 Inductive Proximity Sensor
The CARLO GAVAZZI EI1204NPOSS-1 is a robust inductive proximity sensor designed for reliable object detection in a variety of industrial applications. It features a durable stainless steel housing, a compact M12 diameter, and a sensing distance ranging from 2 to 15mm. The sensor provides transistor NPN/PNP output with make or break switching options, and includes protection against short circuits and reverse polarity. Its suitability for flush mounting in metal and compliance with EN 50080 and EN 50081 standards make it a versatile choice for automated systems and machine control.
CARLO GAVAZZI EI1204NPOSS1 Inductive Proximity Sensor Specifications:
- Rated operational voltage: 12 to 36 VDC
- Ripple: ≤10%
- Rated operational current: ≤200 mA
- No-load supply current: < 6.5 mA (Output ON)
- Voltage drop: ≤2 VDC at max. load
- Transient voltage: ≤700 V/0.5 J
- Power ON delay: < 10 ms
- Frequency of operation: 500 Hz
- Indication for output ON: LED, yellow
- Assured operating distance: 0≤Sa≤0.81 Sn
- Repeat accuracy: ≤5%
- Hysteresis: 1 to 15% of sensing distance
- Effective operating distance: 0.9 x Sn≤Sr≤1.1 x Sn
- Usable operating distance: 0.9 x Sr≤Su≤1.1 x Sr
- Ambient temperature (Operating): -25° to +70°C
- Ambient temperature (Storage): -30° to +80°C
- Degree of protection: IP 67
- Housing material (Body): Stainless steel (1.4301)
- Housing material (Front): Grey thermoplastic polyester
- Housing material (Back): Black polyester
- Connection: 2 m cable, 3 x 0.3 mm2, grey PVC, oil proof
- Weight: 10 g
