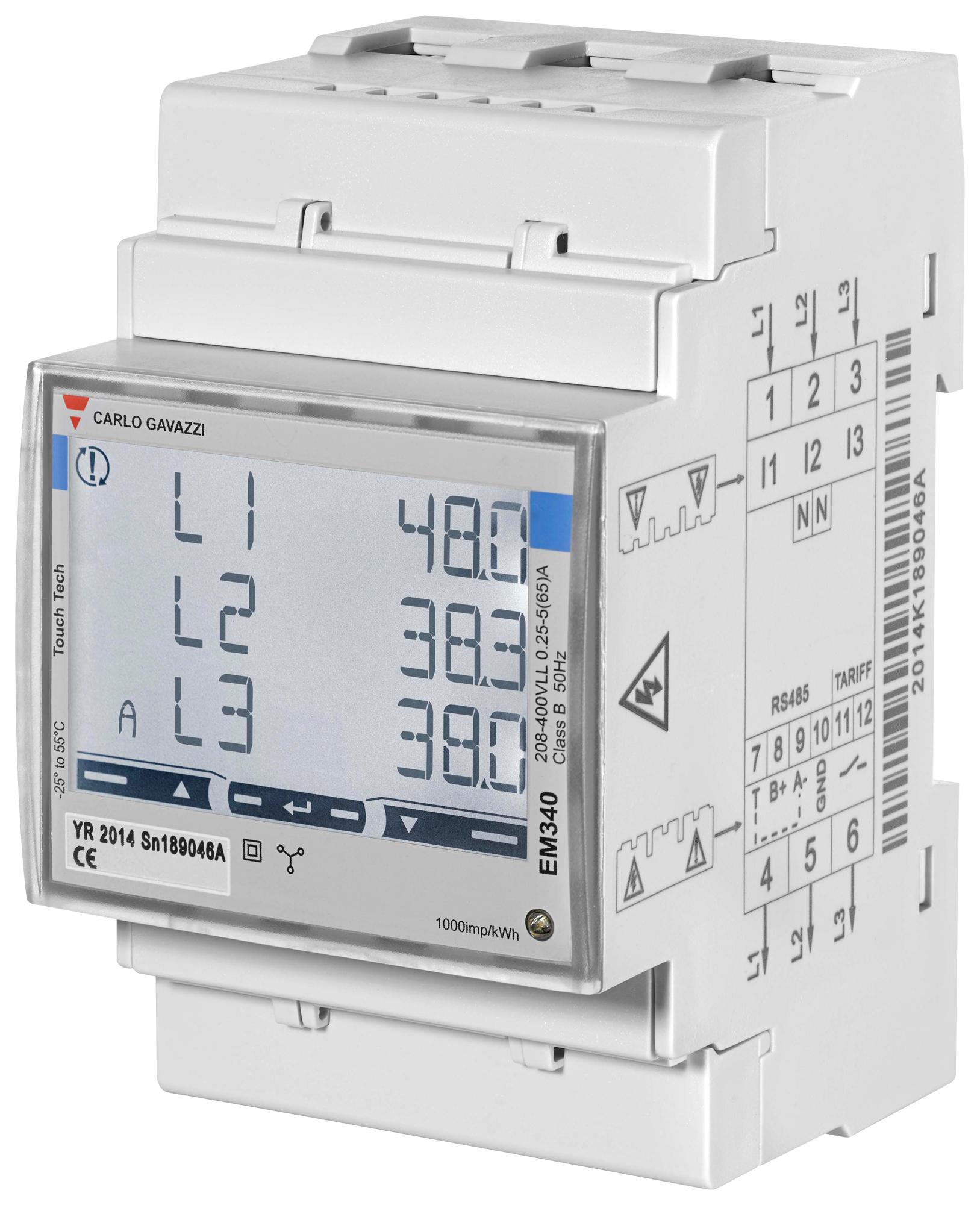

CARLO GAVAZZI EM340DINAV23XO1X Energy Meter
The EM340 three-phase energy meter by Carlo Gavazzi is certified for MID Directive, offering high accuracy +0.5% RDG for active energy measurement. It features a backlit LCD display with touch keypad, multi-technical measurement of kWh, kvarh, kW, kvar, Power factor, frequency, and phase voltages and currents. Suitable for direct connection up to 65A, with dual tariffs for precise cost allocation. It can be equipped with pulse output, RS485 Modbus, or M-Bus ports, and is ideal for electrical energy metering and fiscal applications in industrial and commercial environments.
CARLO GAVAZZI EM340DINAV23XO1X Energy Meter Specifications:
- Measurement Range: 208 to 400 VLLAC; 3-phase, 3 or 4 wire; 2-phase 3 wire
- Current: 5(65)A; Imin=0.25A; Imax=65A; Un: 113 to 265VLN
- Accuracy: +0.5% RDG; Class 1 (kWh), Class B (kWh) according to EN standards
- Display: Backlit LCD with 8 digits, 3 rows, 7mm high; touch keypad
- Power Supply: Self-power supply, 208-400VAC, 50/60Hz; max consumption 1W
- Protection Degree (Front): IP51; Housing: DIN-rail, Noryl, UL 94 V-0
- Communication: RS485 Modbus port (optional), M-bus port (optional), pulse output (optional)
- Output: Open collector NPN, selectable pulse duration 30ms or 100ms; Max load 2.5VAC/DC, 100mA
- Operating Temp: -20°C to +65°C; Storage: -30°C to +80°C; Humidity: up to 90% non-condensing
- Certification: MIL, MID (PF option only), compliance EN62052-11, EN62053-21, EN50470-3
- Dimensions: 54 x 90 x 63 mm; Mounting: DIN-rail; Weight: approx. 240g
Buy the Carlo Gavazzi Series EM340 Energy Meter: EM340DINAV23XO1X
Purchase the Carlo Gavazzi EM340 three-phase energy meter online now for reliable, certified energy measurement with high accuracy. Its LCD backlit display, dual tariffs, optional pulse output, and communication ports make it ideal for precise energy and cost management in industrial and commercial environments. Compact DIN-rail mounting with IP51 front protection ensures durability and easy installation. Whether for fiscal metering or energy monitoring, the EM340 guarantees excellent performance, accurate data, and compliance with MID standards, delivering long-term value for your energy management needs.
Get Carlo Gavazzi EM340 energy meter today—built for precision and long-lasting durability in energy management applications.
Frequently Asked Questions
Where can I buy CARLO GAVAZZI EM340DINAV23XO1X?
You can click on the BUY or RFQ button to purchase EM340DINAV23XO1X from an authorized CARLO GAVAZZI distributor.
How do I troubleshoot issues or seek technical support for part EM340DINAV23XO1X?
You can download the EM340DINAV23XO1X datasheet or visit the CARLO GAVAZZI website for support.
Who is the manufacturer of EM340DINAV23XO1X?
CARLO GAVAZZI
