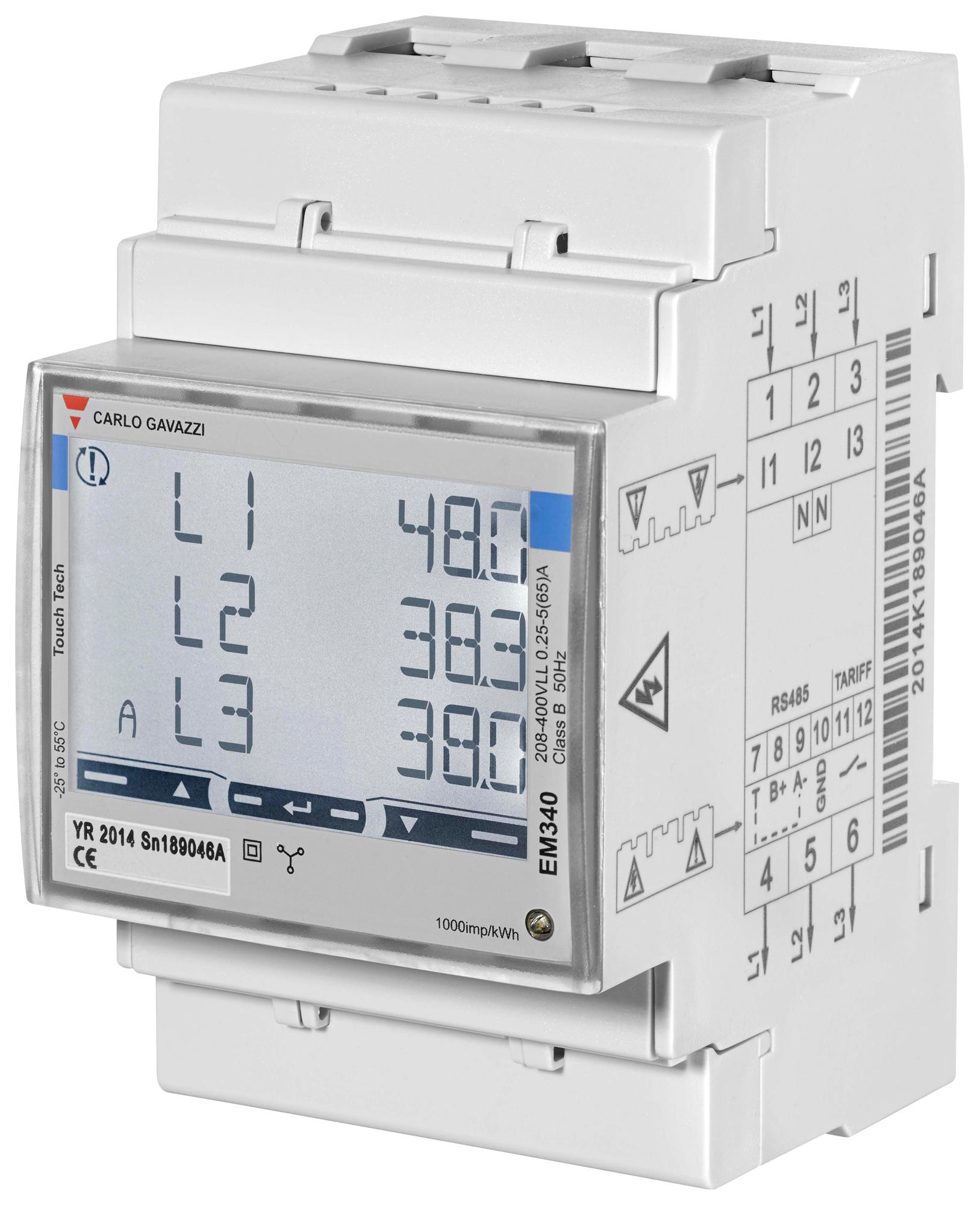

CARLO GAVAZZI EM340DINAV23XS1PFB Three-Phase Energy Meter
The EM340 three-phase energy meter by Carlo Gavazzi is certified according to MID Directive, ideal for energy monitoring and cost allocation. It features a backlit LCD display with touch keypad, supporting energy measurement in kWh and kvarh with dual tariffs, and system variables like kW, kvar, and PF. The meter supports direct connection up to 65A, digital input for tariff management, optional pulse output, RS485 Modbus, and M-bus communication ports. Its robust construction includes DIN-rail mounting, front protection IP51, and compliance with safety and metrological standards. Suitable for legal metrology, it ensures accurate energy measurement in industrial and commercial installations.
CARLO GAVAZZI EM340DINAV23XS1PFB Three-Phase Energy Meter Specifications:
- Type: Three-phase energy meter
- Certification: MID Directive (optional PF only), EN62053-21, EN50470-3
- Display: Backlit LCD, 3 rows x 8 digits, 7mm height, touch keypad
- Measurement: active energy in kWh, reactive energy in kvarh, with dual tariffs
- Electrical features: Direct connection up to 65A, current range 0.25A to 65A, Nominal voltage 208-400V LLAC
- System variables: kW, kvar, kVA, VLL, VLN, PF, Hz, kWdmd, peak
- Physical: 3 DIN modules, dimensions 54x90x63 mm, IP51 front protection, IP20 terminals
- Communication: Optional RS485 Modbus port, M-bus port, pulse output NPN open collector
- Power supply: Self-powered, 50/60Hz, power consumption approximately 1W
- Environmental: Operating temperature -20°C to +65°C, storage -30°C to +80°C
- Safety: Overvoltage category III, 4000 VAC RMS insulation, compliance with electromagnetic compatibility standards
- Additional features: Wrong connection detection, phase sequence indicator, load condition alert
- Housing: Noryl, UL 94 V-0, includes sealing covers
- Mounting: DIN-rail, screw terminals, screw torque 0.4-2.8 Nm
Buy the Carlo Gavazzi Series EM340 Energy Meter: EM340DINAV23XS1PFB
Discover the Carlo Gavazzi EM340 three-phase energy meter, featuring dual tariffs, LCD display, optional communication ports, certification according to MID, and robust DIN-rail mounting. Ideal for accurate energy measurement, cost allocation, and legal metrology applications. Its easy connection, digital input for tariff management, and optional pulse output make it suitable for various industrial and commercial energy management needs. Purchase online now to ensure reliable, precise energy monitoring and compliance with international standards for your energy data collection.
Get Carlo Gavazzi EM340DINAV23XS1PFB today—built for precise energy monitoring, dual tariffs, and long-lasting durability.
