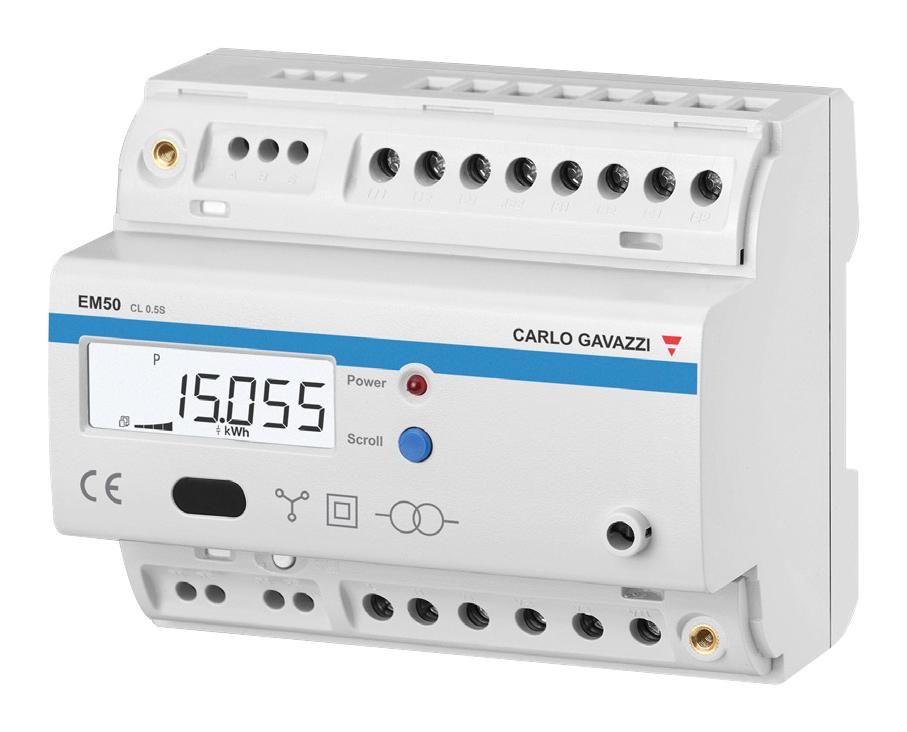

CARLO GAVAZZI EM50DINRG53HRSX Energy Analyzer
The EM50 energy analyzer is a versatile three-phase DIN-rail mounted device designed for monitoring electrical variables across various systems, including single-phase, two-phase, and three-phase setups with different voltage levels. Equipped with an LCD display, static and relay outputs, and communication protocols such as Modbus RTU and BACnet MS/TP, it ensures precise energy measurement, real-time data transmission, and remote control. It supports direct connection up to 600 V, manages energy consumption data, and suits building and industrial automation, law metrology, and energy efficiency applications.
CARLO GAVAZZI EM50DINRG53HRSX Energy Analyzer Specifications:
- Protection degree: Front IP40, Terminals IP20
- Mounting: DIN rail
- Display: Backlit LCD, 7 digits, 8 mm
- Voltage inputs: Direct or via VT, Un from 100 to 600 V, max VT ratio 200000
- Current inputs: 5A In, 333 mV or 80 mA sensor, max CT ratio 50000:1
- Power supply: 100-415 V ac / 100-300 V dc, < 2W consumption
- Communication: Modbus RTU (2 wires, max 247 devices), BACnet MS/TP (max distance 1000 m)
- Outputs: Static Mosfet pulse output, relay alarm/output (5A@250V ac)
- Operating temp: -25°C to +75°C (-13°F to +167°F) standard, -20°C to +53°C (Measurement Canada)
- Insulation: Up to 2kV between measuring circuits, static, relay, communication ports
- Enclosure: DIN rail with terminal covers, weight approx 340 g
Buy the Buy Carlo Gavazzi EM50DINRG53HRSX Energy Analyzer Part Number EM50DINRG53HRSX Online
Enhance your energy management system with the Carlo Gavazzi EM50 energy analyzer, a reliable solution for industrial and building automation. Featuring advanced measurement capabilities, Modbus RTU, BACnet MS/TP communication, and direct connection up to 600V, it ensures accurate monitoring of energy consumption and electrical variables. Its DIN-rail design offers easy installation. Ideal for legal metrology, energy efficiency, and cost allocation, order online now for improved operational insights and energy savings.
Get Carlo Gavazzi EM50DINRG53HRSX today—built for precision and long-lasting durability in energy monitoring applications.
Frequently Asked Questions
Where can I buy CARLO GAVAZZI EM50DINRG53HRSX?
You can click on the BUY or RFQ button to purchase EM50DINRG53HRSX from an authorized CARLO GAVAZZI distributor.
How do I troubleshoot issues or seek technical support for part EM50DINRG53HRSX?
You can download the EM50DINRG53HRSX datasheet or visit the CARLO GAVAZZI website for support.
Who is the manufacturer of EM50DINRG53HRSX?
CARLO GAVAZZI
