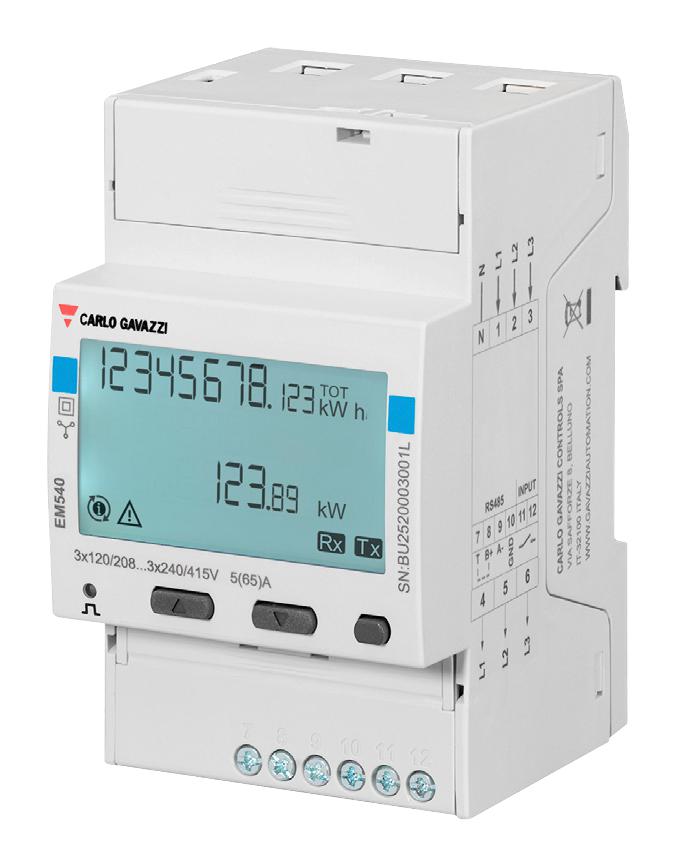

CARLO GAVAZZI EM540DINAV23XS1X Energy Monitoring System
EM540 is a versatile energy analyzer designed for three- and two-phase low-voltage systems up to 415 V, with current capacity up to 65A. It features a backlit LCD display for easy monitoring, supports digital and communication inputs/outputs including Modbus RTU and M-Bus, and offers precise measurement of active, reactive, and apparent energy. Certified for fiscal metrology, it ensures high accuracy, compliance with IEC standards, and robust protection against tampering. Suitable for installation in switchboards, it enables energy consumption monitoring, system diagnostics, and integration into scalable energy management solutions.
CARLO GAVAZZI EM540DINAV23XS1X Energy Monitoring System Specifications:
- Housing Material: PBT with polycarbonate cover
- Protection Degree: IP40 front, IP20 terminals
- Mounting: DIN rail
- Dimensions: 3-DIN modules
- Weight: 370 g
- Operating Temperature: -25°C to +55°C
- Storage Temperature: -25°C to +70°C
- Voltage Inputs: Direct connection, L-N 120-230V, L-L 208-400V, Overvoltage category: III
- Current Inputs: 5A base, max 65A, with overload 30 Imax for 10 ms
- Power Supply: Self-powered, <1.3 W consumption
- Communication: Modbus RTU RS485, M-Bus, baud rate up to 115.2 kbps
- Digital Inputs: 1 free contact, open voltage 5 Vdc, max 30 V ac
- Digital Outputs: One opto-mosfet pulse or alarm, max 100 mA, 2.5 V ac/dc
- Measurement Accuracy: Active energy Class 1 EN62053-21, Class B EN50470-3, reactive energy Class 2
- Display: Backlit LCD, refresh time 500 ms, resolution 0.001 kWh
Buy the Gavazzi EM540 U–2013 Reliable Energy Analyzer for Industrial Applications
Purchase the Gavazzi EM540 energy analyzer online today for reliable energy measurement in low-voltage systems. Its advanced features, including high accuracy, intuitive display, and flexible communication options, make it an ideal choice for monitoring electrical consumption, diagnosing issues, and integrating into energy management solutions. Designed for ease of installation on DIN rails, it supports fiscal metrology certifications and complies with international standards, ensuring compliance and precision. Boost your energy efficiency and operational reliability—buy Gavazzi EM540 now and optimize your electrical systems effortlessly.
Get Gavazzi EM540 today—built for precision energy monitoring and long-lasting durability in industrial environments.
Frequently Asked Questions
Where can I buy CARLO GAVAZZI EM540DINAV23XS1X?
You can click on the BUY or RFQ button to purchase EM540DINAV23XS1X from an authorized CARLO GAVAZZI distributor.
How do I troubleshoot issues or seek technical support for part EM540DINAV23XS1X?
You can download the EM540DINAV23XS1X datasheet or visit the CARLO GAVAZZI website for support.
Who is the manufacturer of EM540DINAV23XS1X?
CARLO GAVAZZI
