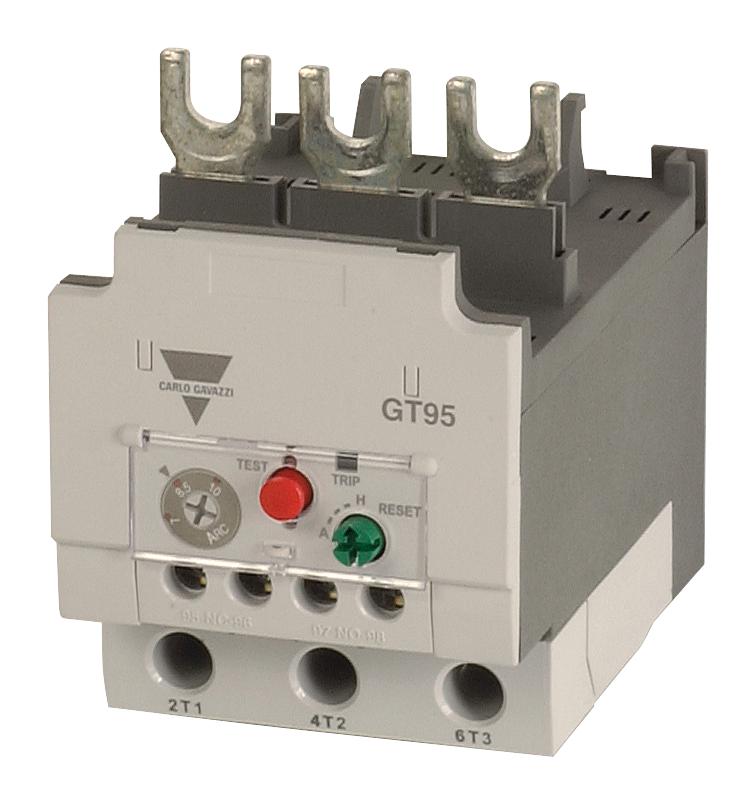

CARLO GAVAZZI GT95L40A Overload Relay
The GT95L40A is a bimetal-style overload relay designed to protect AC circuits and motors from overloads, phase failure, and prolonged stalling. It features manual or automatic reset options, trip indication, and compatible screw clamp or lug terminal types. Suitable for contactors rated up to 690V, it has a rated thermal current of 40A and includes trip class 10 or 20 protection functions. The relay conforms to IEC standards with IP 20 protection, operating temperature from -5°C to +60°C, and is ideal for industrial motor protection applications.
CARLO GAVAZZI GT95L40A Overload Relay Specifications:
- Trip class: 10 or 20
- Rated operational voltage: 690V
- Rated insulation voltage: 690V
- Rated impulse voltage: 6kV
- Degree of protection: IP 20
- Temperature range: -5°C to +60°C
- Number of poles: 3
- Terminal type: Screw Clamp or Lug
- Rated current: 40A
- Rated thermal current: 40A
- Applied contactors: CC130, CC150
- Functions: Trip indication, Stop, Test, Manual/Automatic Reset
- Wire size: 10-8 AWG
- Operating frequency: 50/60Hz
Buy the Buy Gavazzi GT95L40A Part Number GT95L40A Online
Purchase the Gavazzi GT95L40A overload relay online for dependable motor protection. It features manual or automatic reset, trip indication, and robust construction to withstand industrial conditions. Suitable for contactors rated up to 690V, rated current 40A, and trip classes 10 or 20, this relay ensures efficient overload protection for AC circuits and motors. Easy installation with screw clamp or lug terminals, IP 20 protection, and wide operating temperature range make it ideal for various industrial motor applications. Order now for optimal motor safety.
Get Gavazzi GT95L40A today—built for reliable motor overload protection in industrial environments.
Frequently Asked Questions
Where can I buy CARLO GAVAZZI GT95L40A?
You can click on the BUY or RFQ button to purchase GT95L40A from an authorized CARLO GAVAZZI distributor.
How do I troubleshoot issues or seek technical support for part GT95L40A?
You can download the GT95L40A datasheet or visit the CARLO GAVAZZI website for support.
Who is the manufacturer of GT95L40A?
CARLO GAVAZZI
