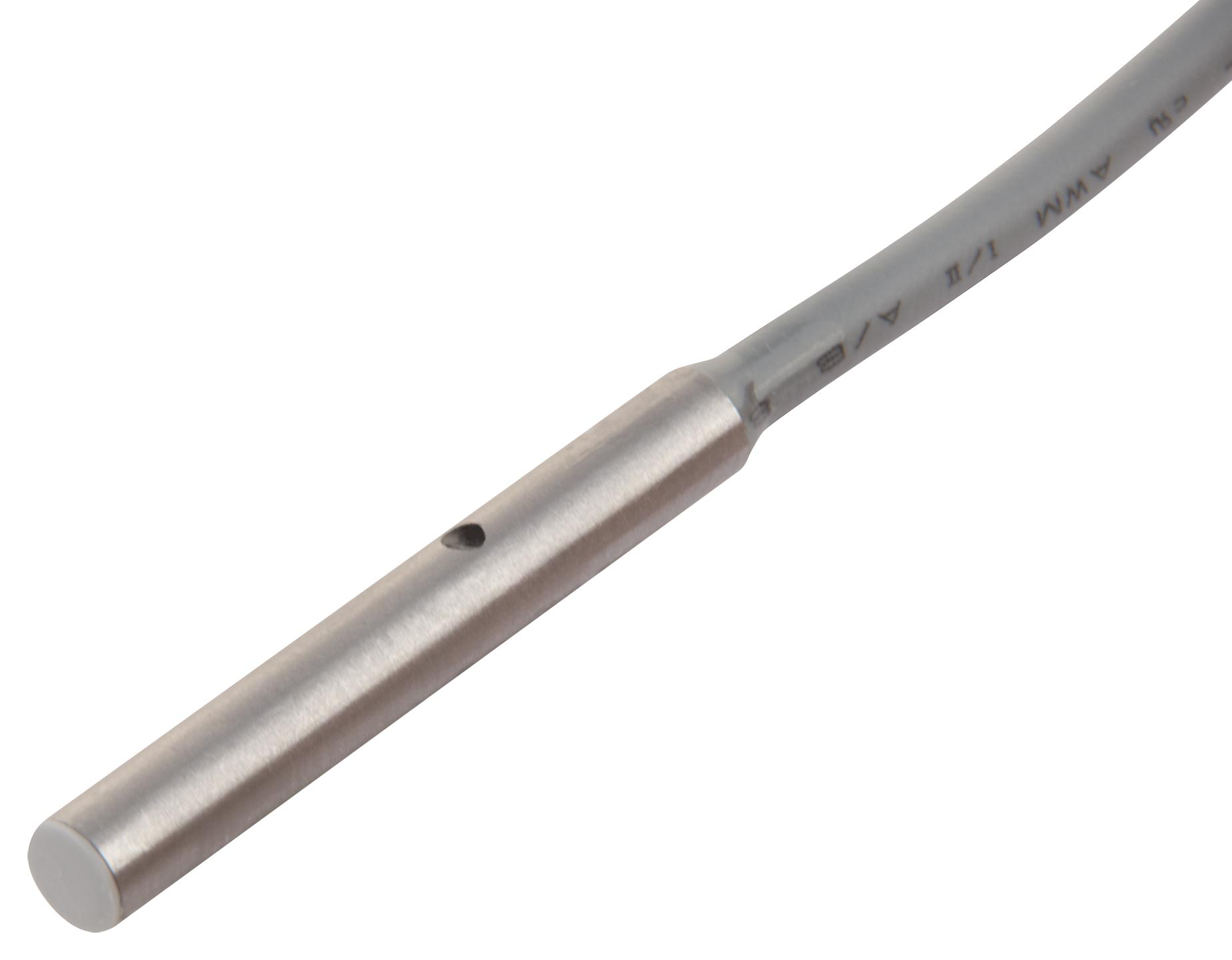

CARLO GAVAZZI IBS04SF15A2NO Proximity Sensor
The IBS04 series comprises miniature inductive proximity sensors designed for industrial automation. Featuring IO-Link communication, these stainless steel sensors offer high detection speed up to 6 kHz, with sensing distances of 0.8 or 1.3 mm. They are ideal for space-constrained applications like robotic sensing and micro-mechanism control. Enclosed in robust stainless steel housings, they support configurable outputs (PNP/NPN), adjustable sensing distances, hysteresis, and temperature alarms. Easy to install with options for cable or plug connections, these sensors provide reliable, stable operation across a wide temperature range.
CARLO GAVAZZI IBS04SF15A2NO Proximity Sensor Specifications:
- Supply Voltage: 10 to 30 VDC
- Output: NPN or PNP, normally open or closed, 100 mA max, voltage drop max 1.2 V
- Sensing Distance: 0.8 mm standard, 1.3 mm extended range, adjustable via IO-Link
- Response Frequency: Up to 6 kHz
- Environmental Temperature: -25°C to +70°C
- Protection Class: IP67
- Housing Material: Stainless steel AISI304
- Connection: 2 m PVC cable or M8 plug, 3-pin connector
- Vibration Resistance: IEC 60068-2-6
- Shock Resistance: IEC 60068-2-27
- EMC Immunity: IEC 61000-4 series, 8KV air discharge
- Dimensions: Short body, 17.7 mm length with flush mounting, sensor diameter 4 mm or 5 mm.
Buy the Buy Carlo Gavazzi IBS04 Series Proximity Sensor Part Number IBS04SF15A2NO Online
Order the Carlo Gavazzi IBS04SF15A2NO proximity sensor online for reliable, high-speed metal detection in tight spaces. Its stainless steel housing ensures durability, while configurable outputs and IO-Link interface allow easy integration and setup. Suitable for robotics, tool selection, and micro-mechanisms, this sensor delivers stable performance across various environments. Enhance your automation system today by purchasing this robust sensor online, ensuring precise detection, quick installation, and long-lasting operation in demanding industrial applications.
Get Carlo Gavazzi IBS04SF15A2NO today—compact stainless steel proximity sensor with IO-Link communication and high-speed detection for precise industrial automation.
Frequently Asked Questions
Where can I buy CARLO GAVAZZI IBS04SF15A2NO?
You can click on the BUY or RFQ button to purchase IBS04SF15A2NO from an authorized CARLO GAVAZZI distributor.
How do I troubleshoot issues or seek technical support for part IBS04SF15A2NO?
You can download the IBS04SF15A2NO datasheet or visit the CARLO GAVAZZI website for support.
Who is the manufacturer of IBS04SF15A2NO?
CARLO GAVAZZI
