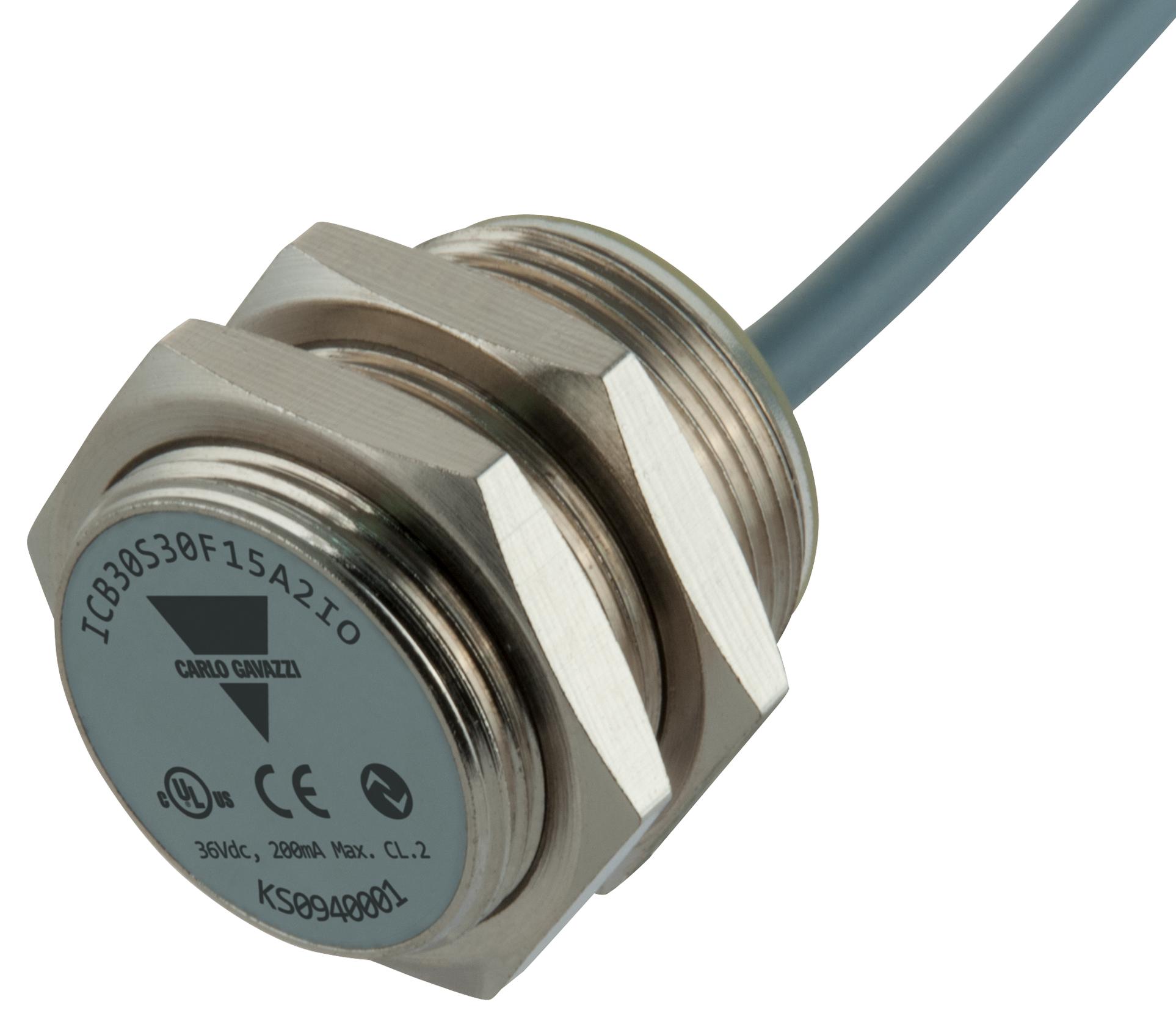

CARLO GAVAZZI ICB30S30F15A2IO Inductive Proximity Sensor
The ICB30S30F15A2IO is a high-performance inductive proximity sensor with IO-Link communication, designed for contactless detection of metallic objects up to 22mm. Enclosed in a robust nickel-plated brass housing, it offers configurable sensing distances, hysteresis, and switching modes via IO-Link. Suitable for industrial automation tasks such as material handling and machine monitoring, it provides reliable, wear-free operation with diagnostic functions, adjustable delays, and temperature alarms. It is available in M30 flush or non-flush versions with oil-proof PVC cables, ensuring durability and precise detection in harsh environments.
CARLO GAVAZZI ICB30S30F15A2IO Inductive Proximity Sensor Specifications:
- Housing Material: Nickel-plated brass
- Housing diameters: M12, M18, M30
- Sensing distance: 4 to 22 mm depending on version
- Temperature range: -25°C to +70°C operating, -30°C to +80°C storage
- Connection: 2m PVC cable or M12 disconnect plug, oil-proof
- Output: PNP/NPN/Push-pull, configurable via IO-Link
- Response time: Less than 1.5ms
- Protection: IP67, short-circuit, reverse polarity, transient protection
- Power supply: 10-36 VDC, current < 20mA
- Output current: Up to 200mA
- Mechanical: Flush or non-flush mounting, max torque: 30 Nm for M30
- Weight: Up to 226g depending on version
- Standards: IEC 60947-5-2, EN 60529
- Environmental: Shock and vibration resistant, EMC protected
Buy the Carlo Gavazzi Series ICB IO-Link Proximity Sensor: ICB30S30F15A2IO
Purchase the Carlo Gavazzi Series ICB30S30F15A2IO online now and benefit from a durable, high-performance inductive sensor with configurable sensing distances. Enclosed in a nickel-plated brass housing, it ensures wear-free detection of metal objects within 22mm. Its IO-Link communication allows easy configuration, diagnostics, and integration into automation systems. Ideal for packaging lines, material handling, and machine monitoring, this sensor offers reliable operation under harsh conditions, with adjustable delays and temperature alarms, making it the perfect choice for industrial environments.
Order your Carlo Gavazzi Series ICB30S30F15A2IO today and ensure reliable, contactless metallic detection with advanced IO-Link features for industrial automation.
