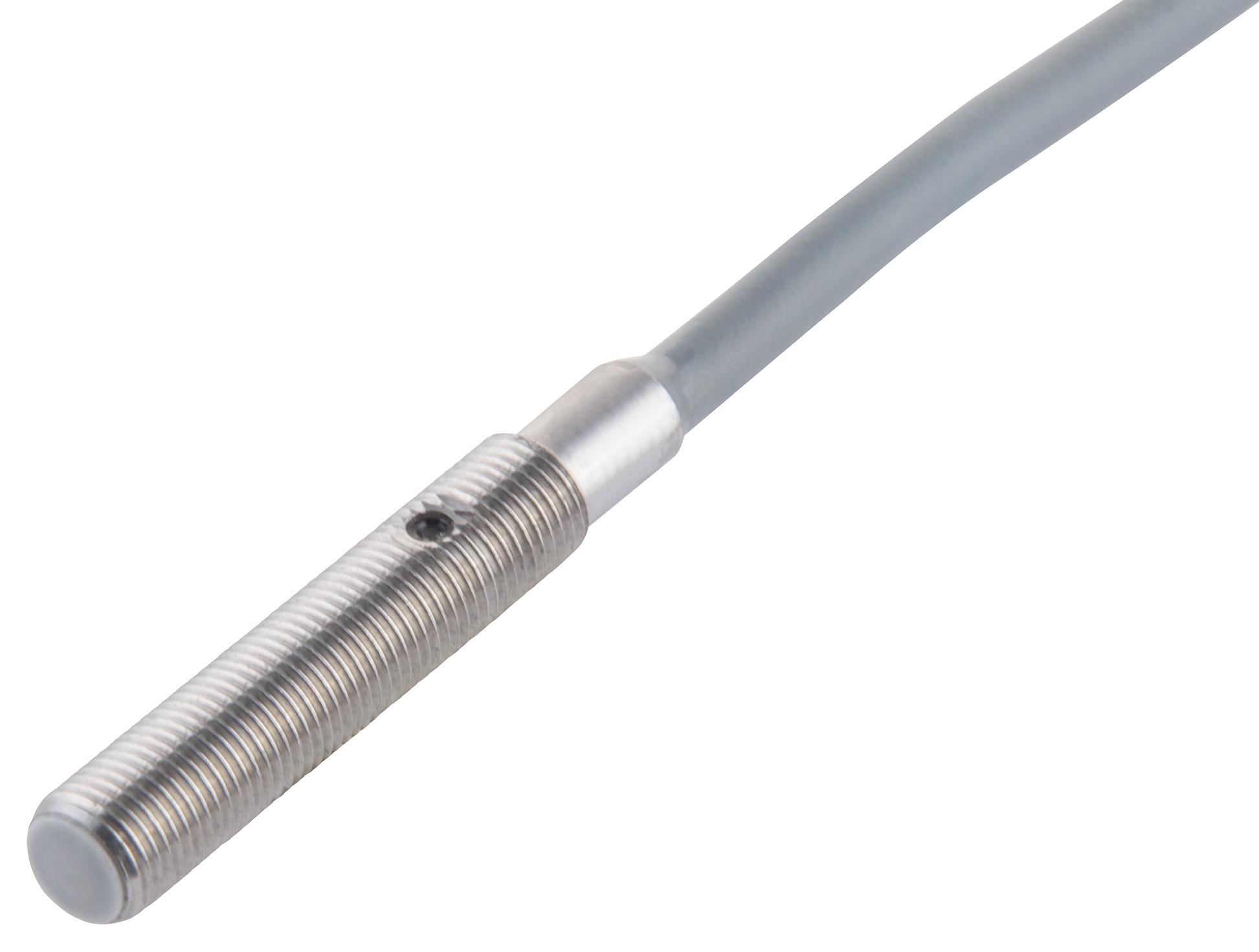

CARLO GAVAZZI ICS05S23F15A2IO Inductive Proximity Sensor
The ICS05S23F15A2IO is a high-precision, stainless steel housing inductive proximity sensor with IO-Link communication, suitable for space-constrained industrial automation. It offers adjustable sensing distances of 0.8mm or 1.3mm, with configurable output modes (PNP/NPN), and supports relay or push-pull functions. Equipped with diagnostic LEDs and various mounting options, it provides reliable detection of metal objects at frequencies up to 6 kHz. Suitable for applications like tool detection, robotics, and micro-mechanism control, it ensures stability across -25°C to +70°C with IP67 protection.
CARLO GAVAZZI ICS05S23F15A2IO Inductive Proximity Sensor Specifications:
- Power supply voltage: 10 to 30 VDC
- Output types: PNP/NPN, configurable via IO-Link
- Maximum output current: 100 mA
- Voltage drop: Max. 1.2 VDC @ 100 mA
- Reaction time: Up to 6 kHz detection frequency
- Operating temperature: -25°C to +70°C
- Protection rating: IP67
- Housing material: AISI304 stainless steel
- Connection: 2m PVC cable or M8 quick disconnect, 3-pin male
- Sensing distances: 0.8mm (short range) and 1.3mm (extended range)
- Hysteresis: 1% to 20%
- Environmental resistance: Vibration, shock, and EMC compliance
Buy the Carlo Gavazzi ICS05S23F15A2IO – Reliable Inductive Proximity Sensor for Industrial Applications
Enhance your industrial automation setup with the Carlo Gavazzi ICS05S23F15A2IO inductive proximity sensor. Featuring stainless steel housing, adjustable sensing distances of 0.8mm or 1.3mm, and configurable PNP/NPN outputs via IO-Link, this sensor ensures high-precision metal detection in space-limited environments. It offers rapid response times up to 6 kHz, reliable performance across temperatures from -25°C to +70°C, and protection class IP67. Easy to install with cable or M8 connectors, it’s perfect for tool detection, robotics, and micro-mechanism controls, ensuring dependable operation in demanding industrial conditions.
Order your Carlo Gavazzi Series ICS05S23F15A2IO today and enhance your automation systems with a high-precision, robust inductive sensor featuring IO-Link versatility.
Frequently Asked Questions
Where can I buy CARLO GAVAZZI ICS05S23F15A2IO?
You can click on the BUY or RFQ button to purchase ICS05S23F15A2IO from an authorized CARLO GAVAZZI distributor.
How do I troubleshoot issues or seek technical support for part ICS05S23F15A2IO?
You can download the ICS05S23F15A2IO datasheet or visit the CARLO GAVAZZI website for support.
Who is the manufacturer of ICS05S23F15A2IO?
CARLO GAVAZZI
