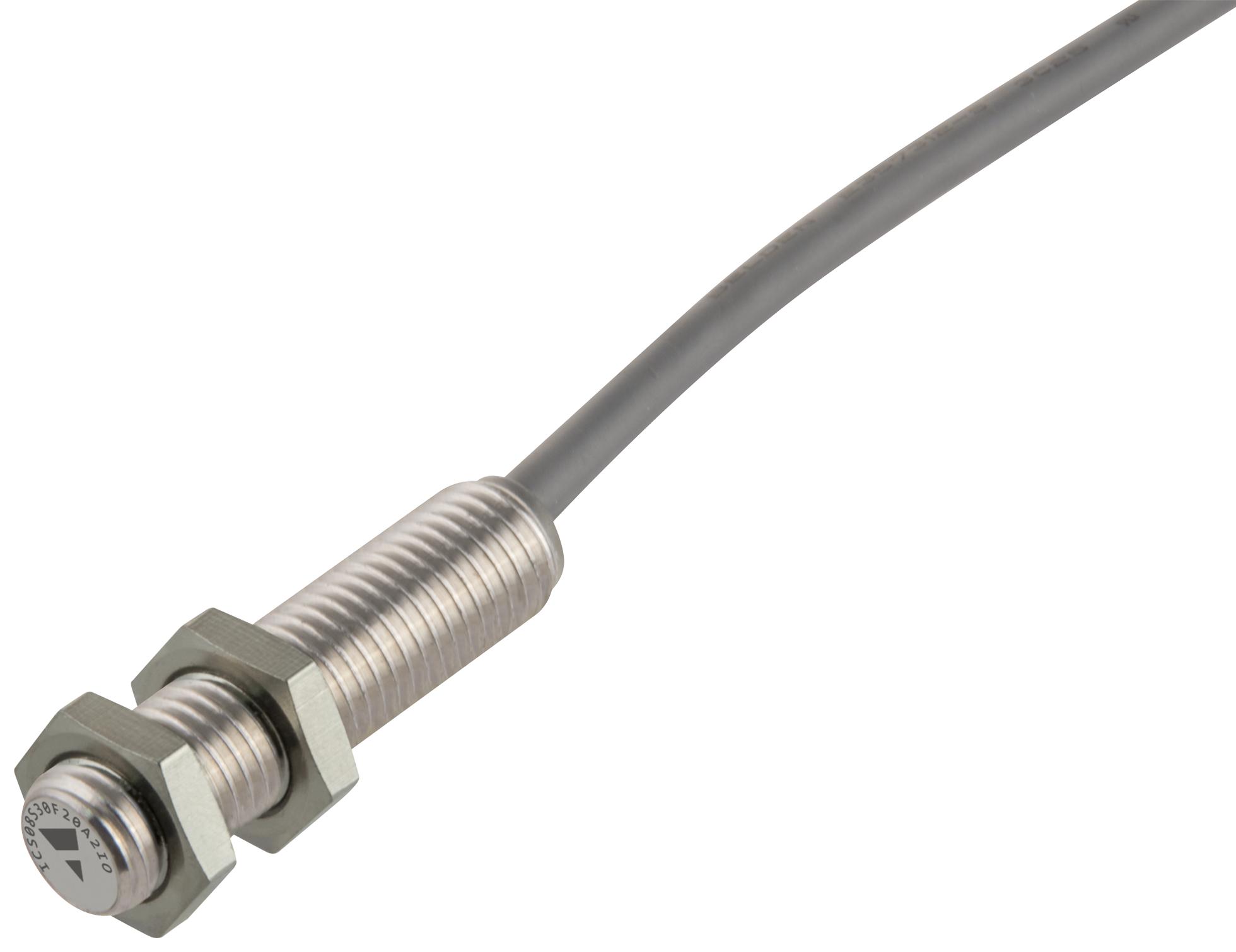

CARLO GAVAZZI ICS08S30F20A2IO Inductive Proximity Sensor
The ICS08 series features compact, stainless steel inductive proximity sensors with IO-Link communication, suitable for space-constrained industrial automation. Offering sensing distances of 2mm and 4mm with flush or non-flush mounting options, these sensors deliver high stability and repeatability over -25°C to +80°C. They enable easy configuration, including adjustable sensing distance, hysteresis, and timer functions via IO-Link. Designed for metal detection, rotational speed monitoring, and presence sensing in industrial environments, they ensure reliable operation with diagnostic LED indicators and robust IP67 protection.
CARLO GAVAZZI ICS08S30F20A2IO Inductive Proximity Sensor Specifications:
- Housing Material: Stainless steel AISI304
- Sensing distances: 2mm or 4mm, adjustable via IO-Link
- Mounting: Flush or non-flush mounting options
- Power Supply: 10 to 30 VDC
- Output: NPN or PNP, normally open or normally closed, configurable via IO-Link
- Output current: 100 mA, voltage drop: max 1.2 VDC @ 100 mA
- Temperature Range: -25°C to +80°C
- Protection: IP67, short-circuit, reverse polarity, transient suppression
- Environmental: Vibration 10-55Hz, amplitude 1mm; Shock 30G/11ms
- Response time: approx. 2 KHz frequency
- Compliant with IEC 60947-5-2, IEC 61000-4 series
- Weight: Short version approx. 44.8g, long version approx. 47g
- Connection: PVC cable (2m, 3x 0.14mm²) or M8 quick disconnect plug
- Diagnostics: LED indicator for output status, short circuit, overload
- Protection class: IP67
- Approval: CE, IO-Link
Buy the ICS08 Series – Reliable Inductive Sensors for Industrial Automation
Purchase the ICS08 inductive proximity sensor online today and benefit from advanced IO-Link connectivity, precise metal detection, and robust stainless steel construction. Ideal for industrial environments requiring space-efficient sensing with adjustable parameters, these sensors provide reliable operation, diagnostic feedback, and flexible mounting options. Enhance your automation processes with easy configuration, high stability, and durable IP67 protection. Order now to include these versatile, high-performance sensors in your industrial toolkit for improved efficiency and safety.
Order your ICS08 inductive proximity sensor today and enhance your industrial automation systems with reliable space-saving metal detection solutions.
Frequently Asked Questions
Where can I buy CARLO GAVAZZI ICS08S30F20A2IO?
You can click on the BUY or RFQ button to purchase ICS08S30F20A2IO from an authorized CARLO GAVAZZI distributor.
How do I troubleshoot issues or seek technical support for part ICS08S30F20A2IO?
You can download the ICS08S30F20A2IO datasheet or visit the CARLO GAVAZZI website for support.
Who is the manufacturer of ICS08S30F20A2IO?
CARLO GAVAZZI
