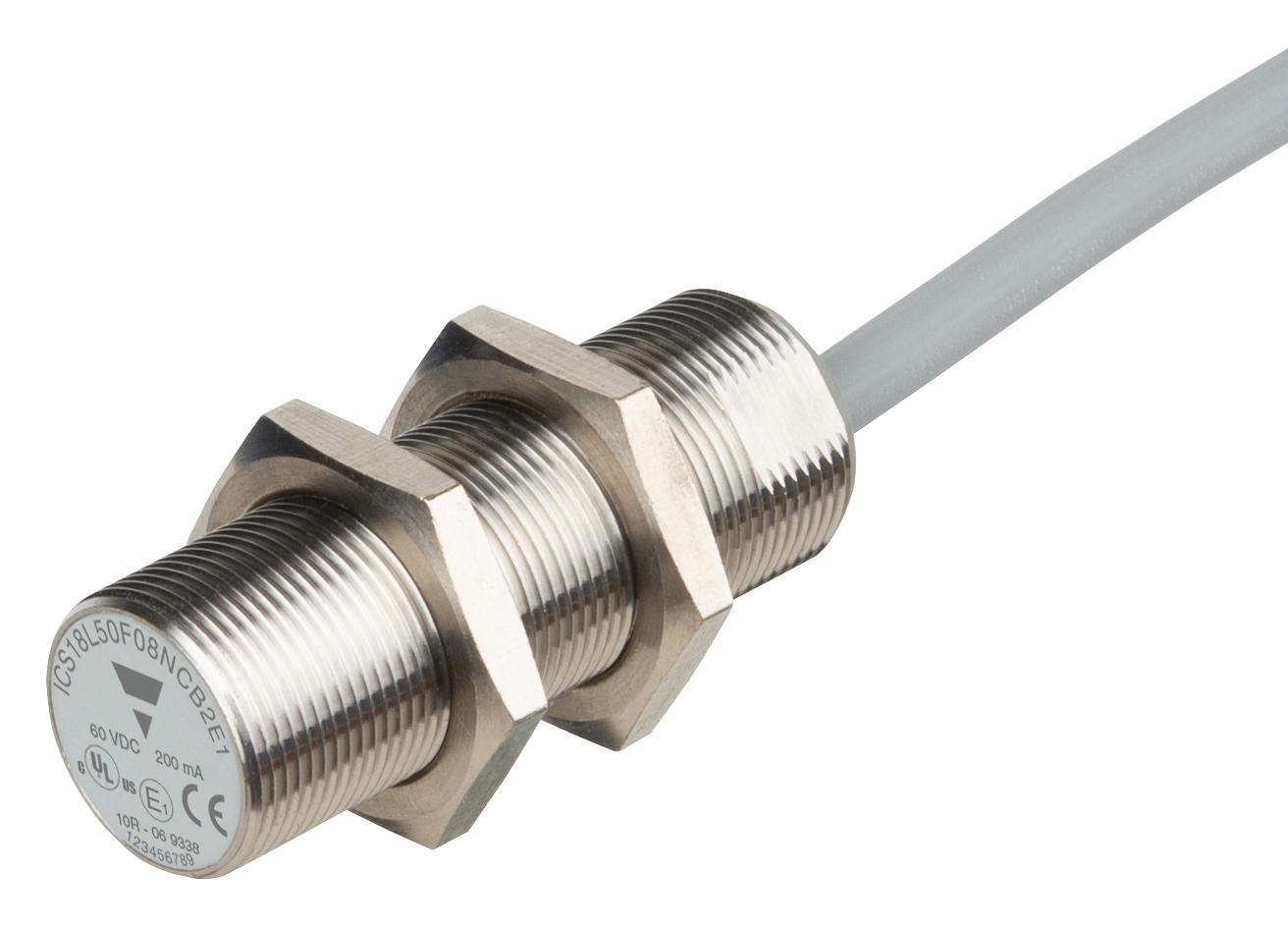

CARLO GAVAZZI ICS18L50F08POB2E1 Inductive Proximity Sensor
The ICS18 inductive proximity sensor from Carlo Gavazzi's E1 series offers high durability, extended sensing ranges up to 14 mm, and robust stainless steel housing suitable for harsh outdoor mobile applications. It features an extended operating distance, resistance to extreme environmental conditions, and complies with automotive standards (E1 approval). The sensor supports NPN and PNP outputs, with configuration options for flush or non-flush mounting, and includes built-in diagnostic LEDs for easy troubleshooting. Ideal for trucks, earth-moving, agricultural, and mobile crane equipment, it ensures reliable metal detection in challenging environments.
CARLO GAVAZZI ICS18L50F08POB2E1 Inductive Proximity Sensor Specifications:
- Housing Material: Stainless steel
- Sensing Distance: Up to 14 mm depending on housing and version
- Mounting Types: Flush and non-flush
- Output Types: NPN (normally open, normally closed), PNP (normally open, normally closed)
- Supply Voltage: 8 to 60 V DC
- Electrical Connection: M12 4-pin connector or 2 m PUR cable
- Protection: IP67, IP68 (submersion), IP69K
- Operating Temperature: -40°C to +85°C
- Shock Resistance: 100 g, 11 ms, in all directions
- Vibration Resistance: 20 g, 10-3000 Hz in 3 axes
- Response Frequency: up to 900 Hz depending on mounting
- Certification: E1 approval by German Federal Motor Transport Authority
- Ambient Humidity: up to 95%
- Environmental Resistance: Salt spray, rapid temperature changes
- Mechanical Load: Max torque 50 Nm for M30 version
Buy the Carlo Gavazzi Series E1 ICS18 Inductive Sensor: ICS18L50F08POB2E1
Order the Carlo Gavazzi ICS18L50F08POB2E1 inductive proximity sensor online today to benefit from its extended sensing range, high environmental resistance, and automotive-grade E1 approval. Designed for outdoor and mobile equipment, this sensor ensures stable metal detection even in harsh conditions. It features easy mounting options, robust stainless steel housing, and versatile output configurations. Perfect for trucks, earth-moving machines, and agriculture equipment, order now for quick delivery and reliable performance in demanding environments.
Get Carlo Gavazzi ICS18L50F08POB2E1 today—built for durability, extended sensing, and reliable outdoor mobile applications.
