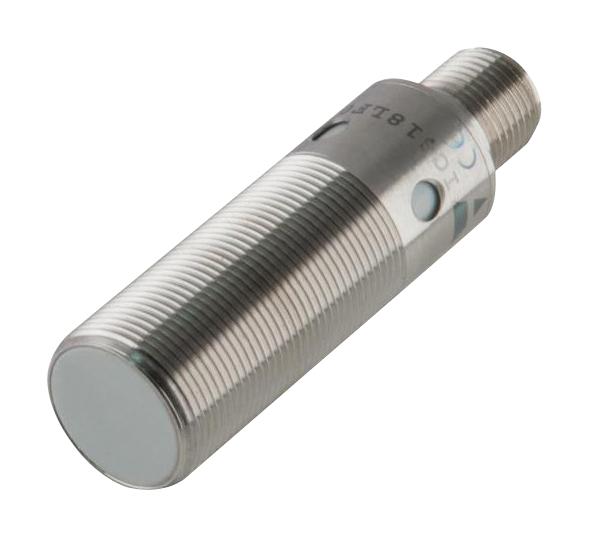

CARLO GAVAZZI ICS18LF05POM1FB Inductive Proximity Sensor
The inductive proximity sensor is stainless steel (AISI 316L) and suitable for food and beverage applications, resistant to high-pressure cleaning agents and disinfectants. It features sensing distances from 5 to 12 mm, with flush or non-flush mount options in IP69K-rated housing. The sensor operates at 10 - 36 VDC, with PNP or NPN outputs, normally open or normally closed configurations, and LED indicators for output status, overload, and short-circuit. It is certified for hazardous locations, with a durable, FDA-certified plastic housing, and is designed for precise, reliable detection in harsh washdown environments.
CARLO GAVAZZI ICS18LF05POM1FB Inductive Proximity Sensor Specifications:
- Housing Material: Stainless steel AISI 316L
- Sensing Distance: 5 to 12 mm
- Rated Operating Voltage: 10 - 36 VDC
- Output: DC 200 mA, NPN or PNP
- Output Configuration: Normally open or normally closed
- Protection: Reverse polarity, short circuit, transients
- Ingress Protection: IP69K, IP67, IP68 (1 m, 7 days)
- Temperature Range: -40°C to +80°C
- Shock and Vibration: IEC 60947-5-2/7.4
- Housing dimensions vary, typical diameter 18 mm, length approx. 23-26 mm
- Connection: M12 plug or cable with angled or straight connector
- Compatible with high-pressure washdown and aggressive cleaning agents
- Certifications: Ecolab, FDA, cULus, CSA, UL508, Hazardous Locations Class I Div 2
Buy the Buy Carlo Gavi Proximity Sensor Part Number ICS18LF05POM1FB Online
Order the Carlo Gavi inductive proximity sensor ICS18LF05POM1FB online for reliable, high-precision detection in food, beverage, and industrial processing. Designed with stainless steel housing for maximum resistance to high-pressure cleaning, chemical agents, and extreme temperatures, this sensor offers sensing distances from 5 to 12 mm, with versatile IP69K protection. It features NPN or PNP outputs, LED indicators for status, and compliance with safety standards including FDA and hazardous location certifications. A perfect choice for demanding washdown applications, ensuring durability, safety, and consistent performance.
Get Carlo Gavi ICS18LF05POM1FB today—built for precise detection and durable performance in harsh environments.
Frequently Asked Questions
Where can I buy CARLO GAVAZZI ICS18LF05POM1FB?
You can click on the BUY or RFQ button to purchase ICS18LF05POM1FB from an authorized CARLO GAVAZZI distributor.
How do I troubleshoot issues or seek technical support for part ICS18LF05POM1FB?
You can download the ICS18LF05POM1FB datasheet or visit the CARLO GAVAZZI website for support.
Who is the manufacturer of ICS18LF05POM1FB?
CARLO GAVAZZI
