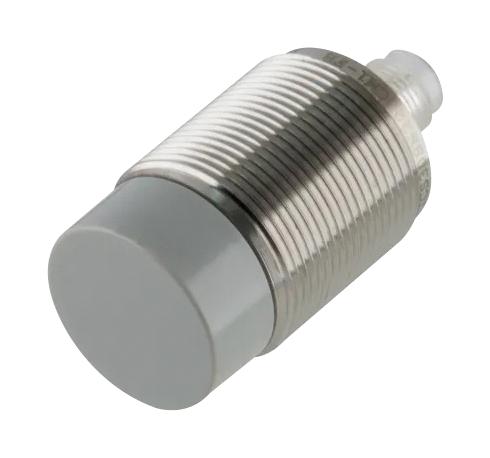

CARLO GAVAZZI ICS30SN15POM1FB Inductive Proximity Sensor
The ICS30SN15POM1-FB is a stainless steel proximity sensor designed for food and beverage applications, offering high pressure and temperature resistance. It features a sensing distance of 15 mm, operates at 10-36 VDC with outputs configurable as NPN or PNP, normally open or closed. The sensor is fully sealed, IP69K-rated, Ecolab and FDA certified, suitable for washdown environments, and provides LED output indication, reverse polarity, short circuit, and transient protection. It is a reliable, food-safe, heavy-duty inductive proximity switch for demanding industrial settings.
CARLO GAVAZZI ICS30SN15POM1FB Inductive Proximity Sensor Specifications:
- Housing Material: Stainless steel (AISI 316L)
- Sensing Distance: 15 mm
- Operation Voltage: 10 to 36 VDC (Ripple included)
- Output: NPN or PNP, normally open or closed
- Maximum Output Current: 200 mA at 50°C
- Protection Class: IP69K, IP67
- Operating Temperature: -40°C to +85°C
- Ambient Temperature Range: -25°C to +60°C
- Connection: M12 connector, 4-wire
- Shock and Vibration: Compliant with IEC 60947-5-2/7.4
- Housing Dimensions: Length 67.5 mm, Diameter 30 mm
- Glow LED Indication: Output ON, overload, short circuit
- Protection: Reverse polarity, transient and short circuit protection
- Effective Sensing Distance Range: 0.85 x S to 1.15 x S
- Repeat Accuracy: 55% of sensing distance
- Hysteresis: 1 to 20% of sensing distance
- Mounting: Flush and non-flush options, suitable for damping materials
- Certification: CE, UL, CSA, IEC 60947-5-2, T5 Enclosure Type 4
Buy the Carlo Gavazzi Series ICS Inductive Proximity Sensor: ICS30SN15POM1-FB
Order the Carlo Gavazzi ICS30SN15POM1-FB today and ensure reliable detection in high-pressure washdown environments. Crafted from stainless steel, it is FDA and Ecolab certified, making it ideal for food and beverage processing. Its robust IP69K rating guarantees resistance to harsh cleaning agents, while its configurable NPN/PNP outputs support flexible automation. Easy to install with M12 connectors, this sensor combines durability, precision, and safety to optimize your industrial processes. Purchase online now for fast delivery and dependable performance.
Buy Carlo Gavazzi ICS30SN15POM1-FB now and experience unmatched durability, high-pressure washdown resistance, and food-safe certification for demanding industrial environments.
