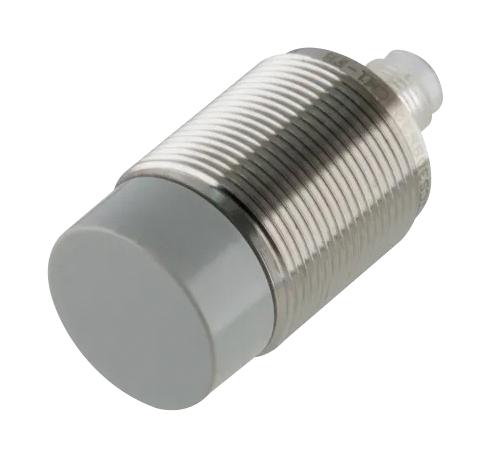

CARLO GAVAZZI ICS30SN22POM1FB Inductive Proximity Sensor
The inductive proximity sensor ICS30SN22POM1FB features a stainless steel housing, IP69K protection, and a sensing distance of 22 mm, suitable for high-pressure washdowns and harsh environments. It operates with a rated voltage of 10-36 VDC, with output options including NPN or PNP configurations, normally open or closed. Certified for hazardous locations and compliant with IEC 60947-5-2, it offers reverse polarity, short circuit, and transient protection. The sensor includes LED indicators for output status, has an operating temperature range from -40°C to +85°C, and is ideal for food and beverage applications requiring durability and reliability.
CARLO GAVAZZI ICS30SN22POM1FB Inductive Proximity Sensor Specifications:
- Housing Material: Stainless steel (AISI 316L)
- Protection: IP69K, IP67
- Sensing Distance: 22 mm, effective sensing distance 0.85 x S to 1.15 x S
- Rated Operational Voltage: 10-36 VDC, ripple included
- Output: NPN or PNP, normally open or closed
- Output Current: < 200 mA @ 50°C
- Voltage Drop: Max. 2 VDC @ 200 mA
- Response Time: < 20 ms delay, operating frequency < 1000 Hz
- Ambient Temperature: -40°C to +85°C, storage -40°C to +85°C
- Protection: Reverse polarity, short circuits, transients
- Indicators: Yellow LED for output ON, overload, short circuit
- Shock and Vibration: IEC 60947-5-2/7.4
- Housing Dimensions: Lengths vary, approx. 47.5 mm - 79.5 mm
- Connection: M12x1, 4-wire, with straight or angled cables
- Compliance: UL 508, cULus, IEC 61000-4-x standards
- Weight: Max 130g
- Application: Suitable for high-pressure washdowns, food, and beverage industry environments
Buy the Carlo Gavazzi ICS30SN22POM1FB – Reliable Inductive Proximity Sensor for Industrial Applications
Purchase Carlo Gavazzi inductive proximity sensors online today for reliable performance in demanding industrial environments. Designed with stainless steel housing, IP69K protection, and a sensing distance of 22 mm, the sensor ensures durability against high-pressure washdown and chemical exposure. It features NPN or PNP output options, LED indicators for status, and is certified for hazardous locations. Ideal for food, beverage, and manufacturing industries, this sensor provides precise detection with a wide temperature range of -40°C to +85°C, ensuring long-lasting operational reliability.
Get Carlo Gavazzi ICS30SN22POM1FB today—built for durability in harsh environments with high pressure resistance.
Frequently Asked Questions
Where can I buy CARLO GAVAZZI ICS30SN22POM1FB?
You can click on the BUY or RFQ button to purchase ICS30SN22POM1FB from an authorized CARLO GAVAZZI distributor.
How do I troubleshoot issues or seek technical support for part ICS30SN22POM1FB?
You can download the ICS30SN22POM1FB datasheet or visit the CARLO GAVAZZI website for support.
Who is the manufacturer of ICS30SN22POM1FB?
CARLO GAVAZZI
