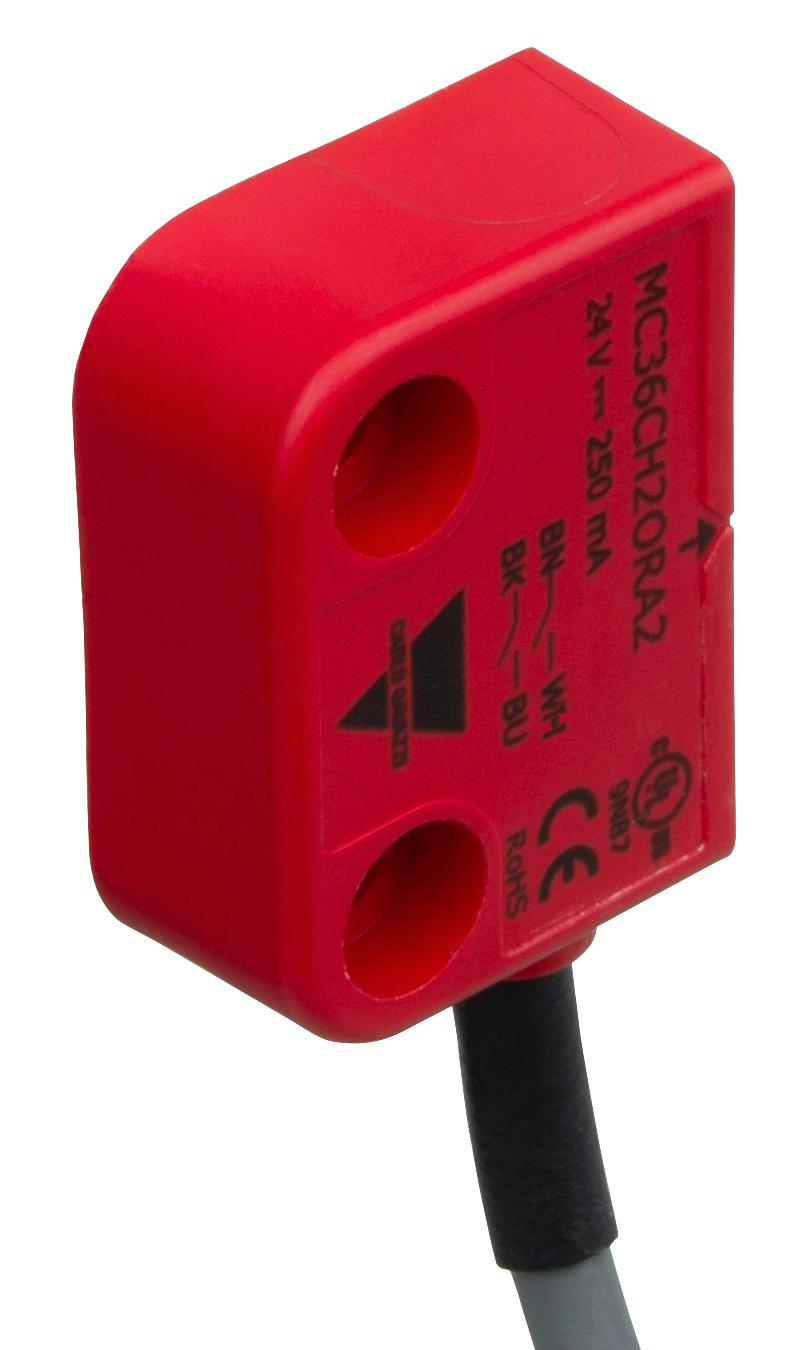

CARLO GAVAZZI MC36CH2ORA2L Safety Magnet Sensor
The MC36C series safety magnetic sensors are compact, high-performance devices designed for monitoring safety gates and guards in industrial environments. With reinforced PBT casings and IP67 rating, they resist dust and water, operating from -25°C to +80°C. Equipped with various output options, including 2NO or 1NO + 1NC, and available with LED indicators, these sensors ensure reliable, contactless actuation. They meet safety standards up to Cat. 4 PL in accordance with EN ISO 13849-1, making them ideal for harsh, dusty conditions in automated machinery safety systems.
CARLO GAVAZZI MC36CH2ORA2L Safety Magnet Sensor Specifications:
- Housing Material: PBT, red
- Dimensions: 36 x 26 x 13 mm
- Detection Distance: 5 mm with MC36CM actuator
- Switch-off Distance: 15 mm with MC36CM actuator
- Operating Temperature: -25°C to +80°C
- Ingress Protection: IP67
- Connection: M8 4-pin connector, 2m PVC cable
- Rated Operating Voltage: 12-24 Vac/dc
- Rated Operating Current: 0.25 A (resistive load)
- Max Switch Load: 6 W (resistive)
- Response Time: < 10 ms
- Maximum Frequency: 100 Hz
- Shock Resistance: 30.9 mS according to EN 60068-2-27
- Vibration Resistance: 10 g according to EN 60068-2-6
- Certifications: CE, cULus
- Safety Category: Up to 4, PLe
- Standards Compliance: EN ISO 13849-1, IEC 60947-5-1
- Mechanical Endurance: 80 million operations
- Weight: 35-75 g
Buy the Carlo Gavazzi Series MC36C Safety Magnetic Sensor: MC36CH2ORA2L
Discover the high-performance safety magnet sensor designed for demanding industrial applications. The MC36C series offers reliable, contactless detection with IP67 protection and broad temperature tolerance. Easy to install in dusty or humid environments, these sensors ensure safety compliance up to Cat. 4 PL according to EN ISO 13849-1. With multiple mounting options, LED indicators, and robust design, they provide a dependable solution for guarding and safety gate monitoring systems. Order online now for fast, secure delivery.
Get Carlo Gavazzi MC36CH2ORA2L today—built for precision and long-lasting durability in safety gate monitoring.
