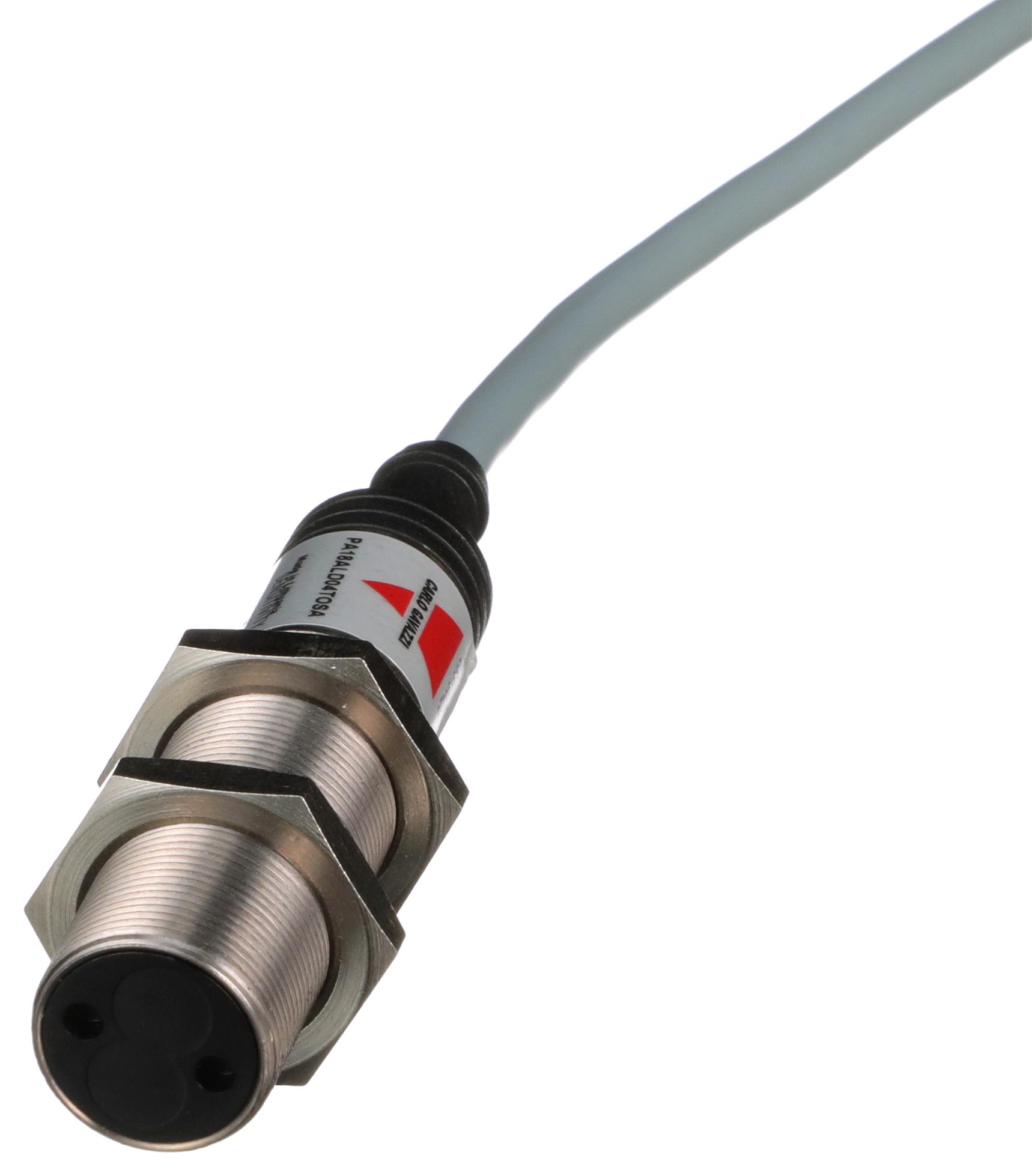

CARLO GAVAZZI PA18ALD04TOSA Diffuse Reflective Sensor
The PA18ALD family consists of general-purpose diffuse reflective photoelectric sensors housed in an industrial 18mm cylindrical, nickel-plated brass casing suitable for heavy-duty applications. These sensors are equipped with a 400mm adjustable sensing range and use modulated infrared light for detection. They operate on a supply voltage of 20 to 250VAC and feature a 500mA SCR output with make or break switching capabilities and LED indicators. Designed with high immunity to ambient light, the sensors come in a rugged M18 metal housing with IP67 protection. The package includes the sensor, two nuts, and is supplied in a plastic bag.
CARLO GAVAZZI PA18ALD04TOSA Diffuse Reflective Sensor Specifications:
- Housing material: Nickel-plated brass
- Housing size: M18
- Detection principle: Diffuse-reflective
- Detection range: Up to 400 mm adjustable
- Light source: Infrared, modulated, 880 nm
- Supply voltage: 20 to 250 VAC, 45-65 Hz
- Output: 500 mA SCR, make or break switching
- Response time: <20ms (ON), <30ms (OFF)
- Environmental protection: IP67
- Ambient light immunity: Max 10,000 lux
- Operating temperature: -20°C to +60°C
- Protection class: Overvoltage category II
- Cable length: 2m (gray PVC cable)
- Connections: Cable or M12 plug, UL and CSA approved
Buy the Carlo Gavazzi Series PA18 Diffuse Reflective Sensor: PA18ALD04T
Purchase the Carlo Gavazzi PA18ALD04T diffuse reflective sensor online today and experience reliable, heavy-duty detection with an adjustable 400mm range. This industrial-grade sensor features a rugged M18 nickel-plated brass housing, IP67 protection, and infrared modulated light for high immunity to ambient light. Ideal for automation and manufacturing, it operates on 20-250VAC with a 500mA SCR output. Simple to install with cable or plug options, this sensor ensures optimal performance in demanding environments, making it a valuable addition to your automation system.
Get Carlo Gavazzi PA18ALD04T today—built for industrial durability with high immunity to ambient light and adjustable sensing range.
