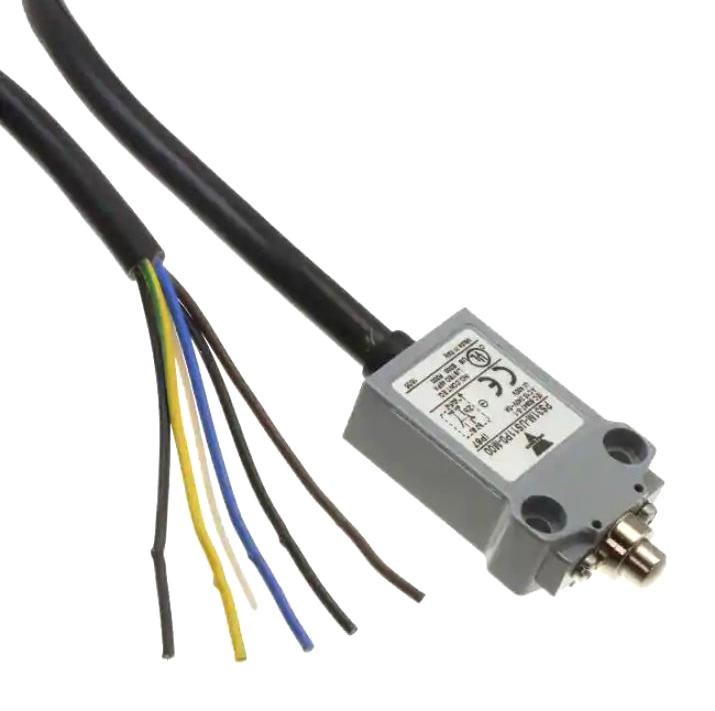

CARLO GAVAZZI PS31MUS11P9M00 Limit Switch
The limit switch provides reliable position control with a compact metal body and IP67 protection, suitable for demanding outdoor applications. It features epoxy resin sealing at the base, positive opening operation, and is immune to electromagnetic disturbances. Equipped with Zb type contact blocks with ratings of 10A current and 500V insulation voltage, it conforms to IEC 947-5-1 standards. The switch's versatile head options include nylon roller, metal roller, cross roller, and adjustable levers, facilitating precise actuation in various environments while meeting UL, CSA, CE, and RoHS certifications.
CARLO GAVAZZI PS31MUS11P9M00 Limit Switch Specifications:
- Body Material: Diecast zinc alloy
- Protection Degree: IP67
- Standard Compliance: IEC 947-5-1, EN 60947-5-1
- Rated insulation voltage: 500V
- Current Ith: 10A
- Dimensions: Ps 40mm body with 20mm fixed length, 1m prewired cable
- Actuation Force: Minimum 15N / 30Nm depending on model
- Temperature Range: -25°C to +70°C for operation, -25°C to +70°C storage
- Certification: UL, CSA, CE, RoHS
- Enclosure Rating: Type 4, 4X, 6 for outdoor use
- Contact Configuration: 1NO+1NC or 1NO+1NC slow
- Electrical Durability: Up to 5 million cycles
- Switching Frequency: Max 3600 cycles/hour
- Approvals include UL, CSA, IEC, EN
Buy the Buy Carlo Gavazzi Limit Switch Part Number PS31MUS11P9M00 Online
Purchase the Carlo Gavazzi Limit Switch PS31MUS11P9M00 online today. This compact, IP67-rated metal switch features epoxy sealing, multiple head options, and high durability. Designed for precise position control in industrial and outdoor environments, it withstands electromagnetic disturbances and heavy-duty use with a rated current of 10A and insulation voltage of 500V. Certified by UL, CSA, CE, and RoHS, this switch delivers reliable performance, ensuring your machinery operates smoothly and efficiently in demanding conditions.
Order your Carlo Gavazzi Limit Switch PS31MUS11P9M00 today and ensure reliable, durable position control for your industrial or outdoor applications.
Frequently Asked Questions
Where can I buy CARLO GAVAZZI PS31MUS11P9M00?
You can click on the BUY or RFQ button to purchase PS31MUS11P9M00 from an authorized CARLO GAVAZZI distributor.
How do I troubleshoot issues or seek technical support for part PS31MUS11P9M00?
You can download the PS31MUS11P9M00 datasheet or visit the CARLO GAVAZZI website for support.
Who is the manufacturer of PS31MUS11P9M00?
CARLO GAVAZZI
