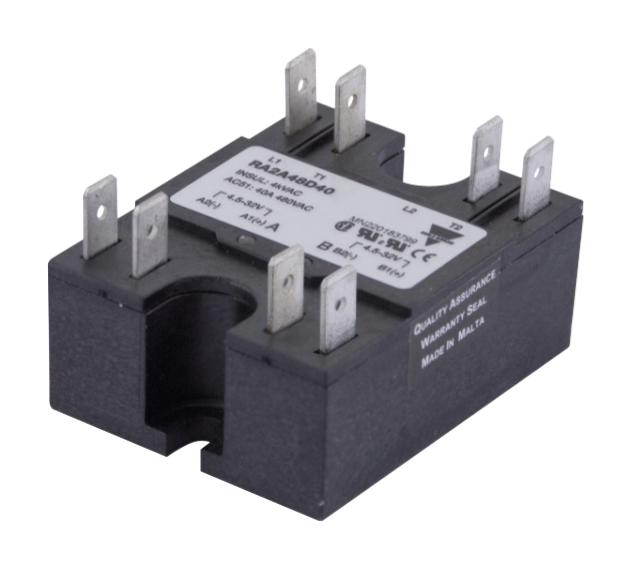

CARLO GAVAZZI RA2A48D40M Solid State Relay
The RA2A48D40M is a two-pole solid state relay designed for switching resistive and inductive AC loads up to 600 VAC and 40 AAC per pole. It features zero cross switching technology, back-to-back thyristor outputs, and direct copper bonding (DCB) for enhanced reliability. The device operates with a control voltage of 4.5 to 32 VDC, with LEDs indicating control status for each pole. Suitable for industrial applications such as plastic injection machines, ovens, and thermoformers, it ensures efficient power control with minimal space requirements.
CARLO GAVAZZI RA2A48D40M Solid State Relay Specifications:
- Rated voltage: 42 to 530 VAC, 1200 Vp blocking voltage
- Control voltage: 4.5-32 VDC, pick-up at 4.25 VDC, drop-out at 2.0 VDC
- Max operational current: 2 x 40 AAC, AC-51 mode
- Leakage current: <3mA at rated voltage
- Response time: <10 ms for pick-up and drop-out
- Max switching voltage: 600 VAC
- Operating temperature: -20°C to +70°C
- Thermal resistance junction to case: 0.5°C/W (2 poles)
- Isolation input/output to case: 4000 Vrms
- Dimensions: approximately 60g weight, 44.6 x 31.7 mm terminals
- Material: Noryl GFN 1, black, with Faston terminals 6.35 x 0.8 mm
- Standards: UL508, EN 60947-4-3, CE, RoHS compliant
- Suitable for industrial control and automation applications
Buy the Buy Carlo Gavazzi RA2A48D40M Part Number RA2A48D40M Online
Purchase the Carlo Gavazzi RA2A48D40M online now to benefit from advanced zero cross switching and high load capacity up to 600 VAC. Ideal for resistive and inductive loads, this reliable two-pole relay features a control voltage of 4.5 to 32 VDC and LEDs indicating control status for each pole. Its compact design with Faston terminals ensures easy installation in industrial environments like injection molding, ovens, and thermoformers. Enable efficient power switching and enhance your automation system by ordering online today.
Order your Carlo Gavazzi Series RA2A48D40M today and ensure reliable control for your industrial loads with zero cross switching technology.
Frequently Asked Questions
Where can I buy CARLO GAVAZZI RA2A48D40M?
You can click on the BUY or RFQ button to purchase RA2A48D40M from an authorized CARLO GAVAZZI distributor.
How do I troubleshoot issues or seek technical support for part RA2A48D40M?
You can download the RA2A48D40M datasheet or visit the CARLO GAVAZZI website for support.
Who is the manufacturer of RA2A48D40M?
CARLO GAVAZZI
