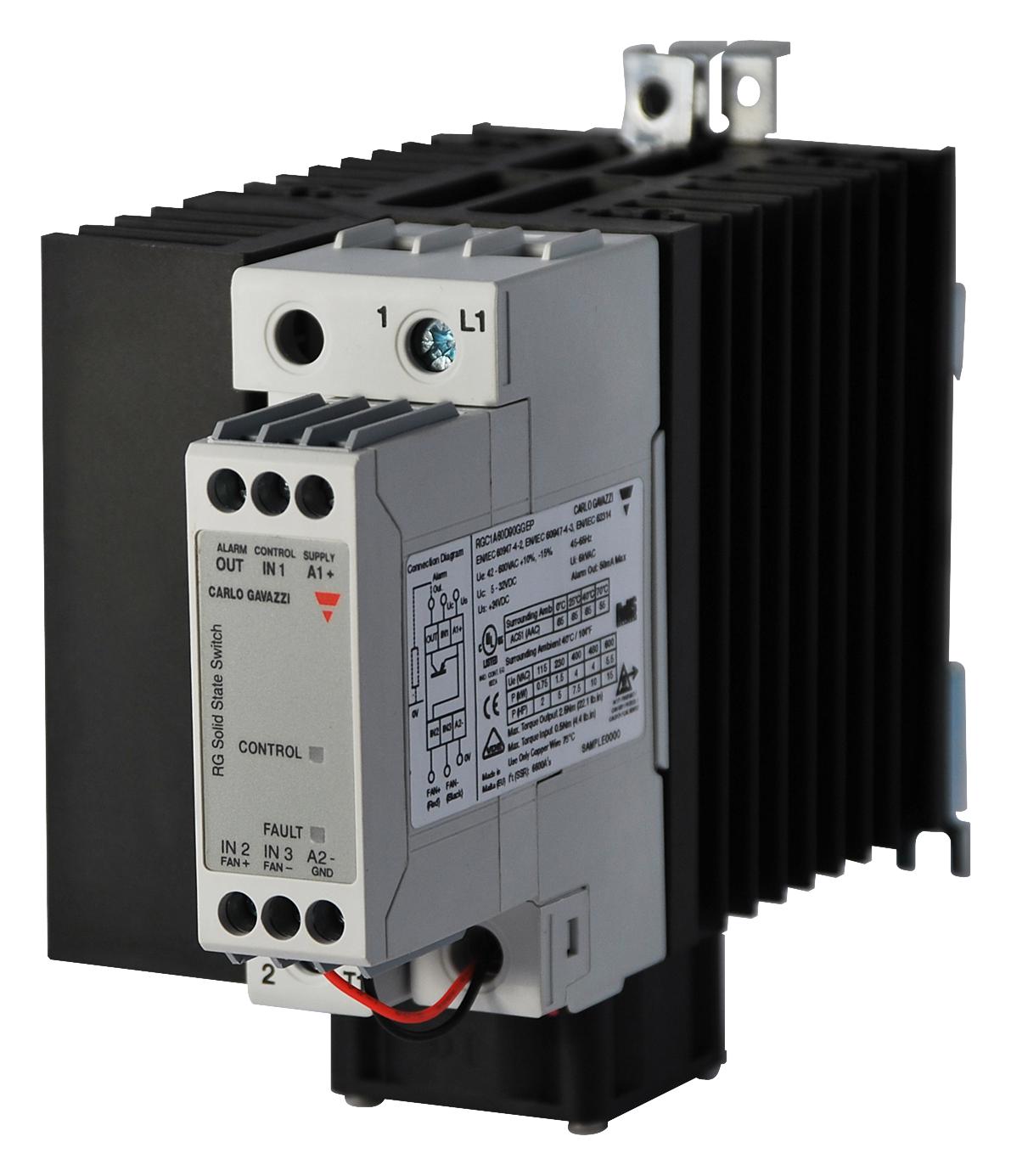

CARLO GAVAZZI RGC1A60A92GGEP Solid State Contactor
The RGC series is a slimline, 1-phase solid state contactor with an integrated heatsink, rated up to 660 VAC and 37 AAC. It offers space-saving design with a width of only 17.5 mm, making it ideal for panel applications and equipment where space is critical. Features include overvoltage protection via an integrated varistor, LED indicators for control status, and optional fan cooling and over-temperature protection. The device is certified for industrial use, with UL508A compliance and high short-circuit current rating of 100 kArms, suitable for controlling motors, heating elements, and thermal loads in automation systems.
CARLO GAVAZZI RGC1A60A92GGEP Solid State Contactor Specifications:
- Rated voltage: 42-660 VAC, 1200 Vp blocking voltage
- Rated current: Up to 37 AAC (18000 A's), rated at 85 A@T, 40°C
- Dimensions: Width of 17.5 mm, height varies with model, heatsink integrated
- Operating temperature: -40°C to +70°C (with overtemperature protection variants up to 70°C)
- Storage temperature: -40°C to +100°C
- Ingress Protection: IP20
- Overvoltage protection: Integrated varistor
- Short circuit current rating: 100 kArms per UL508A
- Control voltage: 3-32 VDC or 20-275 VAC depending on model
- Installation: DIN rail mounting with panel mounting possible
Buy the Buy Carlo Gavazzi Solid State Contactor Part Number RGC1A60A92GGEP Online
Enhance your automation setup with the compact and reliable Carlo Gavazzi solid state contactor. Featuring integrated heatsink, overvoltage protection, and UL certification, this device ensures high performance and safety. It's perfect for controlling motors and heating elements in industrial applications. The slim 17.5 mm design allows for maximum space efficiency, reducing panel size and maintenance costs. Installs easily on DIN rails, with optional fan cooling and over-temperature protection for extended durability. Trust Carlo Gavazzi for quality and peace of mind in your control systems.
Order your Carlo Gavazzi Series RGC1A60A92GGEP space-saving solid state contactor today and give your projects the dependable quality they deserve.
