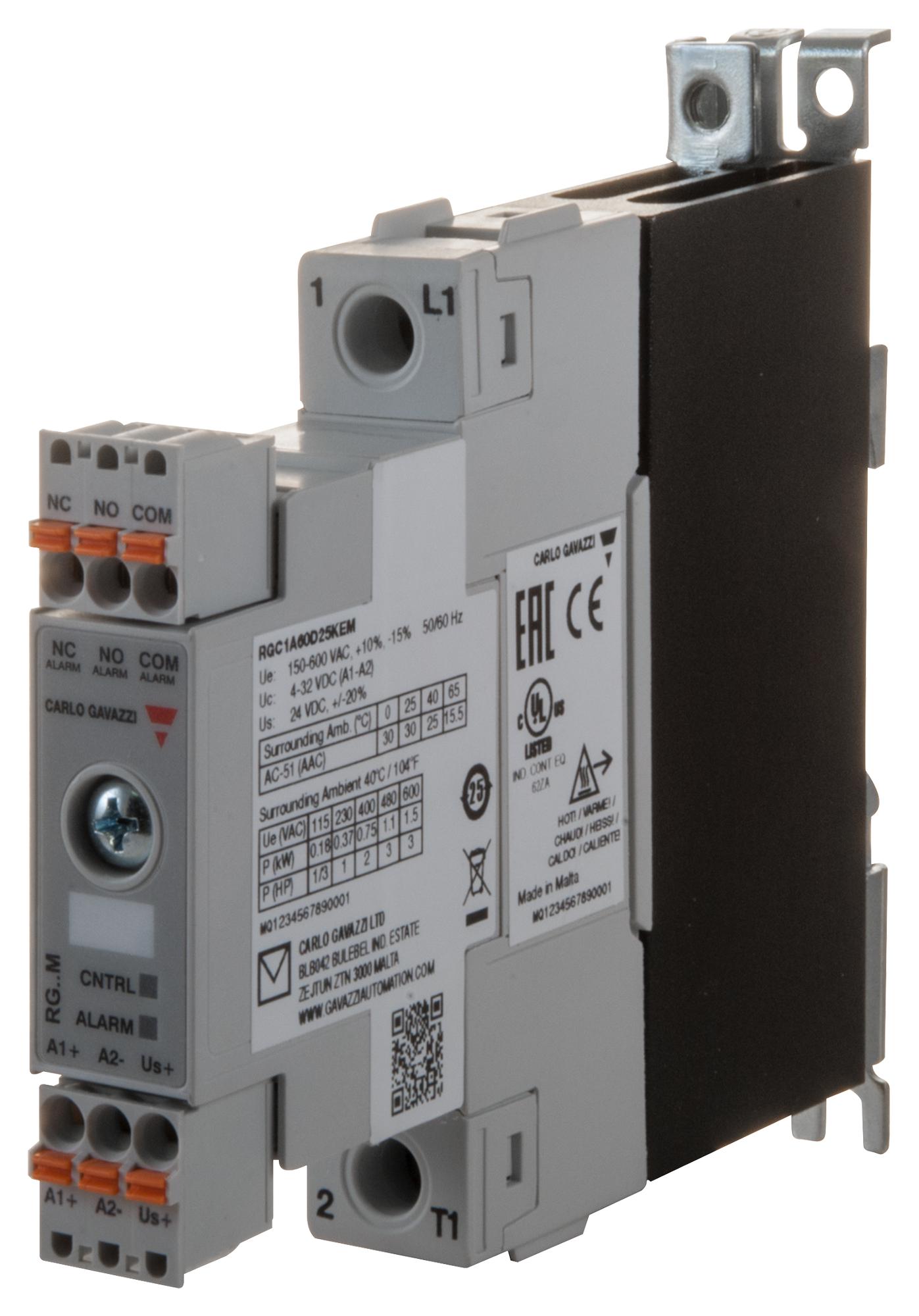

CARLO GAVAZZI RGC1A60D31KEM Solid State Relay
The RGC1A60D31KEM is a 1-phase solid state relay with integrated monitoring, designed for industrial applications. It features zero cross switching, rated for up to 30 AAC, and operates at a control voltage range of 4-32 VDC. Equipped with an alarm transistor output and visual fault indication via a flashing LED, it ensures reliable operation with overvoltage protection and quick installation through pluggable terminals. Suitable for machinery requiring instant fault detection, such as plastic processing, packaging, and temperature control systems, it adheres to UL508A standards for control panels.
CARLO GAVAZZI RGC1A60D31KEM Solid State Relay Specifications:
- Material: PA66 (UL94 V0), RAL7035
- Operating temperature: -20 to +65°C
- Storage temperature: -40 to +100°C
- Relative humidity: 95% non-condensing @ 40°C
- Pollution degree: 2
- Isolation: Input to Output 2500 Vrms, Input/Output to heatsink 4000 Vrms
- Housing weight: approx. 310 g
- Control voltage: 4-32 VDC
- Rated current: up to 30 AAC
- Rated voltage: 660 VAC
- Switching mode: Zero cross
- Power factor: >0.9
- Output protection: Integrated varistor
- Alarm output: Transistor, normally closed (NC) or normally open (NO)
- LED indicators: Green for control, red for alarm
- Approval: UL508, CE
- Mounting: DIN rail or panel
- Dimensions: Width 17.8 mm, length varies with model
- Thermal management: Compatible heatsinks available
Buy the Gavazzi RGC1A60D31KEM – Reliable Temperature Control Relay for Industrial Applications
Enhance your industrial machinery with the Gavazzi RGC1A60D31KEM solid state relay. Offering integrated monitoring, zero cross switching, and alarm outputs, it ensures reliable fault detection for temperature, load, and system faults. Its compact 17.8 mm width allows easy installation in control panels, satisfying UL508A standards. The relay's robust design withstands harsh environments with high humidity and voltage fluctuations, providing long-term operational stability. Quickly order online today to improve your process control and minimize downtime effectively.
Order your Gavazzi RGC1A60D31KEM series relay today and ensure your machinery benefits from dependable fault detection and quick response features.
Frequently Asked Questions
Where can I buy CARLO GAVAZZI RGC1A60D31KEM?
You can click on the BUY or RFQ button to purchase RGC1A60D31KEM from an authorized CARLO GAVAZZI distributor.
How do I troubleshoot issues or seek technical support for part RGC1A60D31KEM?
You can download the RGC1A60D31KEM datasheet or visit the CARLO GAVAZZI website for support.
Who is the manufacturer of RGC1A60D31KEM?
CARLO GAVAZZI
