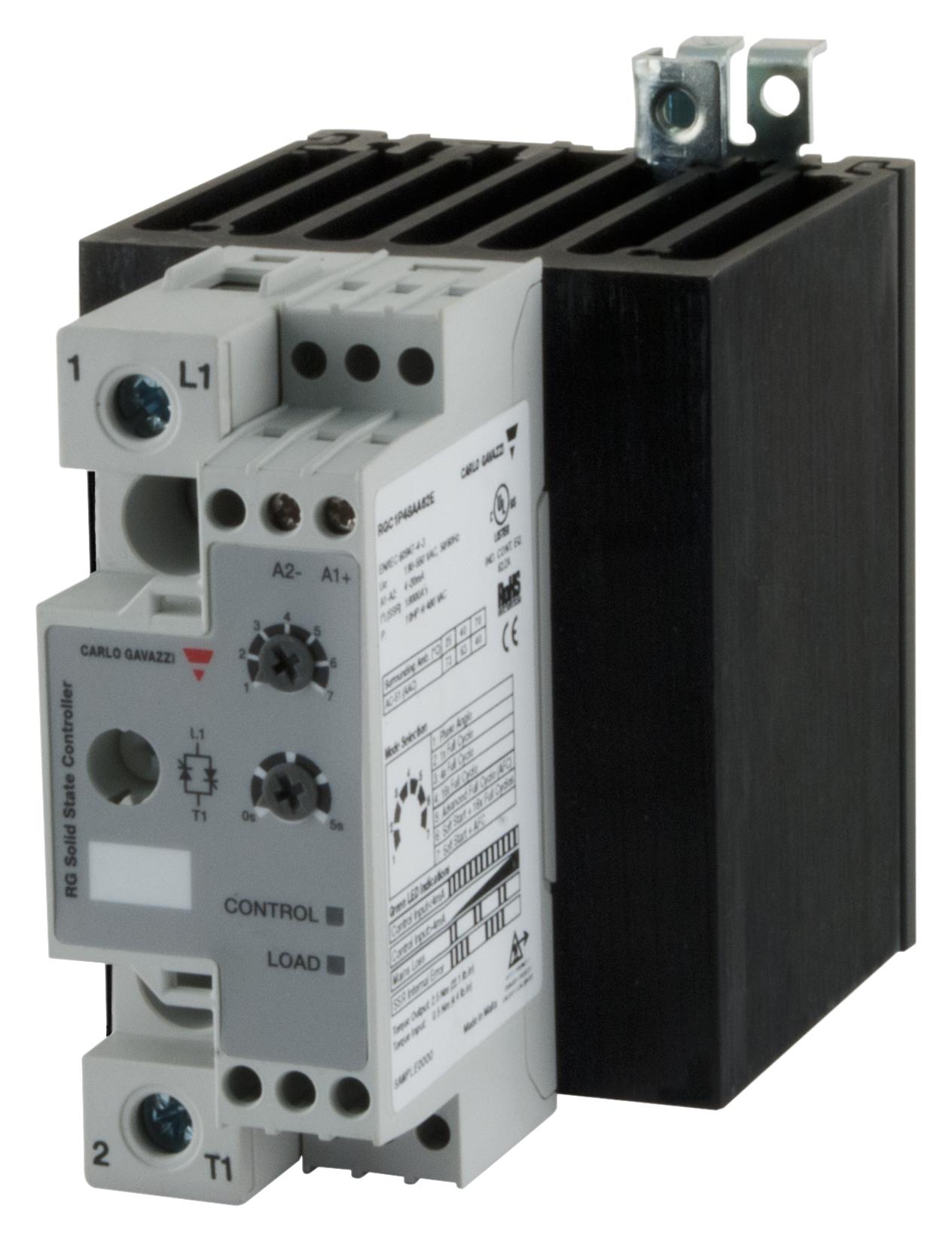

CARLO GAVAZZI RGC1P23AA50E Solid State Contactor
The RGC1P series of solid state contactors features integrated heatsinks and offers precise control over 1-phase loads with an analog input. Capable of phase angle, full cycle, advanced full cycle, and soft starting modes, it provides protection against overvoltages via an integrated varistor and status indicators with front LEDs. Suitable for controlling infrared heaters and soft starting applications, it supports various input types, rated operational voltages up to 660 VAC, and currents up to 63 AAC, making it ideal for industrial automation requiring reliable load switching.
CARLO GAVAZZI RGC1P23AA50E Solid State Contactor Specifications:
- Operational voltage range: 85-265 VAC, 190-550 VAC, 410-660 VAC
- Rated operational current: up to 63 AAC
- Blocking voltage: 800 Vp, 1200 Vp
- Leakage current: <5 mAAC at rated voltage
- Integrated varistor protection across output
- Control input: 4-20 mA, 0-5 V, 1-5 V, 0-10 V, external potentiometer
- Switching modes include phase angle, full cycle x1, x4, x16, advanced full cycle, soft start, soft start + full modes
- Power factor > 0.7 @ rated voltage
- Protection class: IP20
- Environmental temperature: -40°C to +70°C
- Vibration resistance: 2g, Impact resistance: 15/11 g/ms
- Dimensions vary by model, typical height 99mm - 355mm, weight approx. 225g - 815g
- UL and IEC approvals, short circuit current rating: 100kA
Buy the Carlo Gavazzi Series RGC1P Solid State Contactor: RGC1P23AA50E
Purchase the Carlo Gavazzi RGC1P23AA50E online today and unlock superior load switching performance with integrated heatsinks, flexible switching modes, and extensive protection features. Ideal for controlling industrial loads such as infrared heaters, this reliable solid state contactor offers advanced control options including phase angle, full cycle, soft start, and more. Its robust construction ensures durability in harsh environments, supported by UL and IEC approvals. Order now to benefit from quick delivery, proven quality, and unmatched operational efficiency for your automation systems.
Buy Carlo Gavazzi RGC1P23AA50E now and experience unmatched reliability and performance for industrial load control and infrared heater applications.
