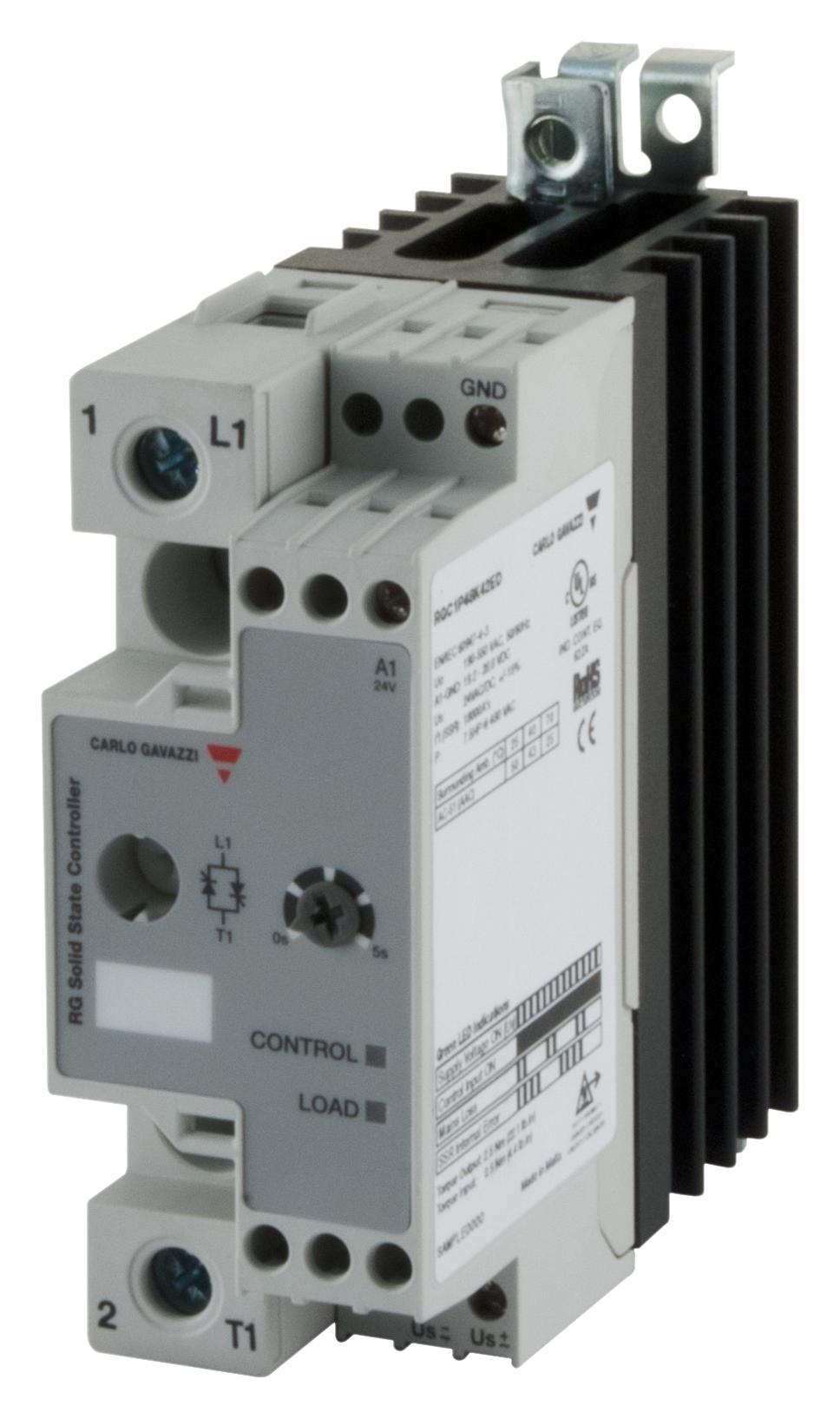

CARLO GAVAZZI RGC1P23K42ED Solid State Relay
The RGC1P23K42ED is a solid state relay designed for industrial applications, providing soft start switching capabilities for high inrush loads such as infrared heaters. It features integrated varistor protection, optional soft start timing, and LED indicators for load and control status. The device handles voltages up to 550 VAC with a rated operational current of 42 AAC, ensuring reliable switching with overvoltage protection and robust construction suitable for electrical automation. Its compact DIN rail mounting facilitates easy installation in control panels, making it ideal for demanding heating and load switching tasks.
CARLO GAVAZZI RGC1P23K42ED Solid State Relay Specifications:
- Rated operational voltage: 85-265 VAC
- Blocking voltage: 800 Vp
- Leakage current: <5 mAAC
- Rated operational current: 42 AAC at 40°C
- Maximum transient surge current: 1900 A (10 ms)
- Internal varistor protection across output
- Control input: 24 VDC
- Input impedance: 100k ohms
- Support for soft start timing, settable via potentiometer
- Temperature range: -40°C to +70°C
- Power factor: > 0.7 @ rated voltage
- Protection: IP20, UL and CSA listed
- Dimensions: approximate width 70mm, depth varies with mounting accessories
- Compliance: IEC/EN 60947-4-3, RoHS
Buy the Carlo Gavazzi RGC1P23K42ED – Reliable Soft Start for Industrial Applications
Enhance your automation setup with the Carlo Gavazzi solid state relay, RGC1P Series. Featuring integrated overvoltage protection, soft start control, and high current capabilities, this relay ensures reliable and smooth switching for demanding industrial loads. With a compact DIN rail mount and LED indicators for status, it provides quick installation and easy monitoring. Ideal for applications like infrared heaters, high inrush loads, and control panels, order online today to upgrade your control system with proven quality and efficiency.
Order your Carlo Gavazzi RGC1P23K42ED series relay today and ensure dependable soft start switching for your infrared heaters and industrial loads.
Frequently Asked Questions
Where can I buy CARLO GAVAZZI RGC1P23K42ED?
You can click on the BUY or RFQ button to purchase RGC1P23K42ED from an authorized CARLO GAVAZZI distributor.
How do I troubleshoot issues or seek technical support for part RGC1P23K42ED?
You can download the RGC1P23K42ED datasheet or visit the CARLO GAVAZZI website for support.
Who is the manufacturer of RGC1P23K42ED?
CARLO GAVAZZI
