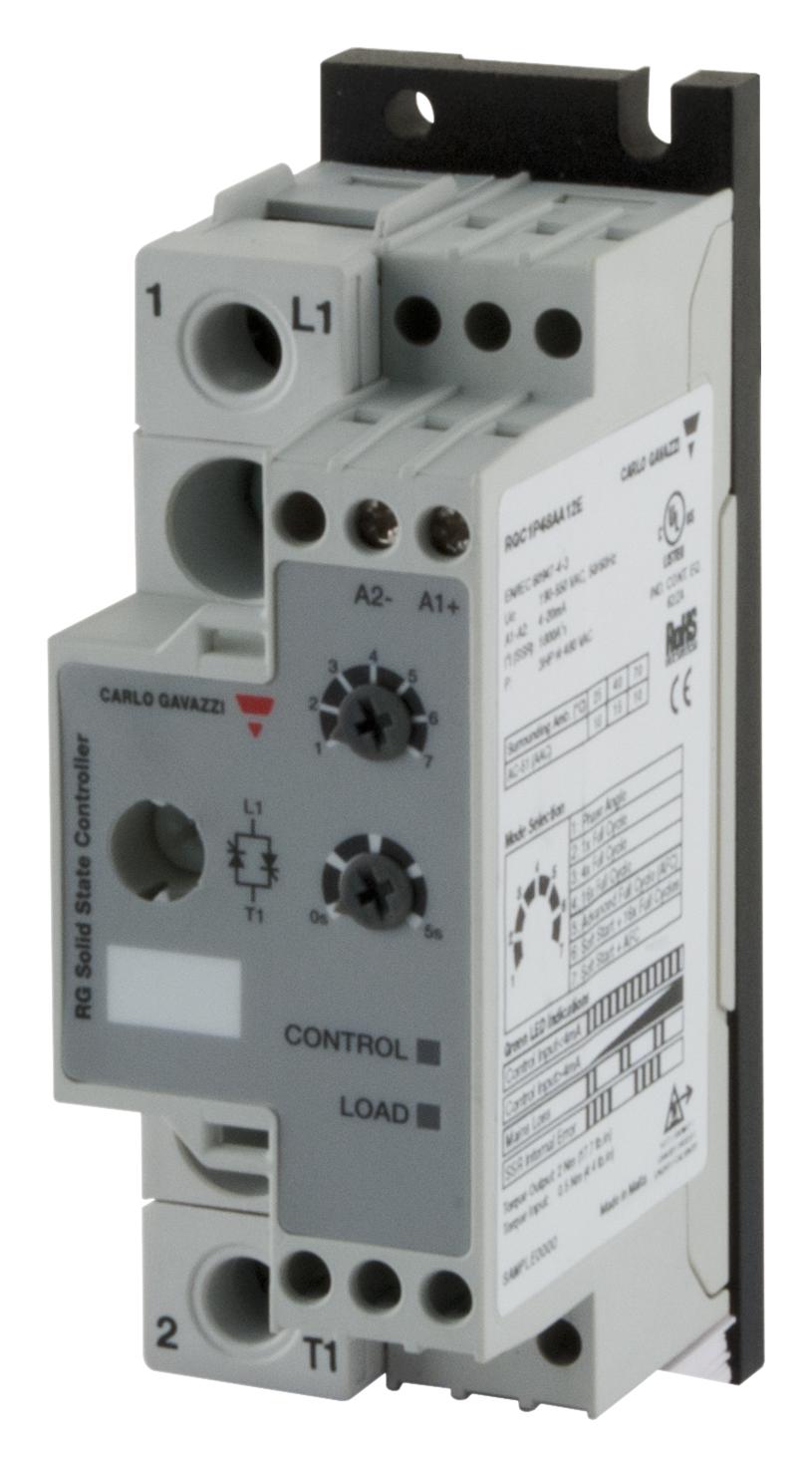

CARLO GAVAZZI RGC1P48AA12E Solid State Relay
The RGC1P48AA12E series is a 1-phase solid state relay with integrated heatsink designed for proportional switching control of resistive loads such as infrared heaters. It offers multiple switching modes including phase angle, full cycle, advanced full cycle, soft starting, and combinations thereof, supporting operational voltages from 85-265 VAC with rated currents up to 50 AAC. Features include integrated varistor protection, LED status indicators, diverse control inputs (4-20mA, 0-10V, 0-5V, 1-5V), selectable firing modes, soft start capability, and robust isolation, all compliant with industrial safety and EMC standards, and suitable for DIN or panel mount installations.
CARLO GAVAZZI RGC1P48AA12E Solid State Relay Specifications:
- Operational Voltage Range: 85-265 VAC
- Blocking Voltage: 800 Vp
- Leakage Current: <5 mAAC at rated voltage
- Rated Operational Current: up to 50 AAC
- Minimum Operational Current: 500 mAAC
- Overvoltage Protection: Yes, integrated varistor
- Switching Modes: Phase angle, full cycle, advanced full cycle, soft start, and combinations
- Control Inputs: 4-20 mA, 0-10 V, 0-5 V, 1-5 V, external potentiometer
- Input Protection: Yes
- Electromagnetic Compatibility: EN 61000-4 series, Class A emission, immunity standards compliant
- Mounting: DIN rail or panel mount
- Dimensions: Approximate width 35mm, height varies from 42mm to 62mm
- Ingress Protection: IP20
- Ambient Operating Temp: -40°C to +70°C
- Material: PA66, RAL7035
- Vibration Resistance: 2g, 10–100Hz
- Impact Resistance: 15/11 g/ms
- Relative Humidity: 95% non-condensing
- Compliance: UL, cUL, IEC/EN 60947-4-3, RoHS, China RoHS
- Weight: 460g
Buy the Carlo Gavazzi Series RGC1P 48V: 85-265VAC Solid State Relay with Heatsink
Enhance your control system with the Carlo Gavazzi RGC1P48AA12E, a high-performance, 1-phase solid state relay featuring integrated heatsink, enhanced protection, and multiple switching modes. Designed for resistive loads like infrared heaters, it supports voltages up to 265VAC and currents up to 50A. Its robust construction includes integrated varistor protection, versatile control input options such as current, voltage, and potentiometer, along with soft starting capability and IEC safety standards compliance. Perfect for DIN rail and panel mounting, this relay offers reliable operation in demanding industrial environments. Get yours online today to ensure seamless automation and load management with superior durability and efficiency.
Buy Carlo Gavazzi RGC1P48AA12E now and experience unmatched reliability and performance for resistive load control in industrial applications.
