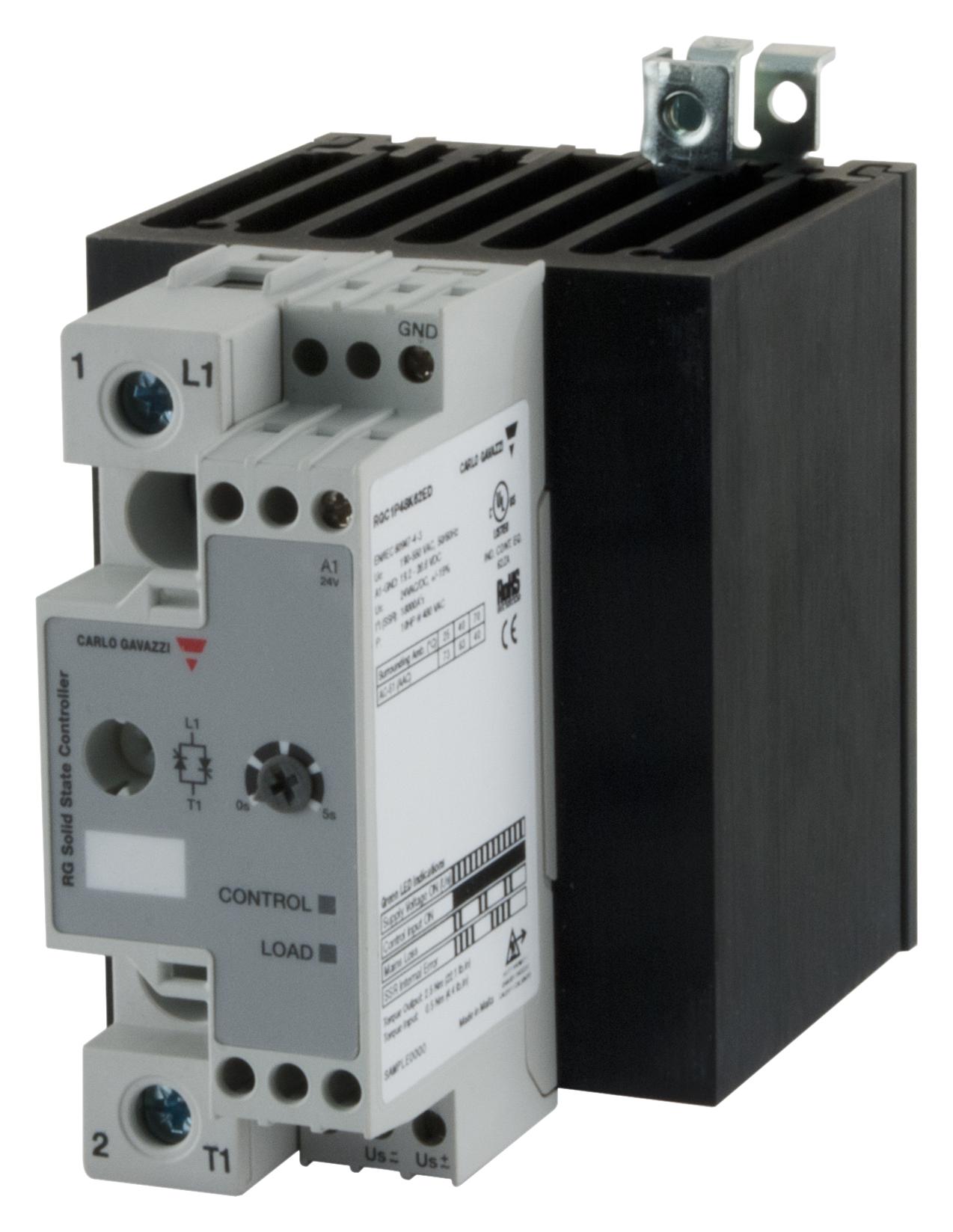

CARLO GAVAZZI RGC1P60K62ED Solid State Relay
The RGC1P60K62ED is a high-performance solid state relay with integrated heatsink, designed for soft start switching of high-resistance loads such as infrared heaters. It offers adjustable soft start timing, overvoltage protection via integrated varistor, and efficient control and load LEDs. Suitable for applications up to 660 VAC, it provides reliable switching, short circuit protection, and compliance with safety standards, making it ideal for industrial heating and load switching requiring precise control and enhanced protection.
CARLO GAVAZZI RGC1P60K62ED Solid State Relay Specifications:
- Operational voltage range: 410 - 660 VAC
- Blocking voltage: 1200 Vp
- Rated operational current: 73 AAC
- Leakage current: <5 mAAC
- Internal varistor protection: Yes
- Control input: 24 VDC/AC, 19.2 - 28.8 VDC
- Switching frequency: 45 to 65 Hz
- Power factor: > 0.7 @ rated voltage
- Touch protection: IP20
- Surge withstand voltage: 6 kV
- Operating temperature: -40°C to +70°C
- Storage temperature: -40°C to +100°C
- Impact resistance: 15/11 g/ms
- Vibration resistance: 2g per axis
- Relative humidity: 95% non-condensing @ 40°C
- Weight: approx. 805g
- Flammability rating: UL 94 VO
- Material: PA66, RAL7035
- Conformance: IEC/EN 60947-4-3, UL Listed, CSA
Buy the Carlo Gavazzi Series industrial switch: RGC1P60K62ED
Enhance your industrial automation with the Carlo Gavazzi Series RGC1P60K62ED solid state relay. Featuring integrated heatsink, adjustable soft start, and overvoltage protection, this relay ensures smooth startup of high-resistance loads like infrared heaters. Designed for voltages up to 660 VAC and currents up to 73 AAC, it provides reliable switching, compact DIN rail mounting, and compliance with safety standards. Purchase online today for dependable control and protection in demanding industrial environments.
Order your Carlo Gavazzi Series RGC1P60K62ED today and experience reliable soft start switching for high-resistance loads with integrated protection.
