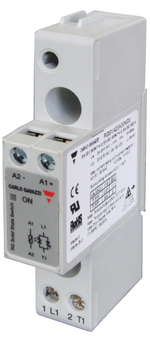

CARLO GAVAZZI RGS1A60D30KGU Solid State Relay
The CARLO GAVAZZI RGS1A60D30KGU is a robust, 1-phase solid-state relay engineered for demanding industrial environments. This relay, with its compact 17.5mm design, offers solutions up to 30AAC and incorporates a built-in varistor for enhanced voltage transient protection. Designed according to IEC/EN60947-4-2, IEC/EN60947-4-3, IEC/EN62314, UL508, and CSA22.2 No. 14-13, it ensures reliable performance and safety. The RGS...DIN variant provides DIN rail mounting capability, making it suitable for various panel configurations. Its ability to handle short-circuit currents up to 100kA according to UL508 makes it a dependable choice for critical applications.
CARLO GAVAZZI RGS1A60D30KGU Solid State Relay Specifications:
- rated_operational_voltage: Up to 660VAC
- rated_operational_current: Up to 30AAC
- i2t_value: Up to 1800A²s
- control_voltages: 4-32 VDC, 20-275 VAC (24-190VDC)
- design_standard: IEC/EN60947-4-2, IEC/EN60947-4-3, IEC/EN62314, UL508, CSA22.2 No. 14-13
- varistor_protection: Integrated voltage transient protection with varistor
- short_circuit_current_rating: 100 kA according to UL508
- din_mounting_option: Available (RGS...DIN)
- switching_mode: Zero cross or Instant on
- operating_temperature: 25°C (unless otherwise specified)
- ac51_rating_40c: 10AAC
- control_connection: Screw connection with captivated washer
- power_connection: Box clamps
- number_of_poles: 1
- latching_voltage: 20V (across L1-T1)
- operational_frequency_range: 45 to 65Hz
- power_factor: > 0.5 @ Vrated
- touch_protection: IP20
- control_input_status: Green LED (when control input is applied)
- pollution_degree: 2
- rated_impulse_withstand_voltage: 6 kV (1.2/50μs)
- over_voltage_category: III
- isolation_input_to_output: 4000Vrms
- isolation_input_output_to_case: 4000Vrms
- control_voltage_range: 20 - 275 VAC, 24 - 190 VDC
- pick_up_voltage: 4 - 32 VDC, .8 VDC (20 VAC/DC)
- drop_out_voltage: 5 VAC/DC
- maximum_reverse_voltage: 2 VDC
- response_time_pickup_rgs1a: 0.5 cycle + 500µs @ 24VD
- response_time_pickup_rgs1b: 2 cycles @ 230VAC/110VDC
- response_time_drop_out: 0.5 cycle+ 500µs @ 24VD
- input_current_40c: See diagrams below
- maximum_transient_surge_current: 600Ap
- maximum_off_state_leakage_current: 3 mAAC
- i2t_for_fusing: Minimum 1800A²s
- critical_dvdt: 1000V/μs
- motor_ratings_hp_115vac: ¾HP/0.37kW
- motor_ratings_hp_230vac: 2HP/ 1.1kW
- motor_ratings_hp_400vac: 3HP / 1.5kW
- motor_ratings_hp_480vac: 5HP / 2.2kW
- motor_ratings_hp_600vac: 5HP / 3.7kW
