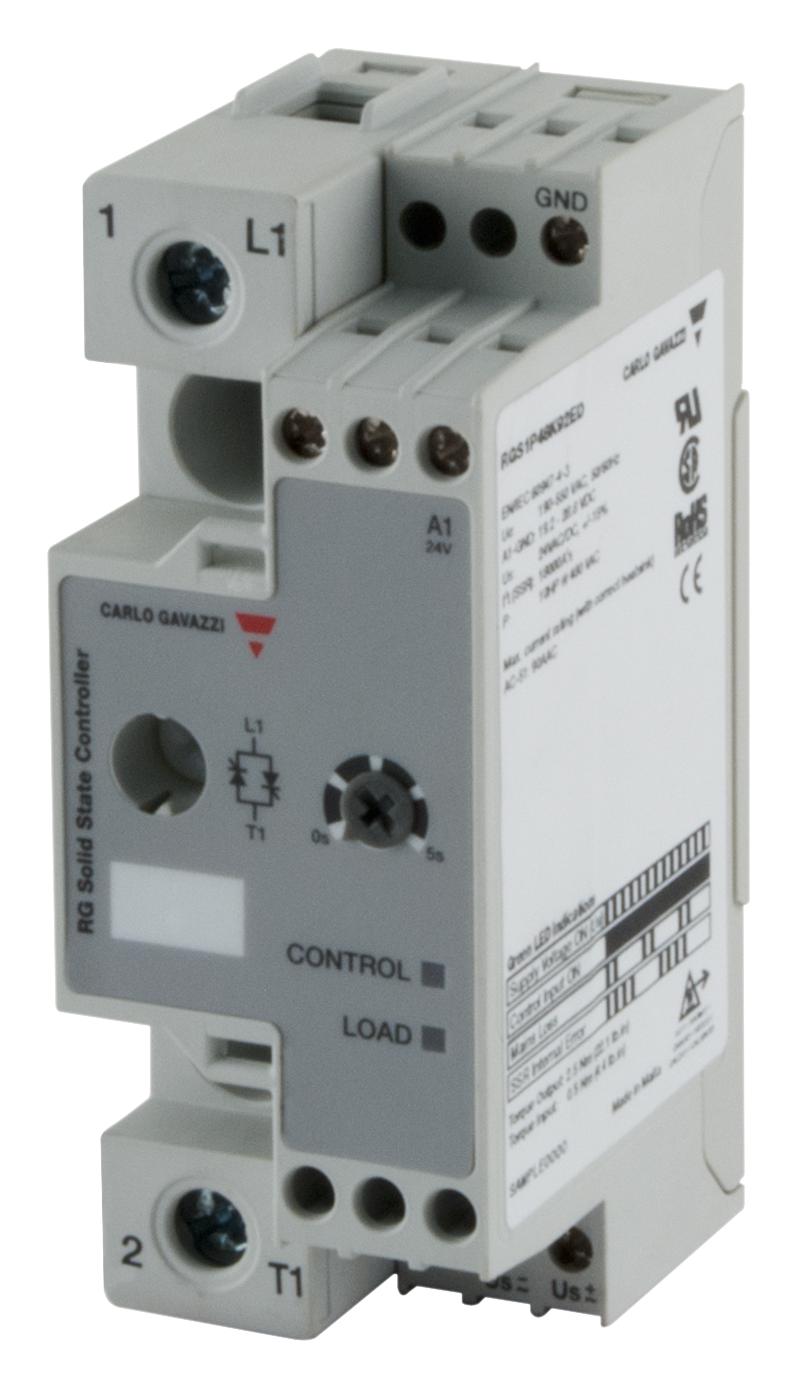

CARLO GAVAZZI RGS1P48K92ED Solid State Relay
The RGS1P48K92ED is a 1-pole solid state relay designed for soft start switching applications, especially suitable for loads with high inrush currents like infrared heaters. It offers adjustable soft start time, protecting against overvoltage via integrated varistor, and features LED indicators for load and control status. Rated for up to 550 VAC and 90 AAC, it supports high current loads with built-in protection, making it ideal for industrial and commercial electrical systems requiring reliable and smooth load startup.
CARLO GAVAZZI RGS1P48K92ED Solid State Relay Specifications:
- Operational voltage range: 410-660 VAC
- Blocking voltage: 1200 Vp
- Rated operational current: 90 AAC
- Control input: 24 VDC
- Integrated varistor protection
- Load ON LED indicator
- Short circuit current rating: 100KA according to UL508
- Power factor: > 0.7 @ rated voltage
- Touch Protection: IP20
- Maximum junction temperature: 125°C
- Operating temperature: -40°C to +70°C
- Vibration resistance: 2g per axis
- Weight: approx. 180g
- Certifications: UL508, CSA, IEC/EN 60947-4-3
- Electromagnetic Compatibility: Meets EN 60947-4-3, EN 61000-4 series standards
- Connection: M4 screw with captivated washer, stripping length 12mm
- Housing: PA66, RAL7035
- Dimensions: Width 35mm, depth increased by 3mm when tamper cover mounted
Buy the Carlo Gavazzi Series 1-Pole Soft Start Switching Load Relay: RGS1P48K92ED
Purchase the Carlo Gavazzi RGS1P48K92ED online today for a high-performance, reliable load switching solution. Designed for demanding industrial applications, this relay offers precise soft start functionality, integrated overvoltage protection, and LED status indicators. With a rated voltage of 410-660VAC and a 90A operational current, it ensures smooth startup for high inrush loads like infrared heaters. Its compact design, combination of safety features, and UL/CSA approvals make it an excellent choice for professionals seeking durable, easy-to-install switching devices for critical systems.
Buy Carlo Gavazzi RGS1P48K92ED now and experience unmatched reliability and performance in load switching with smooth start capabilities.
Frequently Asked Questions
Where can I buy CARLO GAVAZZI RGS1P48K92ED?
You can click on the BUY or RFQ button to purchase RGS1P48K92ED from an authorized CARLO GAVAZZI distributor.
How do I troubleshoot issues or seek technical support for part RGS1P48K92ED?
You can download the RGS1P48K92ED datasheet or visit the CARLO GAVAZZI website for support.
Who is the manufacturer of RGS1P48K92ED?
CARLO GAVAZZI
