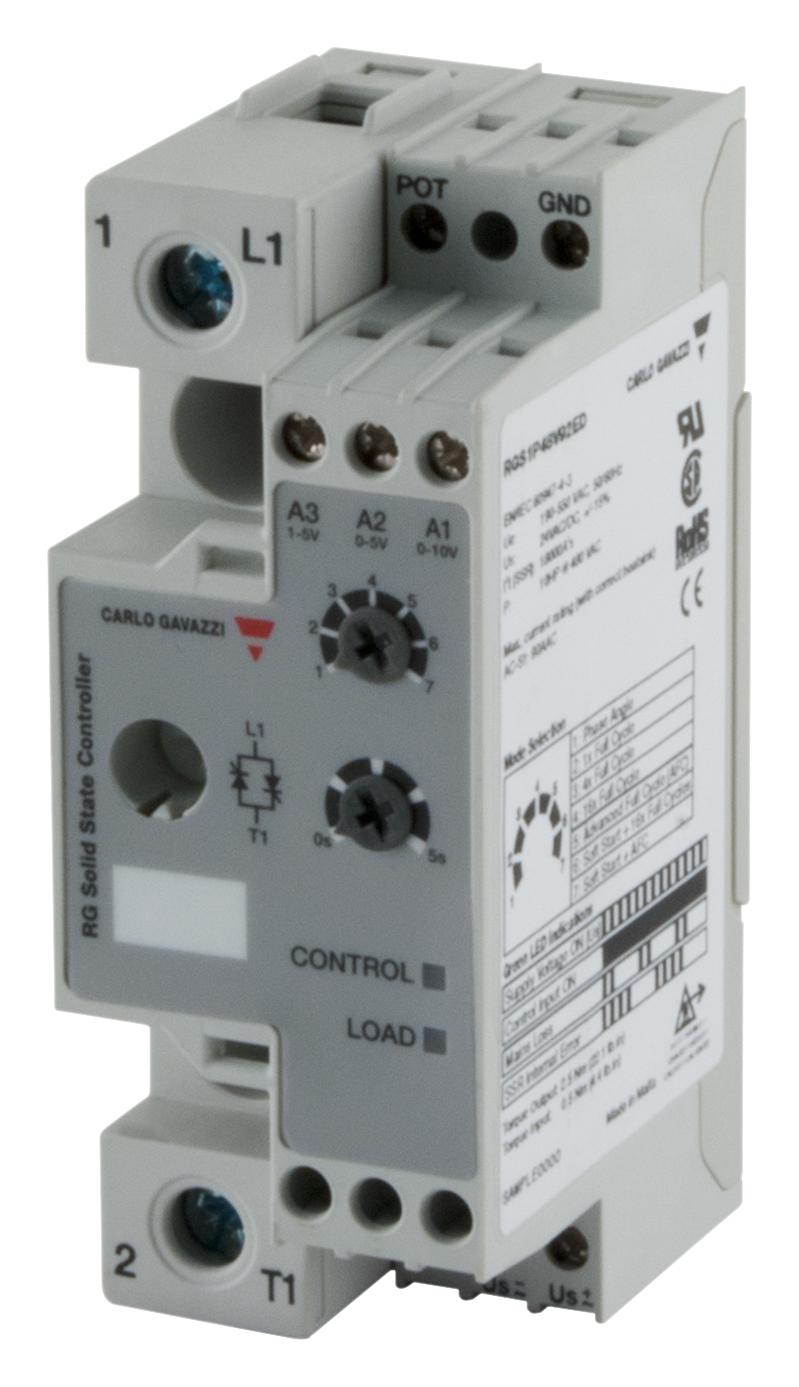

CARLO GAVAZZI RGS1P60V92EA Solid State Relay
The RGS1P60V92EA is a 1-phase solid state relay designed for proportional switching control of loads up to 90 AAC. It offers multiple switching modes including phase angle, full cycle, advanced full cycle, soft start, and combinations thereof, suitable for resistive and infrared heater loads. The relay features integrated varistor protection, adjustable soft starting over 5 seconds, and control inputs such as 4-20 mA, 0-5/10 V, and external potentiometers. It is mounted on chassis or heatsinks, with robust protection and LEDs indicating load and control status, compliant with industry standards for safety and EMC immunity.
CARLO GAVAZZI RGS1P60V92EA Solid State Relay Specifications:
- Operational voltage range: 410-660 VAC
- Blocking voltage: 1200 Vp
- Rated operational current: up to 90 AAC
- Control inputs: 4-20 mA, 0-5V, 1-5V, 0-10V, external potentiometer
- Input impedance: 100k ohms (for some inputs)
- Power factor > 0.7 @ rated voltage
- Switching modes: Phase angle, full cycle x1, x4, x16, advanced full cycle, soft start, and combined modes
- Integrated varistor protection across output
- Leakage current: <5 mAAC at rated voltage
- Thermal resistance Rthic: <0.3°C/W, Rthcs: <0.25°C/W
- Protection class: IP20, pollution degree: 2
- Maximum junction temperature: 125°C
- Standards: UL508, CSA, IEC/EN 60947-4-3
- Vibration resistance: 2g, operating temp: -40°C to +70°C
- Relative humidity: 95% non-condensing
Buy the Carlo Gavazzi Series RGS1P Proportional Switching Load Controller: RGS1P60V92EA
Order the Carlo Gavazzi RGS1P60V92EA online today to ensure reliable, efficient control of your 1-phase loads with multiple switching modes, soft start features, and built-in safety protections. Designed for industrial applications requiring precise proportional switching, this relay offers advanced functionality such as phase angle, full cycle, and soft start modes, with robust overload and overvoltage protection. Easy to integrate into existing systems, it guarantees long-lasting performance, safety compliance, and operational efficiency—making it the ideal choice for automation, heating control, and power management.
Get Carlo Gavazzi RGS1P60V92EA today—built for precision control of 1-phase loads with soft start and integrated protections.
