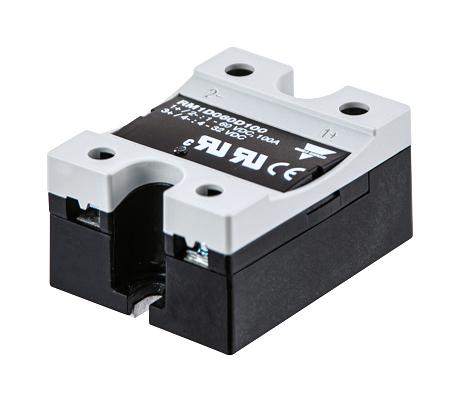

CARLO GAVAZZI RM1D060D10 DC Solid State Relay
The RM1D series by Carlo Gavazzi offers DC solid state relays capable of handling high switching currents up to 100A for 60 VDC, 50A for 200 VDC, and 10A for 500 VDC. Constructed with a low power dissipation MOSFET output, these relays feature rapid switching times up to 1000 Hz, ensuring reliable and fast operation for controlling heaters, solenoid valves, and test equipment. They include control voltage ranges from 4 to 32 VDC, LED indicators for signal presence, and robust IP20 housing suitable for panel or heatsink mounting, with high electrical isolation between control and load.
CARLO GAVAZZI RM1D060D10 DC Solid State Relay Specifications:
- Housing material: Noryl, black
- Mounting: Panel mount
- Touch Protection: IP20
- Input Control Voltage Range: 4-32 VDC
- Output Max Current: 10 ADC up to 60 VDC, 20 ADC up to 120 VDC, 50 ADC up to 200 VDC, 100 ADC up to 60 VDC
- Output Max Voltage: 60 VDC, 200 VDC, 500 VDC (depending on model)
- Output Protection: Integrated transil
- Isolation Voltage: 3750 Vrms between input and output
- Relay Response Time: ON/OFF < 100 microseconds
- Switching Frequency: Up to 1000 Hz
- Control LED indicator: Yes
- Operating Temperature: -20°C to 80°C
- Storage Temperature: -40°C to +100°C
- Vibration Resistance: 2g/axis
- Dimensions: Approximately 44.8 mm x 29.5 mm
- Weight: Approx. 83 grams
- Certifications: UL, CSA, EN/IEC standards
- Environmental Resistance: Humidity up to 95% non-condensing at 40°C
- Thermal Management: Compatible with heatsinks or mounting surfaces for optimal thermal dissipation
Buy the Buy Carlo Gavazzi RM1D Series DC Solid State Relay Part Number RM1D060D10 Online
Enhance your automation system with the Carlo Gavazzi RM1D series DC solid state relay. Designed for high switching currents up to 100A, it guarantees rapid response times up to 1000 Hz, ensuring efficient control of industrial equipment. With control voltage options from 4 to 32 VDC, LED indicators for monitoring, and robust housing, this relay is ideal for panel mounting and heatsink applications. Purchase online now to ensure the highest reliability and performance in your automation projects.
Buy Carlo Gavazzi RM1D060D10 now and experience unmatched reliability and fast switching performance for your industrial control needs.
