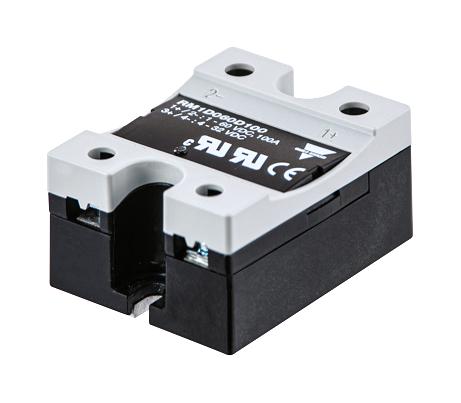

CARLO GAVAZZI RM1D060D20 DC Solid State Relay
The RM1D series by Carlo Gavazzi offers reliable DC solid state relays suitable for industrial applications. These relays feature high current capacities up to 100A for 60VDC, 50A for 200VDC, and 10A for 500VDC, controlled by a 4 to 32 VDC input voltage. The units are designed for panel or heatsink mounting, providing fast switching times and high cycle life. They include LED indicators for control status, integrated transil protection, and optional heatsinks for thermal management. Ideal for switching DC loads such as heaters, solenoid valves, and batteries, ensuring durability and efficiency.
CARLO GAVAZZI RM1D060D20 DC Solid State Relay Specifications:
- Housing material: Noryl, black
- Mounting: Panel mount
- Touch protection: IP20
- Input to case voltage: 3750 Vrms
- Rated output current: 10 ADC at 60 VDC, 20 ADC at 120 VDC, 50 ADC at 500 VDC
- Maximum output voltage: 60 VDC, 200 VDC, 500 VDC depending on model
- Control voltage range: 4-32 VDC
- Output leakage current: 0.1 mADC
- Response time: 100 ps pickup, 100 us drop-out
- Maximum switching frequency: 1000 Hz
- Thermal management: Optional heatsinks with thermal resistance up to 0.55°C/W
- Isolation between input and output: 3750 Vrms
- Operating temperature: -20°C to 80°C
- Certification: UL, CSA, EN/IEC standards
- Dimensions: 44.8 mm x 29.5 mm
- Weight: approximately 83 g
Buy the Carlo Gavazzi Series RM1D DC Solid State Relay Part Number RM1D060D20
Purchase the Carlo Gavazzi RM1D series relays online now to ensure reliable and efficient DC switching for your industrial automation projects. These highly durable relays support up to 100A at 60VDC, providing fast switching response times and excellent cycle life for demanding applications. Easy to mount on panels or heatsinks and equipped with LED indicators for status monitoring, they offer optimal thermal management with optional heatsinks. Secure your supply chain by ordering directly from authorized distributors and enjoy prompt delivery and technical support.
Get Carlo Gavazzi RM1D today—built for precision and long-lasting durability with high current switching capacity.
Frequently Asked Questions
Where can I buy CARLO GAVAZZI RM1D060D20?
You can click on the BUY or RFQ button to purchase RM1D060D20 from an authorized CARLO GAVAZZI distributor.
How do I troubleshoot issues or seek technical support for part RM1D060D20?
You can download the RM1D060D20 datasheet or visit the CARLO GAVAZZI website for support.
Who is the manufacturer of RM1D060D20?
CARLO GAVAZZI
