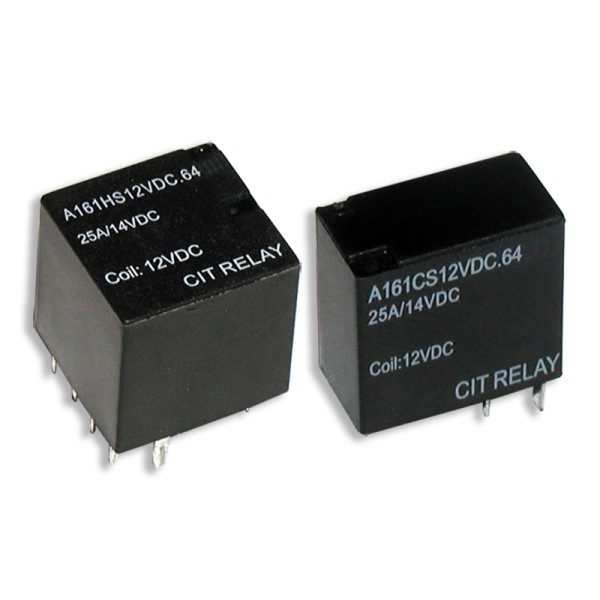

CIT Relay and Switch A161CS12VDC64 industrial relay
This 12 V DC relay offers reliable switching for industrial applications with a compact design. Featuring a SPDT contact arrangement, it supports up to 30A current and includes a sealed enclosure for durability. The relay operates with a coil power of 0.64 W, ensuring efficient performance. Designed for PCB mounting, it withstands harsh environments with an insulation resistance of 100MΩ and dielectric strength of 1500V rms. Its robust construction and high switching power of 480W make it ideal for automation, control systems, and industrial automation projects, ensuring dependable operation in demanding settings.
CIT Relay and Switch A161CS12VDC64 industrial relay Specifications:
- Contact Arrangement: 1C = SPDT
- Contact Rating: 25A @ 14VDC
- Maximum Switching Voltage: 20VDC
- Contact Resistance: < 50 milliohms
- Maximum Switching Power: 480W
- Coil Voltage: 12VDC
- Coil Resistance: Not specified
- Pick Up Voltage: Not specified
- Release Voltage: Not specified
- Coil Power: 0.64W
- Electrical Life: 100K cycles
- Mechanical Life: 10M cycles
- Insulation Resistance: 100MΩ @ 500VDC
- Dielectric Strength: 1500V rms coil to contact, 1000V rms contact to contact
- Shock Resistance: 100m/s² for 11 ms
- Storage Temperature: -40°C to +155°C
- Weight: 4.1g
- Solderability: 260°C for 5s
Buy the Cit Relay A16 – Reliable Industrial SPDT Relay for Control Systems
Purchase the Cit Relay Series A16 12V DC relay online today and experience reliable operation in industrial automation, control systems, and switching applications. With a sealed design, 30A contact capacity, and a compact PCB-mount form factor, this relay ensures durable and efficient performance under demanding conditions. Its high insulation resistance, dielectric strength, and long cycle life make it ideal for automation, manufacturing, and control projects. Get your reliable relay now for seamless performance and uninterrupted operation in critical environments.
Order your Cit Relay Series A16 12VDC relay today and ensure dependable switching for your industrial automation projects.
Frequently Asked Questions
Where can I buy CIT Relay and Switch A161CS12VDC64?
You can click on the BUY or RFQ button to purchase A161CS12VDC64 from an authorized CIT Relay and Switch distributor.
How do I troubleshoot issues or seek technical support for part A161CS12VDC64?
You can download the A161CS12VDC64 datasheet or visit the CIT Relay and Switch website for support.
Who is the manufacturer of A161CS12VDC64?
CIT Relay and Switch
