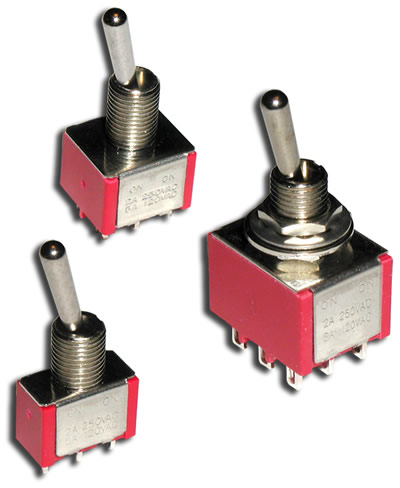

CIT Relay and Switch ANT11SECQE Miniature Toggle Switch
The CIT Relay and Switch ANT11SECQE is a miniature toggle switch suitable for diverse applications, from consumer electronics to commercial equipment. Constructed with brass, diallyl phthalate (DAP), stainless steel, and copper alloy, it provides reliable performance. Key features include standard epoxy sealed terminations, available gold contacts for low-power applications, support brackets for stability, and an anti-rotation feature on flat toggles. It offers a wide variety of terminal options and is RoHS compliant.
CIT Relay and Switch ANT11SECQE Miniature Toggle Switch Specifications:
- Electrical Ratings: 5A @ 120VAC, 28VDC; 2A @ 250VAC
- Electrical Life: 50,000 cycles typical
- Contact Resistance: <20mΩ initial @ 2-4VDC, 100mA
- Dielectric Strength: 1500Vrms min
- Insulation Resistance: >1000MΩ min
- Operating Temperature: -40ºC to 85ºC
- Storage Temperature: -40ºC to 85ºC
- Actuator: Brass, Chrome Plated
- Housing: Diallyl Phthalate(DAP)
- Cover: Stainless Steel
- Bushing: Brass, Nickel Plated
- Bracket: Brass, Tin Plated
- Contacts: Copper Alloy, Silver or Gold Plated
- Terminals: Copper Alloy, Silver Plated
