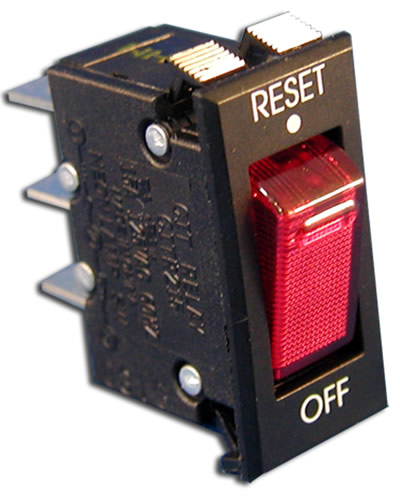

CIT Relay and Switch CITR215Q2LS Circuit Breaker with On/Off
The CIT Relay and Switch CITR215Q2LS is a versatile circuit breaker designed with a thermal circuit breaker and a rocker switch style housing. When an overload condition occurs, the contacts break apart, providing essential protection. The breaker resets by returning the actuator to the OFF position and then back to the ON position. It's suitable for various industrial applications requiring reliable circuit protection and on/off functionality, such as power distribution panels, control circuits, and equipment protection. The CITR215Q2LS offers a robust solution for maintaining circuit integrity and preventing damage due to overloads.
CIT Relay and Switch CITR215Q2LS Circuit Breaker with On/Off Specifications:
- Electrical Ratings: 3A~20A @ 125/250VAC
- Electrical Life: 10,000 cycles typical
- Contact Resistance: <30mΩ initial@2-4VDC, 100mA
- Dielectric Strength: 3000Vrms min (terminal - terminal)
- Insulation Resistance: >1000MΩ min
- Interrupt Capacity: 2000A @ 125VAC; 1000A@250VAC
- Operating Temperature: -40ºC to 85ºC
- Storage Temperature: -40ºC to 85ºC
- Actuator: PolyCarbonate
- Housing: Nylon
- Rivits: Aluminum
- Contacts: AgSnO2
- Terminals: Brass
