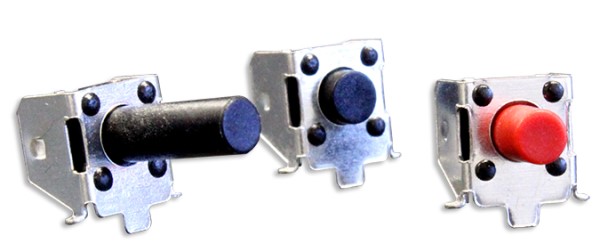

CIT Relay and Switch CS1102V385F260 Surface Mount Tactile Switch
The CIT Relay and Switch CS1102V3.85F260 is a surface mount tactile switch engineered for demanding industrial environments. Constructed with Nylon 6T for the actuator and housing, and stainless steel with tin plating for the cover, this switch provides durability and reliable performance. The copper alloy contacts, silver-plated, ensure low contact resistance and excellent electrical conductivity. It is commonly used in applications requiring momentary push-button functionality, such as control panels, instrumentation, and consumer electronics. The switch's compact size and surface mount design simplify integration into printed circuit boards, reducing assembly time and cost.
CIT Relay and Switch CS1102V385F260 Surface Mount Tactile Switch Specifications:
- Electrical Ratings: 50mA@50VDC
- Electrical Life: 100,000 cycles typical
- Contact Resistance: <50mΩ initial
- Actuation Force: 100 ± 50gF
- Actuation Force_2: 160 ± 50gF
- Actuation Force_3: 260 ± 50gF
- Dielectric Strength: 250Vrms min
- Insulation Resistance: >100MΩ min@500VDC
- Operating Temperature: -40ºC to 85ºC
- Storage Temperature: -40ºC to 85ºC
- Actuator Material: Nylon 6T
- Housing Material: Nylon 6T
- Cover Material: Stainless Steel, Tin Plated
- Contact Material: Copper Alloy, Silver Plated
- Terminal Material: Copper Alloy, Silver Plated
- Actuator Length: 3.85mm
- Packaging: 600 pieces per reel
Buy the CS1102V3.85F260 CIT Relay and Switch Surface Mount Tactile Switch | myMectronic
Purchase the CIT Relay and Switch CS1102V3.85F260 tactile switch securely and conveniently online.
Buy Now
Frequently Asked Questions
Where can I buy CIT Relay and Switch CS1102V385F260?
You can click on the BUY or RFQ button to purchase CS1102V385F260 from an authorized CIT Relay and Switch distributor.
How do I troubleshoot issues or seek technical support for part CS1102V385F260?
You can download the CS1102V385F260 datasheet or visit the CIT Relay and Switch website for support.
Who is the manufacturer of CS1102V385F260?
CIT Relay and Switch
