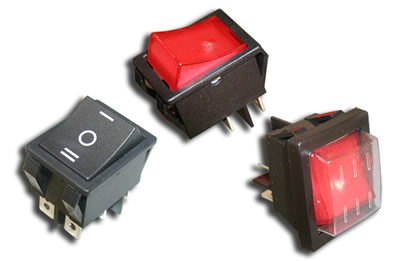

CIT Relay and Switch RW2722AAC Illuminated Rocker Switch
The CIT Relay and Switch RW2722AAC is a versatile illuminated rocker switch designed for a wide range of industrial and commercial applications. Available in single-pole single-throw (SPST), double-pole single-throw (DPST), and double-pole double-throw (DPDT) configurations, this switch offers flexibility in circuit control. The switch features a durable nylon housing, silver alloy contacts for reliable electrical contact, and various LED illumination options for clear visual indication. It's ideal for applications requiring a robust and user-friendly switching solution.
CIT Relay and Switch RW2722AAC Illuminated Rocker Switch Specifications:
- Electrical Ratings: UL61058-1
- Contact Resistance: ≤ 50mΩ initial
- 20A @ 120VAC: 20A @ 120VAC
- Dielectric Strength: 1500Vrms min
- 16A @ 250VAC: 16A @ 250VAC
- General Purpose: General Purpose
- Insulation Resistance: ≥ 100MΩ min
- 1hp @ 250VAC: 1hp @ 250VAC; 3/4 hp @ 125VAC
- Operating Temperature: -30ºC to +80ºC
- Switch Function: SPST Illuminated, DPST, DPDT
- Electrical Life: 10,000 cycles typical
- Sealing Degree: IP40 IP65 with Sealing Boot
- Housing Material: 6/6 Nylon
- Actuator Material: 6/6 Nylon, PC Illuminated
- Contacts Material: Silver Alloy
- Terminals Material: Brass, Silver Plated
- Lamp Material: Neon or LED
- Reverse Voltage: VR=5V
- Forward Current(avg): IF=30mA
- Reverse Current: IR=10μA
- Power Dissipation: PT=56mW
- Operating & Storage Temperature: TA = -40 ~ +85 Cº
- Forward Voltage(min): VF=1.7V
- Forward Voltage(max): VF=2.4V
- Wavelength(min): λd=620nm
- Wavelength(max): λd=630nm
- Luminous Intensity: LI=500mcd
- Viewing Angle: Θ=70deg
