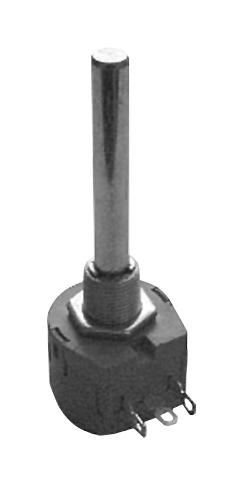

CITEC - TE CONNECTIVITY TW1100KA Wirewound Potentiometer
The TW Series wirewound spindle-operated potentiometer offers 1W power rating, high linearity, and robust construction, suitable for precise low-resistance control in electronics. With resistance ranges from 5 ohms to 20K ohms, it features a mechanical rotation of 265°, wirewound element, and a sealing enclosure for reliability. Operating within -55°C to +125°C, it handles voltages up to 200V DC and a maximum wiper current of 400mA. Ideal for applications requiring high power voltage adjustments and fine linearity, this potentiometer ensures durability and consistent performance in demanding environments.
CITEC - TE CONNECTIVITY TW1100KA Wirewound Potentiometer Specifications:
- Resistance Range: 5Ω to 20KΩ
- Resistance Tolerance: 10%
- Linearity: 2% maximum
- Rated Dissipation at 40°C: 1 Watt
- Maximum Working Voltage: 200V DC
- Electrical Rotation: 265° 25°
- Mechanical Rotation: 285° 25°
- Terminal Resistance: 2 ohms
- Maximum Wiper Current: 400mA
- Temperature Range: -55°C to +125°C
- Temperature Coefficient: 700ppm/°C
- Sealing: Enclosed
- Dimensions: approximately 25mm x 6.35mm x 15mm
- Mechanical Shaft Torque: 35-100 mNm
- Mechanical Endurance: 10,000 operations
Buy the Tyco Series TW Resistance Control: TW1100KA
Purchase the Tyco TW Series wirewound potentiometer online today to ensure high reliability and precise resistance control for your electronic projects. Featuring a 1W power rating, resistance ranges from 5 ohms to 20K ohms, and an operating voltage up to 200V DC, this robust design offers excellent linearity and durability. Its sealed enclosure and mechanical endurance of 10,000 operations guarantee long-lasting performance. Ideal for precise voltage tuning, the TW1100KA suits industrial, instrumentation, and electronic control applications, providing consistent, reliable operation in demanding environments.
Get Tyco TW1100KA high-power wirewound potentiometer today—built for precision, durability, and reliable resistance adjustment in demanding electronic applications.
Frequently Asked Questions
Where can I buy CITEC - TE CONNECTIVITY TW1100KA?
You can click on the BUY or RFQ button to purchase TW1100KA from an authorized CITEC - TE CONNECTIVITY distributor.
How do I troubleshoot issues or seek technical support for part TW1100KA?
You can download the TW1100KA datasheet or visit the CITEC - TE CONNECTIVITY website for support.
Who is the manufacturer of TW1100KA?
CITEC - TE CONNECTIVITY
